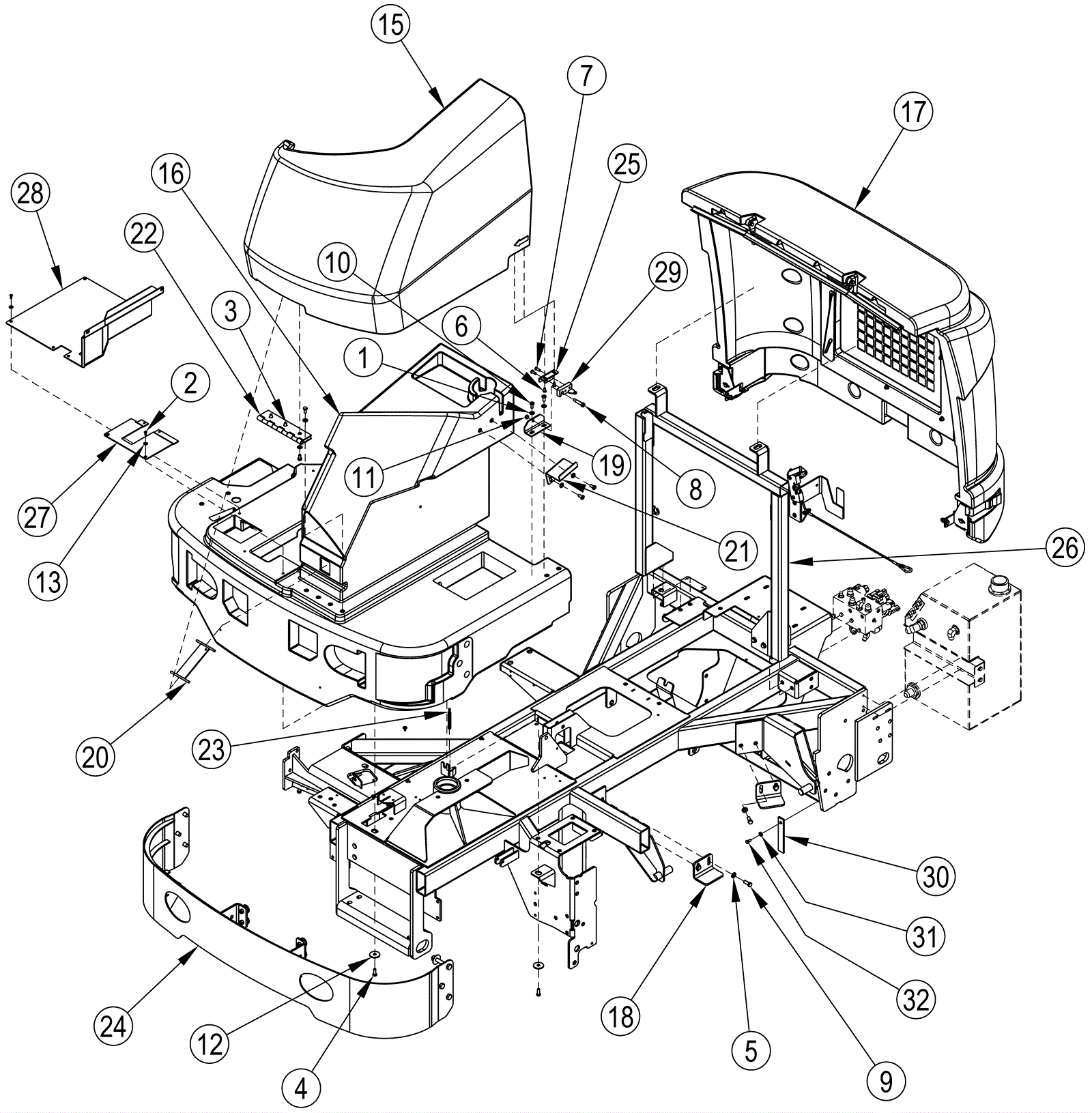

SC8000 Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0024 Washer 5/16 flat stainless steel $1.34 11 ships same day
2 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 8 ships same day
3 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 7 ships same day
4 181-0983 Screw 5/16-18 x 7/8 hex head $12.31 3 usually ships 1-5 days
5 999-0120 Washer 3/8 SAE flat $0.99 4 ships same day
6 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 2 ships same day
7 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel $1.76 2 ships same day
8 172-5131 Screw .38 x 1 1/4 x 5/16-18 socket shoulder $12.31 1 usually ships 17-28 days
9 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 4 ships same day
10 999-0399 Screw 5/16-18 x 3/4 pan head phillips zinc plated $0.99 4 ships same day
11 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
12 272-1513 Washer 13/32 x 1 1/2 x 1/8 flat $10.85 3 usually ships 1-5 days
13 172-2117 Washer 13/64 flat $10.85 8 usually ships 17-28 days
15 272-7592 Front hood $635.45 1 usually ships 1-5 days
16 272-7593 Front floor tank $1,516.41 1 usually ships 1-5 days
17 272-7594 Rear cover assembly $1,990.97 1 usually ships 1-5 days
18 272-7595 Tank stop bracket $21.57 2 usually ships 1-5 days
19 272-7596 Pin support plate $24.60 1 usually ships 1-5 days
20 272-7597 Hood strap weldment $70.47 1 usually ships 1-5 days
21 272-7598 Propane cover support $29.23 1 usually ships 1-5 days
22 272-7599 Hinge cover $120.08 1 usually ships 1-5 days
23 272-7600 Trim $12.31 1 usually ships 1-5 days
24 272-7601 Heavy bumper assembly $1,500.80 1 usually ships 1-5 days
25 272-7602 Latch mount plate $18.38 1 usually ships 1-5 days
26 272-7603 Cover support assembly $984.13 1 usually ships 1-5 days
27 272-7604 Floor plate weldment $51.21 1 usually ships 1-5 days
28 272-7605 Floor weldment $192.01 1 usually ships 1-5 days
29 272-9692 Right hand latch $72.63 1 usually ships 17-28 days
30 272-7606 6 inch static strap $18.38 1 usually ships 1-5 days
31 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
32 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 1 ships same day
