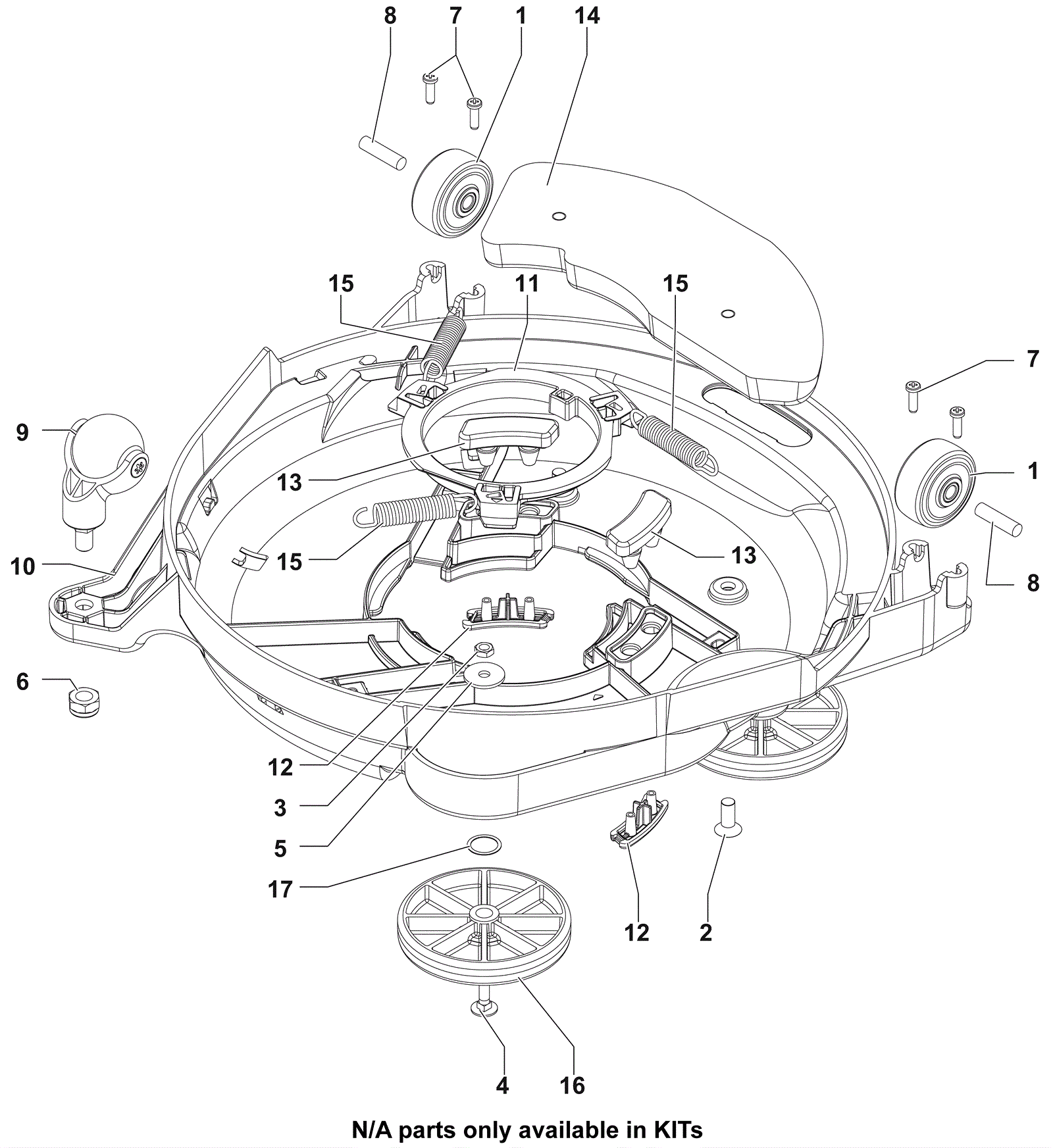

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
272-5476
|
Wheel |
$52.98
|
2 |
|
ships same day |
2 |
999-1648
|
Screw M8-1.25 x 20mm socket head stainless steel |
$2.07
|
2 |
(included in KIT2) |
usually ships 16-20 days |
3 |
N/A
|
Not available |
Call for price
|
2 |
(nut) (only available in KIT2) |
usually ships 3-26 days |
4 |
N/A
|
Not available |
Call for price
|
2 |
(screw M6 x 25) (only available in KIT2) |
usually ships 3-26 days |
5 |
N/A
|
Not available |
Call for price
|
2 |
(washer) (only available in KIT2) |
usually ships 3-26 days |
6 |
N/A
|
Not available |
Call for price
|
1 |
(nut) (only available in KIT2) |
usually ships 3-26 days |
7 |
N/A
|
Not available |
Call for price
|
4 |
(screw 5 x 16) (only available in KIT2) |
usually ships 3-26 days |
8 |
N/A
|
Not available |
Call for price
|
2 |
(pin) (only available in KIT2) |
usually ships 3-26 days |
9 |
272-7398
|
Caster wheel |
$15.17
|
1 |
|
ships same day |
10 |
272-7585
|
Brush deck |
$168.42
|
1 |
|
usually ships 13-18 days |
11 |
272-7586
|
Central flange |
$19.25
|
1 |
|
usually ships 13-18 days |
12 |
N/A
|
Not available |
Call for price
|
2 |
(clutch support) (only available in KIT1) |
usually ships 3-26 days |
13 |
N/A
|
Not available |
Call for price
|
2 |
(clutch) (only available in KIT1) |
usually ships 3-26 days |
14 |
270-1341
|
Counterweight |
$103.32
|
1 |
|
usually ships 13-18 days |
15 |
272-7588
|
Traction spring |
$9.70
|
3 |
|
usually ships 13-18 days |
16 |
572-3483
|
GUIDE WHEEL 2 PCS SET |
$35.75
|
1 |
|
usually ships 13-18 days |
17 |
N/A
|
Not available |
Call for price
|
2 |
(washer) (only available in KIT2) |
usually ships 3-26 days |
N/S |
272-7583
|
Clutch assembly |
$28.94
|
1 |
(includes 12-13) |
ships same day |
N/S |
272-7584
|
Brush deck hardware assembly |
$12.89
|
1 |
(includes 2-8, 17) |
ships same day |
