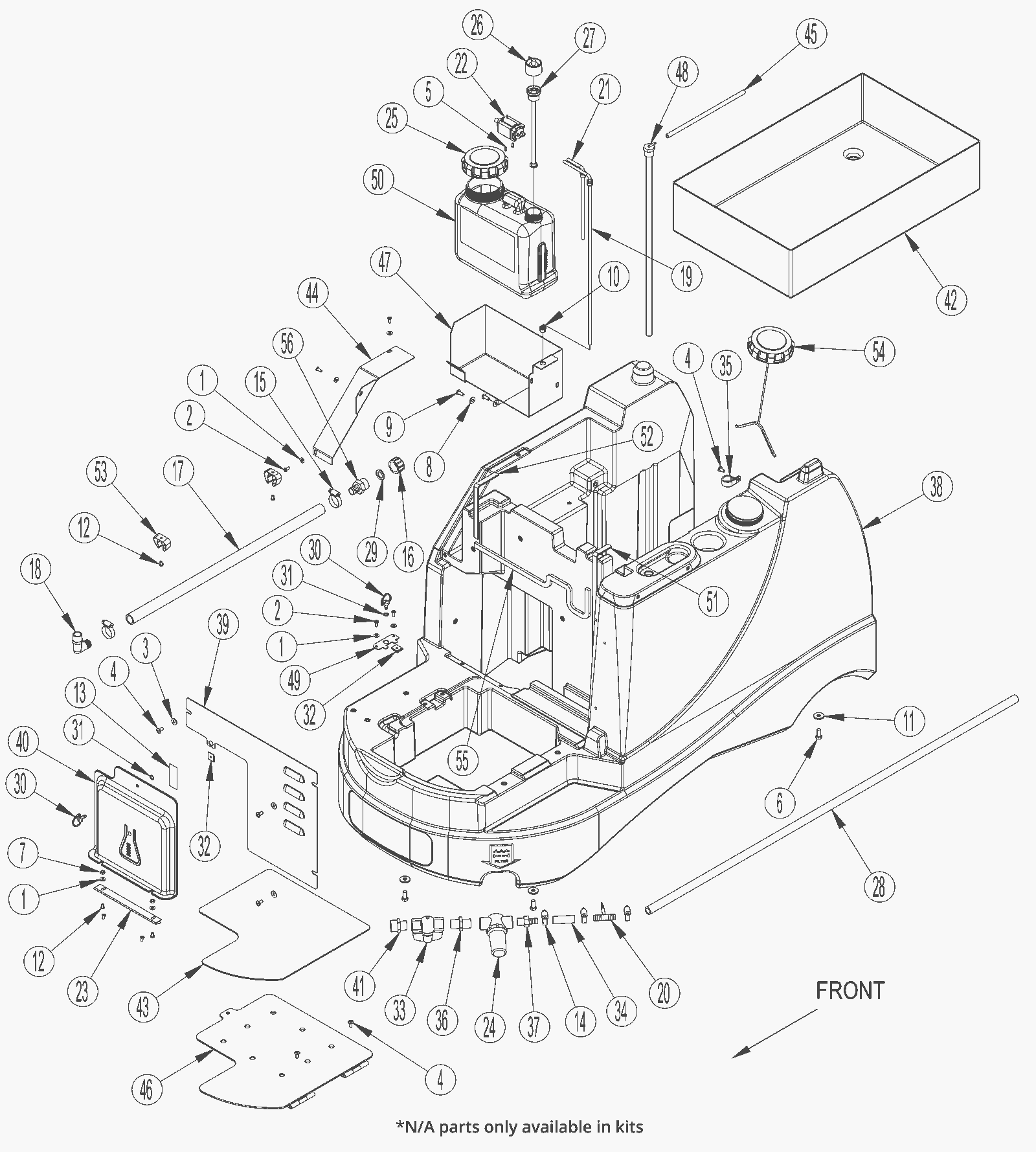

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1862
|
Washer #10 flat SAE stainless steel |
7 |
(included in Kit 21) |
|
2 |
999-0333
|
Screw 10-24 x 1/2 pan head phillips stainless steel |
5 |
(included in Kit 21) |
|
3 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
3 |
(included in Kit 21) |
|
4 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
8 |
(included in Kit 21) |
|
5 |
999-1865
|
Screw 6-32 x 5/16 pan head phillips thread cutting ss |
2 |
(included in Kit 21) |
|
6 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
4 |
(included in Kit 21) |
|
7 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
2 |
(included in Kit 21) |
|
8 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
(included in Kit 21) |
|
9 |
999-0567
|
Screw 1/4-20 x 5/8 pan head phillips stainless steel |
2 |
(included in Kit 21) |
|
10 |
N/A
|
Not available |
3 |
(1/4 bushing) (only available in Kit 21) |
|
11 |
N/A
|
Not available |
4 |
(washer .344 x .938 x .125) (only available in Kit 21) |
|
12 |
999-1866
|
Screw 10-24 x 3/8 pan head phillips nylon stainless steel |
6 |
(included in Kit 21) |
|
13 |
272-9827
|
Chemical ratio decal |
1 |
|
|
14 |
172-8494
|
#6 hose clamp SAE |
3 |
|
|
15 |
997-2005
|
Hose clamp |
2 |
|
|
16 |
172-0254
|
Nylon pipe cap |
1 |
|
|
17 |
272-1410
|
Hose |
1 |
|
|
18 |
272-1448
|
90 degree elbow barb |
1 |
|
|
19 |
472-8346
|
HOSE-CHEMICAL-RESISTANT-34 IN |
1 |
|
|
20 |
272-8135
|
Tee assembly |
1 |
|
|
21 |
272-5404
|
Chemical resistant hose |
1 |
|
|
22 |
272-2175
|
Chemical pump |
1 |
|
|
23 |
272-2171
|
Hinge |
1 |
|
|
24 |
272-2342
|
Solution filter |
1 |
|
|
25 |
272-2180
|
Solution fill cap |
1 |
|
|
26 |
272-2182
|
Dry break cap |
1 |
|
|
27 |
272-2184
|
Dry break insert |
1 |
|
|
28 |
272-7512
|
Hose |
1 |
|
|
29 |
172-0197
|
Rubber washer |
1 |
|
|
30 |
172-8218
|
Fastener |
2 |
|
|
31 |
272-2424
|
Retainer |
2 |
|
|
32 |
272-2426
|
Receptacle |
2 |
|
|
33 |
272-3640
|
Ball valve |
1 |
|
|
34 |
172-1868
|
PVC hose |
1 |
|
|
35 |
172-1154
|
P clamp |
3 |
|
|
36 |
172-2099
|
Nipple |
1 |
|
|
37 |
172-9027
|
Adapter barb NPT |
1 |
|
|
38 |
272-3641
|
Solution tank |
1 |
|
|
39 |
272-3642
|
Panel |
1 |
|
|
40 |
272-3643
|
Chemical bottle cover |
1 |
|
|
41 |
272-3644
|
Reducer nipple |
1 |
|
|
42 |
272-8863
|
Battery box |
1 |
|
|
43 |
272-8864
|
Mat |
1 |
|
|
44 |
272-3646
|
Plate |
1 |
|
|
45 |
272-6376
|
Hose |
1 |
|
|
46 |
272-8865
|
Charger cover weldment |
1 |
|
|
47 |
272-6377
|
Bracket |
1 |
|
|
48 |
272-3648
|
Pressure sensing tube with elbow |
1 |
|
|
49 |
272-6378
|
Plate |
1 |
|
|
50 |
272-9832
|
Chemical bottle assembly |
1 |
|
|
51 |
272-8868
|
Gasket |
1 |
|
|
52 |
272-8869
|
Gasket |
1 |
|
|
53 |
272-3638
|
Hose clip |
2 |
|
|
54 |
272-9352
|
Raw cap with tether |
1 |
|
|
55 |
272-8871
|
Gasket |
1 |
|
|
56 |
170-0264
|
Hose barb |
1 |
|
|
Kit 21 |
272-7511
|
Solution system hardware assembly |
1 |
(inlcudes 1-12) |
|
