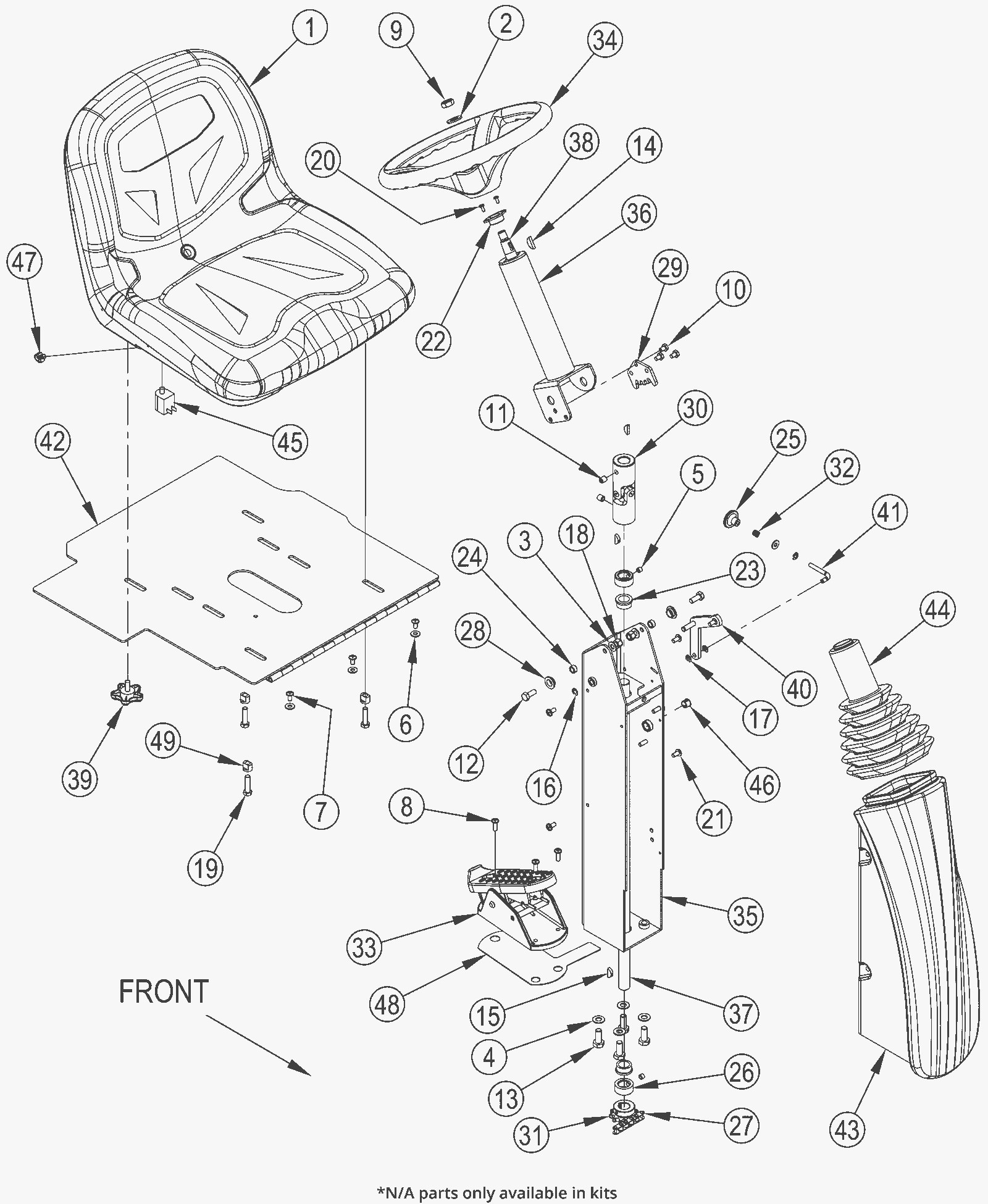

ES4000 Control System Assembly

#PartDescriptionPriceReqNotesAvailability
1 172-3430 Seat kit $264.04 1 usually ships 16-41 days
2 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
3 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
4 999-0120 Washer 3/8 SAE flat $0.99 4 ships same day
5 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish $0.99 2 ships same day
6 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
7 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 3 ships same day
8 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel $1.76 3 ships same day
9 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated $0.99 1 ships same day
10 272-1538 Bolt 1/4-20 X 3/8 hex head lock $12.31 3 usually ships 1-5 days
11 999-1373 Screw 3/8-16 x 3/8 socket set lock stainless steel $6.34 2 usually ships 1-5 days
12 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 2 ships same day
13 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 4 ships same day
14 172-2573 Woodruff key $12.31 1 usually ships 1-5 days
15 172-9387 Woodruff key $12.31 3 usually ships 16-41 days
16 172-0294 Retaining ring $12.31 1 usually ships 16-41 days
17 172-0392 Retaining ring $10.85 3 usually ships 16-41 days
18 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
19 999-0829 Screw 5/16-18 x 1 1/4 hex head plain finish $0.99 3 ships same day
20 999-1131 Screw 8-32 x 3/8 pan head phillips thread rolling SS $0.99 2 ships same day
21 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc $0.99 4 ships same day
22 172-9057 Bushing $18.38 1 usually ships 1-5 days
23 172-9388 Flanged bearing $13.76 2 usually ships 16-41 days
24 172-4008 Bushing $33.43 2 ships same day
25 172-3176 Knob 1 1/4 x 1/4 - 28 $13.76 1 usually ships 16-41 days
26 172-0115 Shaft collar $29.23 2 usually ships 16-41 days
27 172-9068 Roller chain $70.47 1 ships same day
28 272-9481 Flanged bearing $15.48 2 usually ships 16-41 days
29 272-9480 Steering column ratchet $12.31 1 usually ships 16-41 days
30 172-9074 Universal joint $238.01 1 usually ships 1-5 days
31 172-8093 Sprocket $95.66 1 usually ships 16-41 days
32 172-4528 Spring $13.76 1 usually ships 16-41 days
33 272-8880 Foot pedal assembly $268.38 1 usually ships 16-41 days
34 272-8887 Steering wheel $126.03 1 usually ships 16-41 days
35 272-6336 Lower column weldment $475.30 1 usually ships 1-5 days
36 272-8889 Upper column weldment $160.86 1 usually ships 16-41 days
37 272-8890 Lower steering shaft $41.54 1 usually ships 1-5 days
38 272-8891 Upper steering shaft $55.56 1 usually ships 1-5 days
39 272-8881 Knob $12.31 1 usually ships 1-5 days
40 272-3517 Steering pawl weldment $63.07 1 usually ships 16-41 days
41 272-8892 Pull lever $15.48 1 usually ships 16-41 days
42 272-3558 Seat panel weldment $284.00 1 usually ships 1-5 days
43 272-8893 Lower column shroud $215.00 1 usually ships 16-41 days
44 272-8894 Steering boot $54.11 1 usually ships 1-5 days
45 272-9417 Seat switch $23.01 1 usually ships 16-41 days
46 272-8774 Cap plug $12.31 1 usually ships 1-5 days
47 272-2177 Conduit clip $12.31 1 usually ships 16-41 days
48 272-8882 Foot pedal plate $13.17 1 usually ships 1-5 days
49 272-6337 Flanged bushing $12.31 3 usually ships 1-5 days
