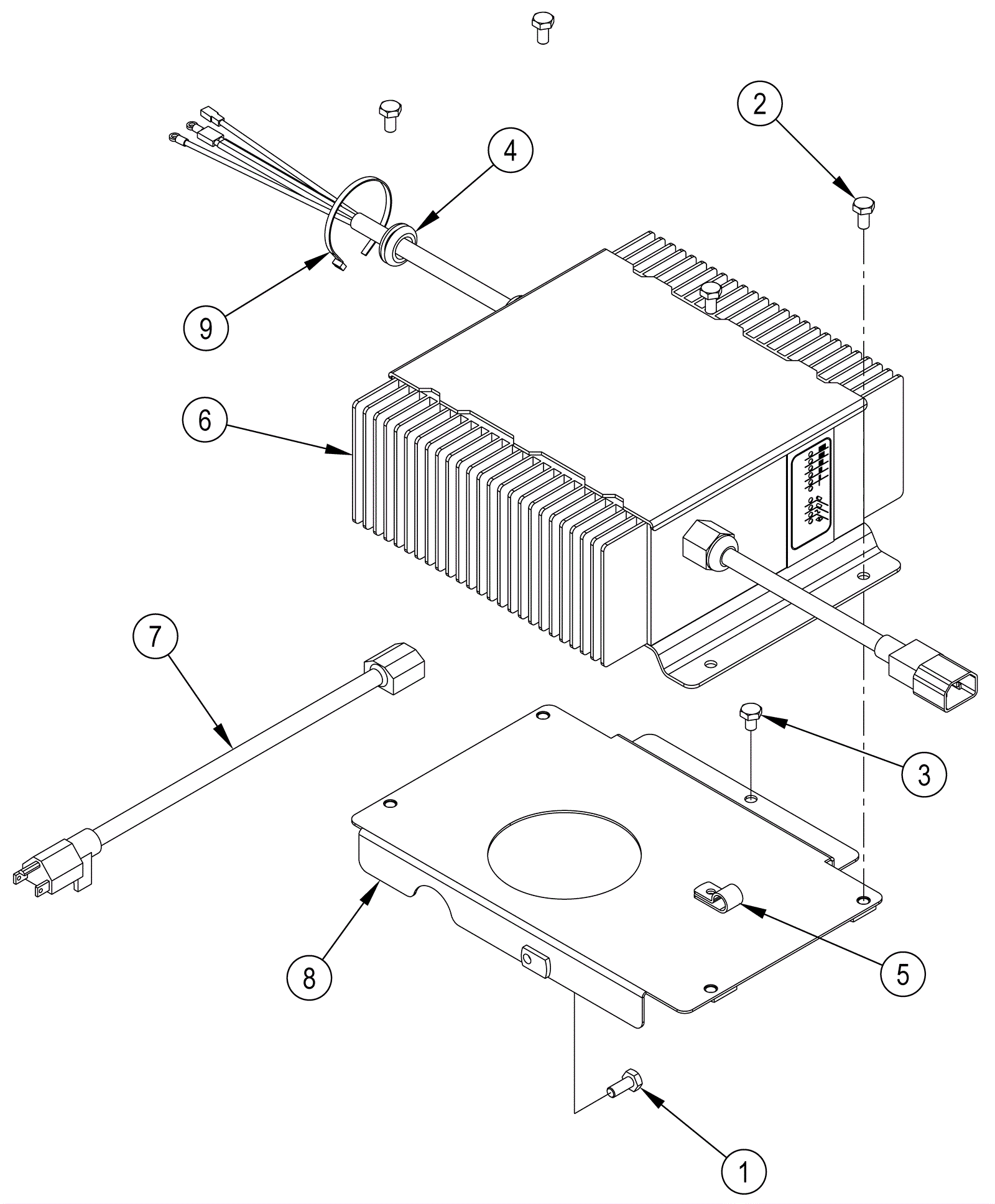

ES4000 Onboard Charger Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 1 ships same day
2 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 4 ships same day
3 999-0360 Screw 1/4-20 x 3/8 hex head thread rolling unslotted $0.99 1 ships same day
4 172-0343 Grommet $12.31 1 usually ships 16-41 days
5 272-8806 P clamp $12.31 1 usually ships 1-5 days
6 272-2358 24V onboard battery charger $1,262.06 1 usually ships 16-41 days
7a 272-2225 Onboard charger cord $31.10 1 (OEM) ships same day
7b 991-8566 Onboard battery charger power cord $9.61 1 (NON-OEM) ships same day
8 272-8817 Charger mounting bracket $55.56 1 usually ships 16-41 days
9 372-2096 Cable tie $12.31 1 usually ships 16-41 days
