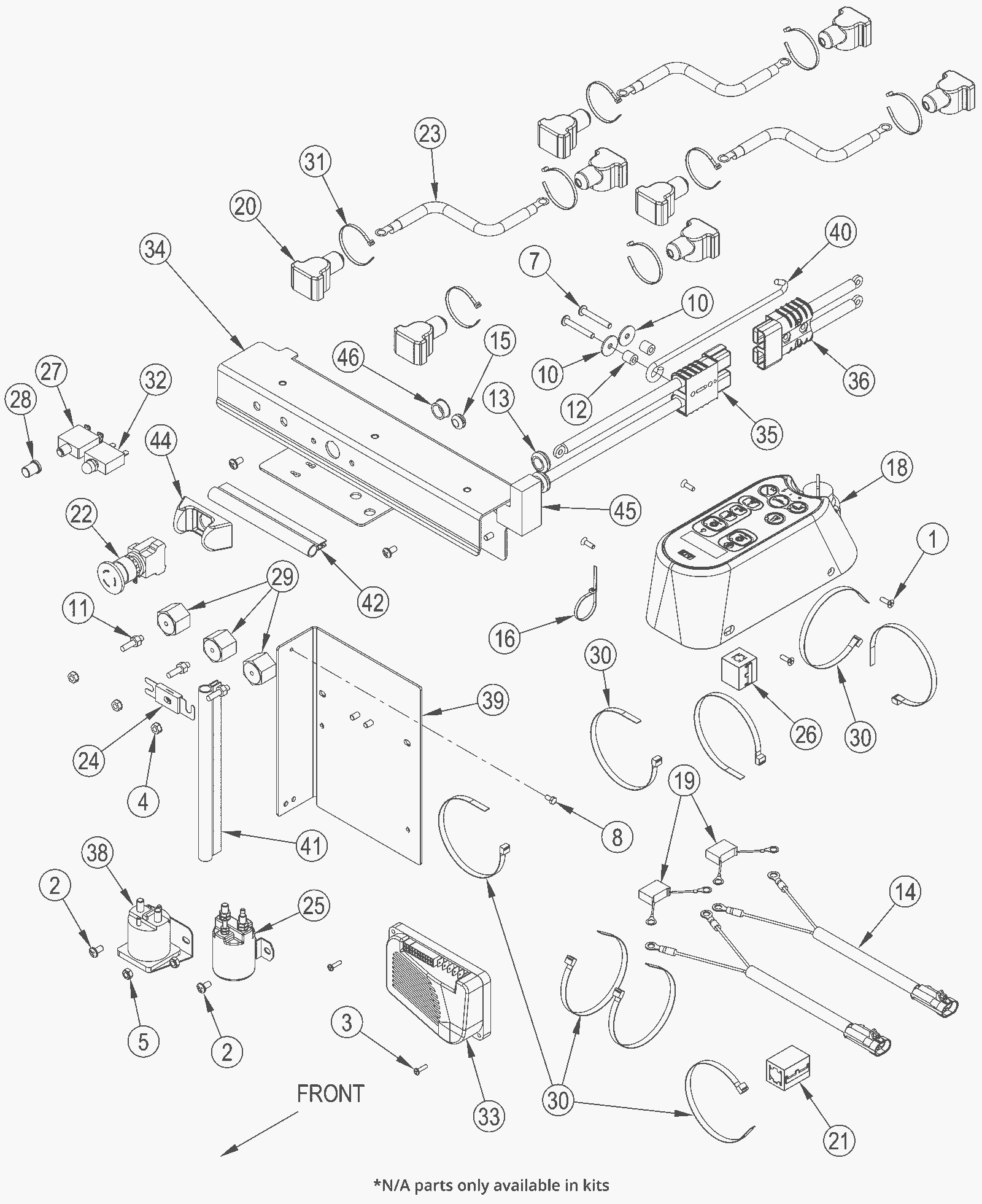

ES4000 Electrical System Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0643 Screw 10-24 x 5/8 flat head phillips stainless steel $0.99 4 (included in Kit 22) ships same day
2 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 4 (included in Kit 22) ships same day
3 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel $0.99 2 (included in Kit 22) ships same day
4 N/A Not available Call for price 3 (nut 1/4-20 hex) (only available in Kit 22) usually ships 3-26 days
5 N/A Not available Call for price 2 (nut 1/4-20 hex thin nylock) (only available in Kit 22) usually ships 3-26 days
7 999-0599 Screw 1/4-20 x 1 3/4 pan head phillips stainless steel $1.21 2 (included in Kit 22) ships same day
8 N/A Not available Call for price 1 (screw 10-24 x 3/8 hex head) (only available in Kit 22) usually ships 3-26 days
10 N/A Not available Call for price 2 (washer .260 x 1 x .074 flat stainless steel) (only available in Kit 22) usually ships 3-26 days
11 N/A Not available Call for price 3 (1/4-20 stud) (only availabale in Kit 22) usually ships 3-26 days
12 181-0421 Spacer $13.76 2 usually ships 1-5 days
13 172-0343 Grommet $12.31 2 usually ships 16-41 days
14 272-2149 Brush harness $49.63 2 usually ships 16-41 days
15 172-1228 Grommet $10.85 1 usually ships 1-5 days
16 172-6196 Cable tie $12.31 1 usually ships 1-5 days
18 372-3326 Control board kit $1,433.37 1 usually ships 16-41 days
19 N/A Not available Call for price 2 (capacitor assembly) usually ships 3-26 days
20 172-0223 Battery cable boot $9.26 8 ships same day
21 272-7500 Ferrite bead $34.87 1 usually ships 1-5 days
22 172-9233 Emergency stop button $268.38 1 usually ships 16-41 days
23 172-8828 Battery cable $48.18 3 ships same day
24a 172-8836 150amp fuse $19.67 1 usually ships 16-41 days
24b 991-3061 150amp fuse $48.06 1 (NON-OEM) ships same day
25a 172-2163 24V solenoid 4 post (2 large 2 small) $126.03 1 ships same day
25b 991-1226 24V solenoid 4 post (2 large 2 small) $54.00 1 (NON-OEM) usually ships 6-7 days
26 272-9765 Ferrite bead $26.20 1 usually ships 1-5 days
27a 172-2523 70amp circuit breaker $118.65 1 usually ships 1-5 days
27b 991-1633 70amp circuit breaker $57.60 1 (NON-OEM) usually ships 3-19 days
28 172-0232 Clear boot cap $34.87 1 usually ships 16-41 days
29 172-0103 Electrical mount $13.76 3 usually ships 1-5 days
30 997-2102 Cable tie $1.24 10 ships same day
31 372-2096 Cable tie $12.31 8 usually ships 16-41 days
32 272-9374 10amp circuit breaker $24.60 1 ships same day
33 272-3514 Speed control $811.94 1 usually ships 16-41 days
34 272-6349 Panel $134.98 1 usually ships 1-5 days
35 272-8791 Connector assembly $72.63 1 usually ships 16-41 days
36 272-8792 Connector assembly $92.03 1 usually ships 16-41 days
38 272-8794 24V contactor $93.46 1 usually ships 16-41 days
39 272-3570 Panel $57.16 1 usually ships 1-5 days
40 272-8795 Seat rod $12.31 1 usually ships 1-5 days
41 272-8796 Gasket $12.31 1 usually ships 1-5 days
42 272-8797 Gasket $12.31 1 usually ships 1-5 days
44 272-8799 Emergency button guard $12.31 1 usually ships 1-5 days
45 272-8800 Foam insert $12.31 1 usually ships 1-5 days
46 172-2306 Cap plug $12.31 1 usually ships 1-5 days
N/S 272-7498 Main harness $1,102.63 1 usually ships 1-5 days
N/S 272-6625 Traction harness $152.05 1 usually ships 16-41 days
N/S 272-8798 Cable assembly $32.69 1 usually ships 1-5 days
Kit 22 N/A Not available Call for price 1 (electrical system hardware kit) (includes 1-11) usually ships 3-26 days
