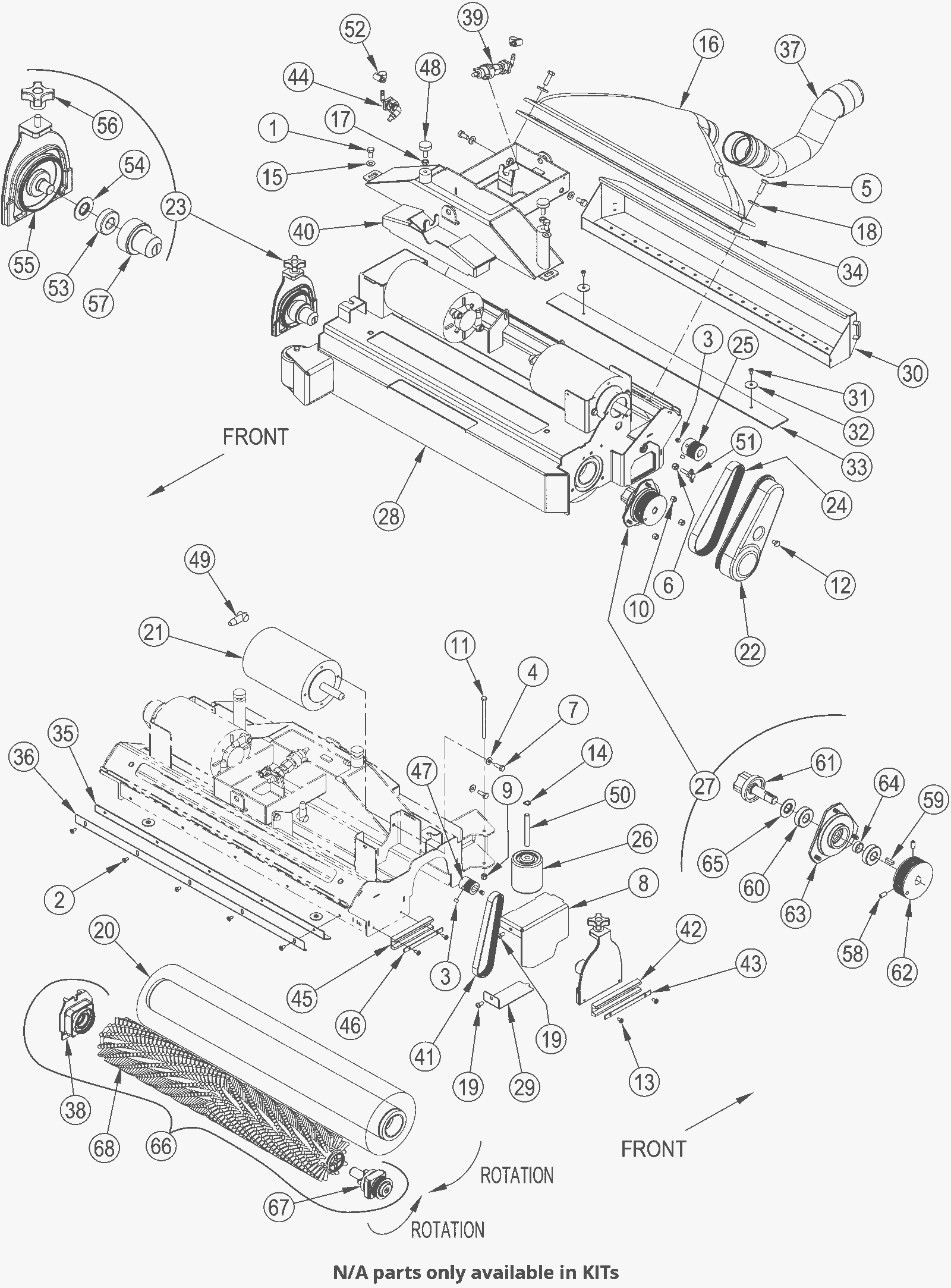

Deck System Assembly

#PartDescription ReqNotesAvailability
2 999-0571 Screw 10-24 x 3/8 pan head phillips stainless steel 5 (included in Kit 7)
3 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish 4 (included in Kit 20)
4 999-0123 Washer 1/4 SAE flat zinc plated 6 (included in Kit 20)
5 999-1857 Screw 5/16-18 x 1 hex cap stainless steel 2 (included in Kit 20)
6 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 1 (included in Kit 20)
7 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 8 (included in Kit 20)
8 272-7478 Belt guard 1
9 999-0497 Nut M6-1 nylon insert lock stainless steel 1 (included in Kit 8)
10 999-0497 Nut M6-1 nylon insert lock stainless steel 3 (included in Kit 20)
11 999-1169 Bolt M6-1 x 100mm hex head full thread plain finish 1 (included in Kit 8)
12 N/A Not available 1 (screw 1/4-20 x 3/8 hex head) (only available in Kit 20)
13 999-0571 Screw 10-24 x 3/8 pan head phillips stainless steel 4 (included in Kit 9)
14 N/A Not available 2 (washer 3/8 x 37/64 bowed) (only available in Kit 20)
15 N/A Not available 4 (internal washer 5/16) (only available in Kit 20)
16 472-7085 TUBE INTAKE 1
17 999-1019 Nut 5/16-18 hex jam stainless steel 2 (included in Kit 20)
18 N/A Not available 2 (flat washer) (only available in Kit 20)
19 999-1496 Screw 1/4-20 x 1/2 button head socket stainless steel 2 (included in Kit 20)
20 272-6613 28 inch multi surface brush 1
21a 272-2148 24V brush motor 2
21b 172-8948 Brush cap assembly 1
21c 172-8951 Carbon brush and spring kit 1
21d N/A Not available 4 (brush assembly)
21e N/A Not available 4 (brush spring)
22 272-2152 Belt cover 1
23 172-3373 Idler end assembly 1 (includes 53-57)
24 272-8576 Belt 1
25 272-9344 Sheave 1
26 N/A Not available 1 (wheel) (only avaiable in Kit 8)
27 272-9336 Drive end assembly 1 (includes 58-65)
28 272-7479 Deck weldment 1
29 472-7079 BRACKET - BELT COVER 1
30 N/A Not available 1 (hopper weldment) (only available in Kit 18)
31 999-0571 Screw 10-24 x 3/8 pan head phillips stainless steel 2 (included in Kit 18)
32 172-0548 Washer 17/64 x 47/64 flat stainless steel 2 (included in Kit 18)
33 272-7376 Blade hopper 1 (included in Kit 18)
34 272-7480 Intake gasket 1
35 N/A Not available 1 (rear deflector) (only available in Kit 7)
36 472-7087 CLAMPING BAR 1
37 272-7481 Molded hose 1
38 272-7482 Brush bearing end cover assembly 1
39a 272-7483 Maintenance nozzle assembly 1
39b 272-7484 Spray nozzle 1
40 272-7485 Deck weldment bracket 1
41 272-7436 Tension belt 1
42 N/A Not available 1 (bumper) (only available in Kit 9)
43 N/A Not available 1 (bumper retainer) (only available in Kit 9)
44a 272-7486 Restoration nozzle assembly 1
44b 272-7487 Spray nozzle 1
45 N/A Not available 1 (bumper) (only available in Kit 9)
46 N/A Not available 1 (bumper retainer) (only available in Kit 9)
47 272-7488 Sheave 1
48 172-2503 Tank leveler 2
49 172-9147 Terminal insulator 4
50 N/A Not available 1 (bushing) (only available in Kit 8)
51 272-8789 T-knob assembly 1
52 170-5169 Hose clamp SAE #4 2
53 172-4656 Ball bearing 1
54 172-1837 Bearing washer 1
55 272-2170 Idler bearing plate 1
56 172-2150 Knob 1
57 172-1838 Hub 1
58 181-0003 Screw 1/4-20 x 1/2 socket set lock 2
59 172-8956 Square keyway 1
60 172-4656 Ball bearing 2
61 272-9347 Spindle 1
62 272-9346 Sheave 1
63 272-2169 Bearing plate 1
64 172-8957 Spacer 1
65 172-1837 Bearing washer 1
66 472-7804 BRUSH ASSEMBLY MULTI-SURFACE 1 (includes screw, brush drive hub, bearing ball, spindle, washer bearing, plug bearing, and multi-surface brush)
67 272-7437 Spindle assembly 1
68 272-7474 Brush assembly 1
N/S 272-7489 Screw mount magnet 1 (included in Kit 18)
N/S 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 1 (included in Kit 18)
N/S 999-1859 Screw 6-32 x 3/8 flat head phillips stainless steel 1 (included in Kit 18)
Kit 7 272-7472 Rear deflector assembly 1 (includes 2, 35, 36)
Kit 8 472-7098 BUMPER WHEEL KIT 1 (includes 9, 11, 26, 50)
Kit 9 272-7473 Bumper kit assembly 1 (includes 13, 42-43, 45-46)
Kit 14 272-7475 Bearing assembly 1
Kit 18 272-7476 Hopper assembly 1 (includes 30-33)
Kit 20 272-7477 Scrub system hardware assembly 1 (includes 1, 3-7, 10, 12, 14-15, 17-19)
