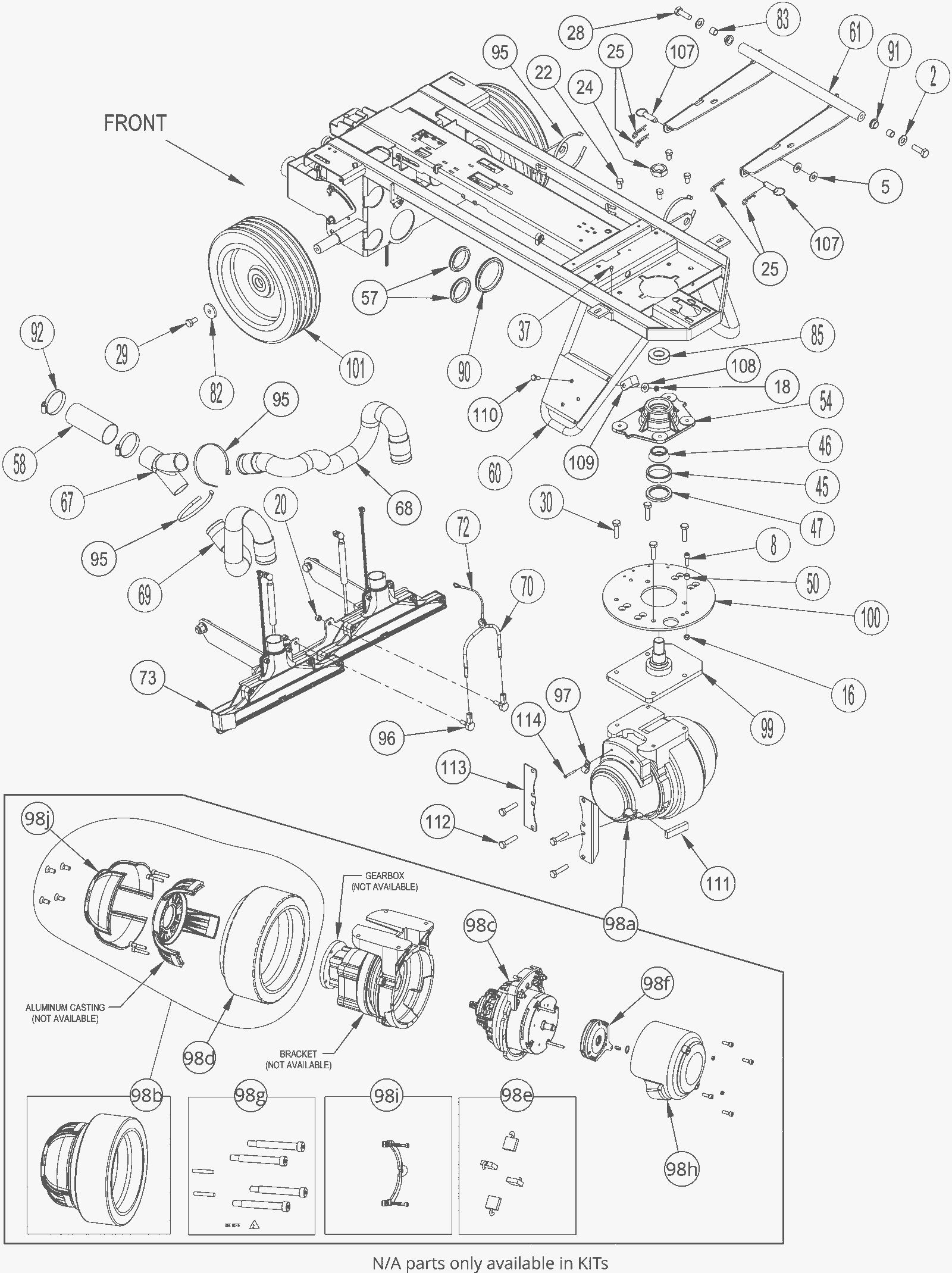

Chassis Assembly - 1

#PartDescription ReqNotesAvailability
2 999-0114 Washer 1/2 SAE flat 2 (included in Kit 1)
5 999-9128 Washer 3/8 SAE flat stainless steel 2 (included in Kit 1)
8 N/A Not available 1 (screw 5/16-18 x 1 socket head) (only available in Kit 4)
16 999-0423 Nut 5/16-18 nylon insert lock stainless steel 1 (included in Kit 4)
18 999-0304 Nut 1/4-20 nylon lock jam stainless steel 2 (included in Kit 4)
20 999-0296 Nut 5/16-24 nylon insert lock stainless steel 2 (included in Kit 4)
22 999-1845 Screw 3/8-16 x 5/8 hex head stainless steel 4 (included in Kit 2 and Kit 4)
24 999-1867 Nut 1-14 hex lock zinc finish 1 (included in Kit 4)
25 272-7446 Deck linkage hardware assembly 6 (cotter hair pin) (only availble in Kit 1 and Kit 4)
28 999-0504 Bolt M12-1.75 x 35mm hex hd stainless steel full thread 2 (included in Kit 1)
29 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel 2 (included in Kit 4)
30 999-0775 Screw M10-1.5 x 40mm hex head stainless steel 4 (included in Kit 4)
37 N/A Not available 2 (screw 10-24 x 3/8 hex head) (only available in Kit 4)
45 N/A Not available 1 (bearing cup) (only available in Kit 2 and Kit 3)
46 N/A Not available 1 (bearing cone) (only available in Kit 2 and Kit 3)
47 N/A Not available 1 (shaft seal) (only available in Kit 2 and Kit 3)
50 172-0068 Bushing 1
54 N/A Not available 1 (bearing block) (only available in Kit 2)
57 172-2292 Grommet 2
58 172-2349 Hose 1
60 272-7450 Chassis weldment 1
61 472-7082 DECK LINKAGE WELDMENT 1
67 272-7451 Y-tube 1
68 272-6581 Hose assembly 1
69 272-7373 Hose assembly 1
70 272-7452 Lift bar 1
72 272-7453 Wire rope assembly 1
73 372-2613 Shoe linkage assembly 1
82 272-1606 Washer flat 2
83 N/A Not available 2 (bushing) (only available in Kit 1)
85 N/A Not available 1 (ball bearing) (only available in Kit 2 and Kit 3)
90 N/A Not available 1 (grommet) (only available in Kit 5)
91 N/A Not available 2 (flange bearing) (only available in Kit 1)
92 272-9976 #32 hose clamp SAE 4
95 997-2102 Cable tie 4
96 172-2679 Rod end 2
97 172-2122 P clamp 1
98a 272-8807 Drive wheel motor 1 (includes 98b-98j)
98b 272-5562 Tire with hub 1
98c 272-8808 Replacement drive motor 1
98d 272-8809 Tire 1
98e 272-8810 Carbon brush kit 1
98f 272-8811 Parking brake 1
98g 272-8604 Tire puller kit 1
98h 272-8598 Drive motor cover 1
98i 272-8813 Brake lever kit 1
98j 272-8597 Gearbox motor cover 1
99 272-8814 Spindle weldment 1
100 172-3320 Steering plate 1
101 172-3283 Wheel and bearing assembly 2
107 N/A Not available 2 (ring pin) (only available in Kit 1)
108 999-0024 Washer 5/16 flat stainless steel 1
109 172-8870 P clamp 1
110 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 1
111 N/A Not available 1 (gasket strip)
112 272-1612 Bolt 10mm-1.50 x 45mm hex nylon locking 4
113 272-6334 Wheel bracket 2
114 172-4211 Screw M4 x 40 cylinder head stainless steel 1
N/S 272-3726 Pump head assembly 1 (for 272-7455)
N/S 472-4392 CHECK VALVE ASSY 1 (for 272-7455)
N/S 272-7463 Quick jet body and nozzle 1
Kit 1 272-7446 Deck linkage hardware assembly 1 (includes 2, 5, 25, 28, 83, 91, 107)
Kit 2 272-7447 Bearing block assembly 1 (includes 22, 45-47, 54, 85)
Kit 3 N/A Not available 1 (includes 45-47, 85) (spindle bearing kit)
Kit 4 272-7448 Chassis hardware assembly 1 (includes 8, 16, 18, 20-22, 24-24, 29-30, 37)
Kit 5 272-7449 Deck lift hardware assembly 1 (includes 90)
