| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

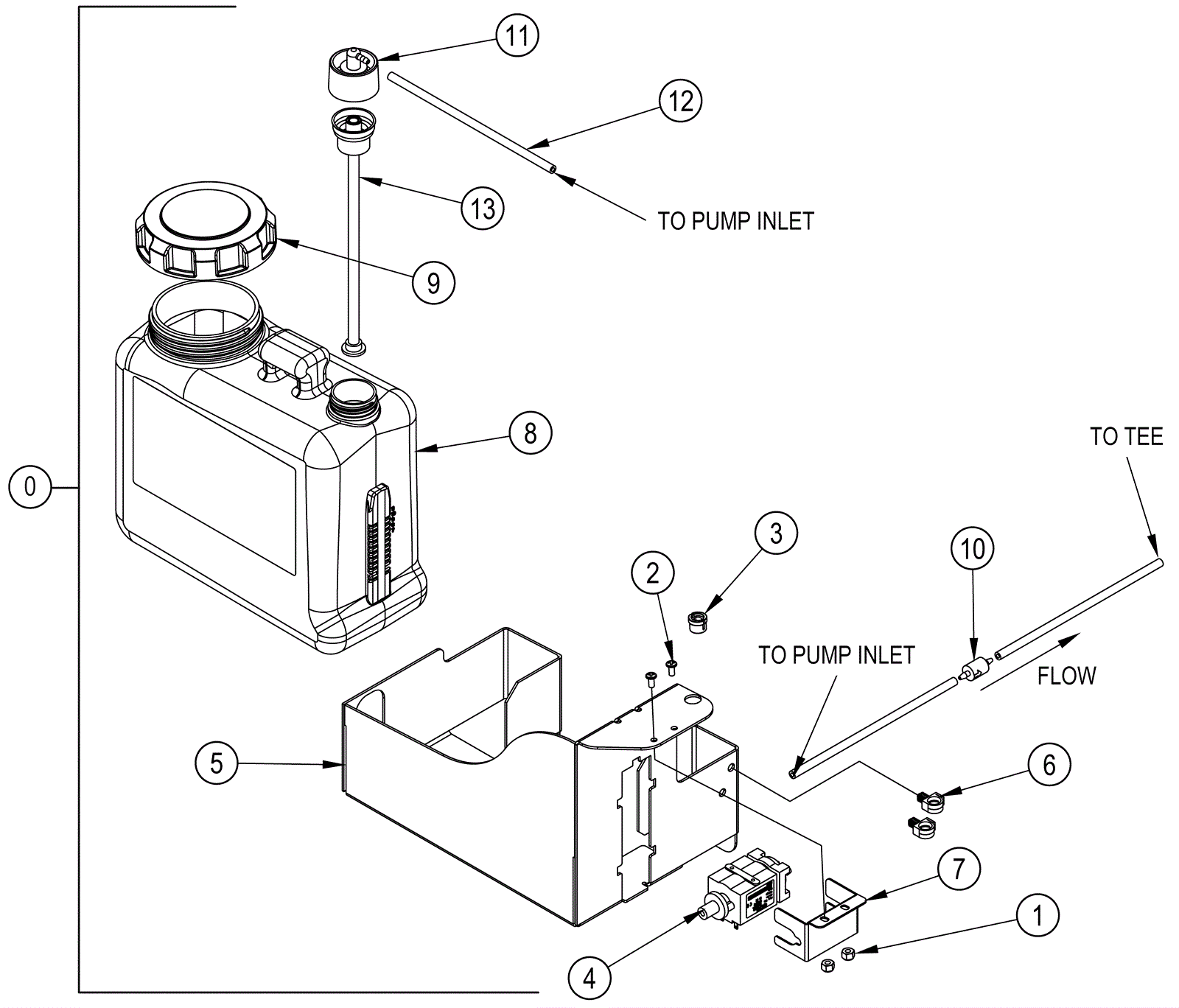

172-8497
|
Chemical tank assembly |
1 |
(includes 1-13) |
|
1 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
2 |
|
|
2 |
999-1131
|
Screw 8-32 x 3/8 pan head phillips thread rolling SS |
2 |
|
|
3 |
272-2174
|
Snub bushing |
1 |
|
|
4 |
272-2175
|
Chemical pump |
1 |
|
|
5 |
272-2185
|
Tank mounting bracket |
1 |
|
|
6 |
272-2177
|
Conduit clip |
2 |
|
|
7 |
272-2178
|
Chemical pump bracket |
1 |
|
|
8 |
272-9832
|
Chemical bottle assembly |
1 |
|
|
9 |
272-2180
|
Solution fill cap |
1 |
|
|
10 |
272-2181
|
Check valve |
1 |
|
|
11 |
272-2182
|
Dry break cap |
1 |
|
|
12 |
272-2183
|
7 inch chemical resistant hose |
3 |
|
|
13 |
272-2184
|
Dry break insert |
1 |
|
|
