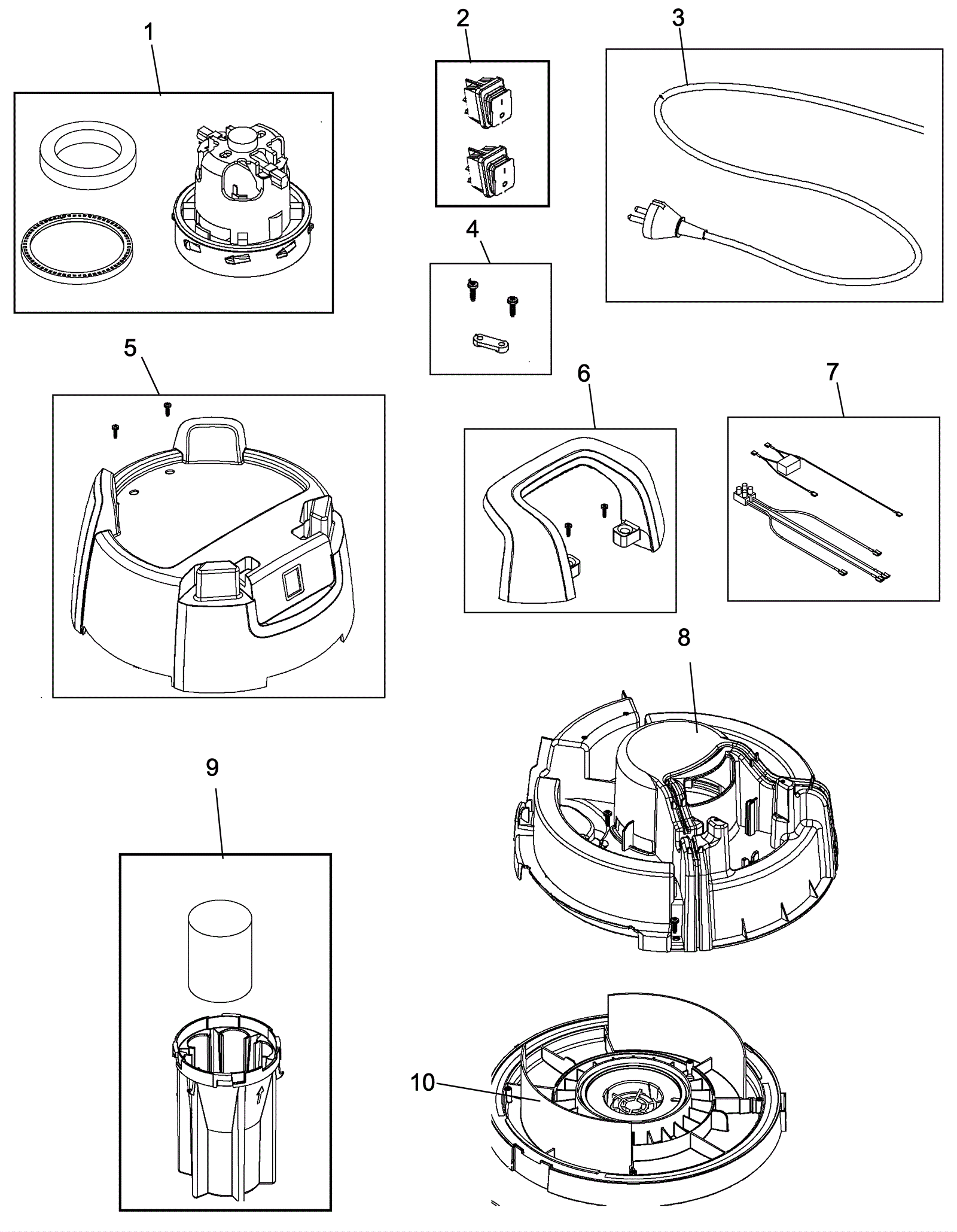

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
272-0001
|
120V 1 stage vacuum motor assembly (includes gaskets) |
1 |
|
|
1b |
272-6781
|
Gasket |
|
|
|
2 |
272-0112
|
Rocker switch |
2 |
|
|
3 |
272-0113
|
16/3 power cord 50 foot |
1 |
|
|
4 |
272-0115
|
Anti strain clip |
1 |
(Screws included) |
|
5 |
272-2050
|
Upper cover |
1 |
(Screws included) |
|
6 |
272-2051
|
Handle (OBSOLETE) |
1 |
(Screws included) |
|
7 |
272-0135
|
Internal wires (OBSOLETE) |
1 |
|
|
8 |
272-1230
|
Vacuum motor cover (OBSOLETE) |
1 |
|
|
9 |
272-1231
|
Float cage assembly |
1 |
|
|
10 |
272-1232
|
Fan unit bottom chassis |
1 |
|
|
