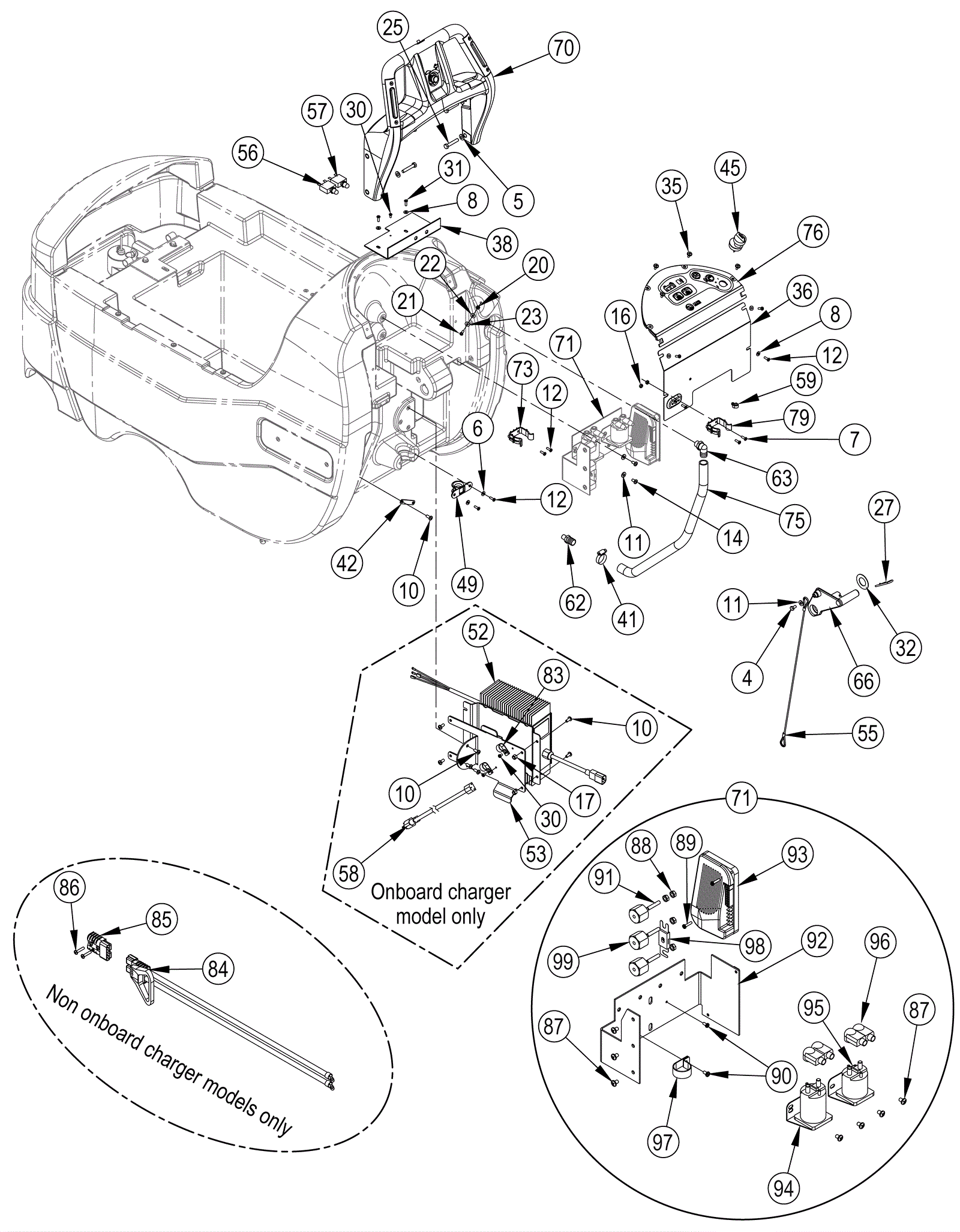

WARRIOR 34RST Solution and Electrical Assembly 2 - EcoFlex

#PartDescriptionPriceReqNotesAvailability
4 999-1532 Screw 1/4-20 x 1/2 hex head stainless steel $0.99 1 ships same day
5 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
6 999-1862 Washer #10 flat SAE stainless steel $0.99 2 ships same day
7 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 2 ships same day
8 999-0998 Washer #10 flat stainless steel $0.99 6 ships same day
10 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 8 (for model 56381031 only) ships same day
11 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 ships same day
12 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 8 ships same day
14 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 5 ships same day
16 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.31 1 ships same day
17 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 (for model 56381031 only) ships same day
20 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
21 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 1 ships same day
22 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
23 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
25 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel $1.63 4 ships same day
27 172-3483 Cotter pin $11.99 1 usually ships 16-41 days
30 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc $0.99 3 (for model 56381031 only) ships same day
31 999-1369 Screw 10-24 x 1/2 hex head thread cutting stainless steel $0.99 2 ships same day
32 172-4968 Washer 1.031 x 1.859 x .048 flat $21.27 1 usually ships 16-41 days
35 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 4 ships same day
36 272-9350 Electrical panel $51.28 1 usually ships 16-41 days
38 272-9351 Circuit breaker plate $25.36 1 usually ships 1-5 days
41 997-2005 Hose clamp $2.15 5 ships same day
42 272-2227 Plate $46.76 1 usually ships 1-5 days
45 272-2195 Key switch assembly $89.61 1 usually ships 16-41 days
49 272-2200 Cable guide $11.99 1 ships same day
52a 172-0059 36V onboard charger $1,260.58 1 usually ships 16-41 days
52b 272-8198 Thermistor repair kit $33.13 1 (for part # 172-0059) usually ships 1-5 days
53 272-2226 Charger bracket $85.24 1 (for model 56381031 only) usually ships 16-41 days
55 272-2207 Cable assembly $19.45 1 usually ships 16-41 days
56 991-1628 5amp circuit breaker $13.40 1 usually ships 16-41 days
57 272-2209 30amp circuit breaker $13.40 1 ships same day
58a 272-2225 Onboard charger cord $30.28 1 (for model 56381031 only) (OEM) usually ships 16-41 days
59 272-2177 Conduit clip $11.99 1 usually ships 16-41 days
62 272-2215 Adapter barb 3/4 x 1/2 $11.99 2 usually ships 16-41 days
63 272-2218 90 degree elbow barb 3/4 x 3/8 $11.99 1 usually ships 16-41 days
66 272-8453 Squeegee lift lever $23.95 1 usually ships 16-41 days
70 272-8181 Handle assembly $1,371.88 1 ships same day
71 272-8182 Electrical box assembly $770.00 1 (includes 87-99) usually ships 1-5 days
73 272-0547 Plastic clamp $22.41 1 ships same day
75 172-8496 PVC hose $9.90 1 ships same day
76 172-8491 Control panel kit $1,047.45 1 usually ships 1-5 days
79 272-1317 Plastic clamp $25.36 1 ships same day
83 172-2122 P clamp $11.99 2 (for model 56381031 only) usually ships 16-41 days
84 272-1435 Charger connector assembly - to batteries $186.96 1 (for off board charger models) (for model 56381029 only) ships same day
85 272-2219 Charger connector assembly - to machine $79.45 1 (for off board charger models) (to electrical box) (for model 56381029 only) usually ships 16-41 days
86 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel $1.07 2 (for off board charger models) (for model 56381029 only) ships same day
87 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated $0.99 7 ships same day
88 999-0609 Nut 1/4-20 hex stainless steel $0.99 4 ships same day
89 999-1130 Screw 8-32 x 3/4 pan head phillips thread rolling zinc $0.99 2 ships same day
90 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc $0.99 2 ships same day
91 172-0346 Stud 1/4-20 $11.99 3 ships same day
92 272-2331 Electrical panel $100.30 1 usually ships 16-41 days
93 272-8158 Speed controller $662.85 1 usually ships 16-41 days
94 272-8183 36V 200amp contactor $96.09 1 ships same day
95 272-8184 36V 100amp contactor $54.10 1 usually ships 16-41 days
96 170-7731 Black boots $11.99 4 usually ships 1-5 days
97 172-0066 P-clamp $11.99 1 usually ships 1-5 days
98a 172-8836 150amp fuse $19.15 1 usually ships 16-41 days
98b 991-3061 150amp fuse $48.06 1 (NON-OEM) ships same day
99 172-0103 Electrical mount $13.40 3 usually ships 1-5 days
