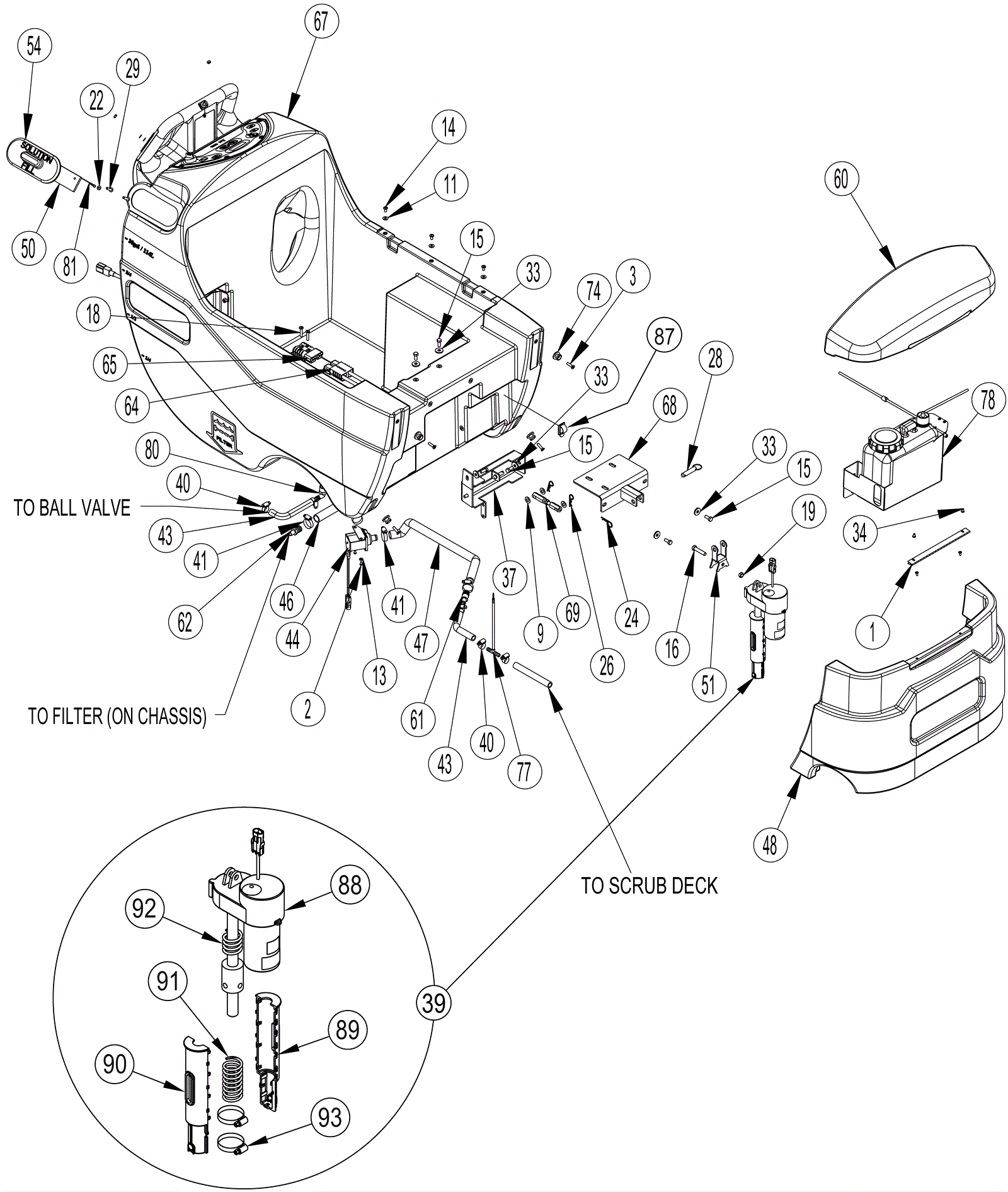

WARRIOR 32C-C Solution and Electrical Assembly 1 - AXP/EcoFlex

#PartDescriptionPriceReqNotesAvailability
1 272-0192 Hinge $79.45 1 usually ships 1-5 days
2 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated $0.99 2 ships same day
3 999-1345 Screw 1/4-20 x 1 flat head phillips stainless steel $0.99 4 ships same day
9 999-0120 Washer 3/8 SAE flat $0.99 3 ships same day
11 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 ships same day
13 999-0412 Washer #8 SAE flat $0.99 2 ships same day
14 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 5 ships same day
15 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel $0.99 7 ships same day
16 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.31 1 ships same day
18 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel $1.07 2 (for model 56381031 only) ships same day
19 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 1 ships same day
22 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
24 172-2001 Hair cotter pin $10.56 1 usually ships 16-41 days
26 997-2511 Cotter pin $0.99 2 ships same day
28 272-2115 Clevis pin $9.87 1 usually ships 16-41 days
29 999-1933 Screw #10-16 x 1 pan head phillips stainless steel $1.08 2 ships same day
33 172-2067 Washer 11/32 x 1/8 flat $11.99 7 usually ships 16-41 days
34 999-0571 Screw 10-24 x 3/8 pan head phillips stainless steel $0.99 4 ships same day
37 172-0069 Pivot weldment kit $320.64 1 ships same day
39 172-1908 Actuator assembly $589.15 1 (includes 83, 89, 90, 91, 92, 93) usually ships 16-41 days
40 172-8494 #6 hose clamp SAE $10.56 5 usually ships 1-5 days
41 997-2005 Hose clamp $2.15 5 ships same day
43 172-2327 Wire reinforced clear hose (OBSOLETE) $12.52 3 usually ships 16-41 days
44 272-2193 Solenoid valve assembly $358.11 1 ships same day
46 272-2197 Wire reinforced hose 3/4 x 10 1/2 inch $12.83 1 usually ships 16-41 days
47 272-8178 Spiral hose 3/4 inch x 25 inch $19.15 1 usually ships 16-41 days
48 272-2199 Nose cone (OBSOLETE) $268.66 1 usually ships 16-41 days
50 272-2228 Plate $13.40 1 ships same day
51 272-2202 Actuator yoke $30.28 1 usually ships 1-5 days
54 272-2204 Solution fill cover $11.99 1 ships same day
60 272-2212 Chemical tank cover $410.09 1 usually ships 1-5 days
61 272-2213 Coupler 1/2 x 3/4 barb $11.99 1 usually ships 1-5 days
62 272-2215 Adapter barb 3/4 x 1/2 $11.99 2 usually ships 16-41 days
64 272-2319 Charger connector assembly $76.52 1 (for model 56381031 only) (to the batteries) usually ships 16-41 days
65 272-2219 Charger connector assembly - to machine $79.45 1 (for model 56381031 only) (to the electrical box) usually ships 16-41 days
67 272-8179 Solution tank $1,237.47 1 usually ships 16-41 days
68 272-8185 Actuator mount weldment $85.24 1 usually ships 1-5 days
69 172-0003 Turnbuckle $64.23 1 usually ships 16-41 days
74 172-0444 Drive lug $22.41 4 usually ships 16-41 days
77 N/A Not available Call for price 1 (Tee assembly) usually ships 3-26 days
78 172-8497 Chemical tank assembly $594.22 1 usually ships 1-5 days
80 172-2103 Elbow barb $10.56 1 usually ships 16-41 days
81 172-1084 Wire rope assembly $13.40 1 ships same day
87 170-7622 Wire tie tab $11.99 1 usually ships 1-5 days
88a 172-7998 Actuator $507.58 1 usually ships 16-41 days
88b 272-7228 Plastic nut $10.56 1 usually ships 16-41 days
88c 272-7226 Spring housing kit $104.68 1 usually ships 16-41 days
89 272-6570 Spring housing $11.99 1 usually ships 16-41 days
90 272-6571 Spring housing $11.99 1 usually ships 16-41 days
91 172-8953 Compression spring $34.66 1 usually ships 16-41 days
92 172-8941 Compression spring $28.46 1 usually ships 16-41 days
93 172-8493 #24 hose clamp SAE $10.56 2 usually ships 1-5 days
