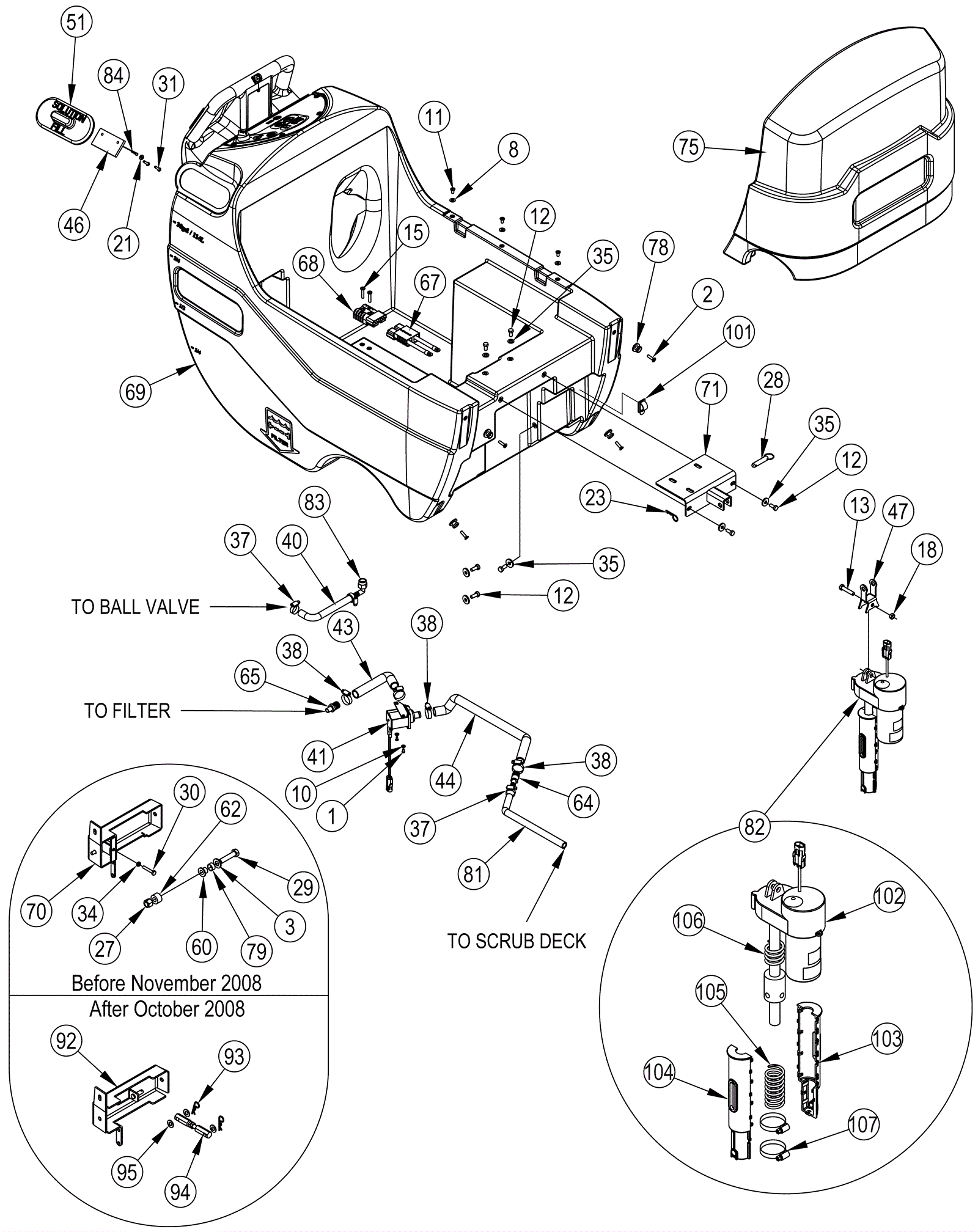

WARRIOR 32D Solution and Electrical Assembly 1 - Standard

#PartDescriptionPriceReqNotesAvailability
1 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated $0.99 2 ships same day
2 999-1345 Screw 1/4-20 x 1 flat head phillips stainless steel $0.99 4 ships same day
3 999-0114 Washer 1/2 SAE flat $0.99 1 (before October 2008 - if part needs replaced after this order kit 172-0069) ships same day
8 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 (before SN 2059968) ships same day
10 999-0412 Washer #8 SAE flat $0.99 2 ships same day
11 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 5 ships same day
12 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel $0.99 7 ships same day
13 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.31 1 ships same day
15 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel $1.07 2 (model 56315901 only) ships same day
18 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 1 ships same day
21 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
23 172-2001 Hair cotter pin $9.60 1 usually ships 16-41 days
27 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 1 (before October 2008 - if part needs replaced after this order kit 172-0069) ships same day
28 272-2115 Clevis pin $8.97 1 usually ships 16-41 days
29 172-8498 Screw M12-1.75 x 55mm hex head $10.90 1 (before October 2008 - if part needs replaced after this order kit 172-0069) usually ships 1-5 days
30 172-8499 Screw 1/4-20 x 1 1/2 threaded hex head $8.00 1 (before October 2008 - if part needs replaced after this order kit 172-0069) usually ships 1-5 days
31 999-1933 Screw #10-16 x 1 pan head phillips stainless steel $1.08 2 ships same day
34 999-0971 Nut 1/4-20 jam stainless steel $0.99 1 (before October 2008 - if part needs replaced after this order kit 172-0069) ships same day
35 172-2067 Washer 11/32 x 1/8 flat $10.90 7 usually ships 16-41 days
37 172-8494 #6 hose clamp SAE $9.60 3 usually ships 1-5 days
38 997-2005 Hose clamp $2.15 5 ships same day
40 172-2327 Wire reinforced clear hose (OBSOLETE) $11.38 1 usually ships 16-41 days
41 272-2193 Solenoid valve assembly $325.55 1 ships same day
43 272-2197 Wire reinforced hose 3/4 x 10 1/2 inch $11.66 1 usually ships 16-41 days
44 272-8178 Spiral hose 3/4 inch x 25 inch $17.41 1 usually ships 16-41 days
46 272-2228 Plate $12.18 1 ships same day
47 272-2202 Actuator yoke $27.53 1 usually ships 1-5 days
51 272-2204 Solution fill cover $10.90 1 ships same day
60 172-0069 Pivot weldment kit $291.49 1 ships same day
62 172-0069 Pivot weldment kit $291.49 1 ships same day
64 272-2213 Coupler 1/2 x 3/4 barb $10.90 1 usually ships 1-5 days
65 272-2215 Adapter barb 3/4 x 1/2 $10.90 2 usually ships 16-41 days
67 272-2319 Charger connector assembly $69.56 1 usually ships 16-41 days
68 272-2219 Charger connector assembly - to machine $72.23 1 usually ships 16-41 days
69a 272-8179 Solution tank $1,124.97 1 usually ships 16-41 days
69b 272-5365 Solution tank kit $1,423.63 1 (order 272-5365 if using with the old style squeegee lift level, 272-2206) usually ships 1-5 days
70 172-0069 Pivot weldment kit $291.49 1 (before October 2008 - if part needs replaced after this order kit 172-0069) ships same day
71 272-8185 Actuator mount weldment $77.49 1 usually ships 1-5 days
75 272-8186 One piece nose cone $305.19 1 usually ships 1-5 days
78 172-0444 Drive lug $20.37 4 usually ships 16-41 days
79 172-0069 Pivot weldment kit $291.49 1 (before October 2008 - if part needs replaced after this order kit 172-0069) ships same day
81 272-0070 Wire reinforced hose $11.66 1 usually ships 16-41 days
82 172-1908 Actuator assembly $535.59 1 (includes 102a-107) usually ships 16-41 days
83 172-2103 Elbow barb $9.60 1 usually ships 16-41 days
84 172-1084 Wire rope assembly $12.18 1 ships same day
92 172-0069 Pivot weldment kit $291.49 1 (after October 2008) ships same day
93 997-2511 Cotter pin $0.99 2 (after October 2008) ships same day
94 172-0003 Turnbuckle $58.39 1 (after October 2008) usually ships 16-41 days
95 999-0120 Washer 3/8 SAE flat $0.99 3 (after October 2008) ships same day
101 170-7622 Wire tie tab $10.90 1 usually ships 1-5 days
102a 172-7998 Actuator $461.44 1 usually ships 16-41 days
102b 272-7228 Plastic nut $9.60 1 usually ships 16-41 days
102c 272-7226 Spring housing kit $95.16 1 ships same day
103 272-6570 Spring housing $10.90 1 usually ships 16-41 days
104 272-6571 Spring housing $10.90 1 usually ships 16-41 days
105 172-8953 Compression spring $31.51 1 usually ships 16-41 days
106 172-8941 Compression spring $25.87 1 usually ships 16-41 days
107 172-8493 #24 hose clamp SAE $9.60 2 usually ships 1-5 days
N/S 172-6196 Cable tie $10.90 1 usually ships 1-5 days
