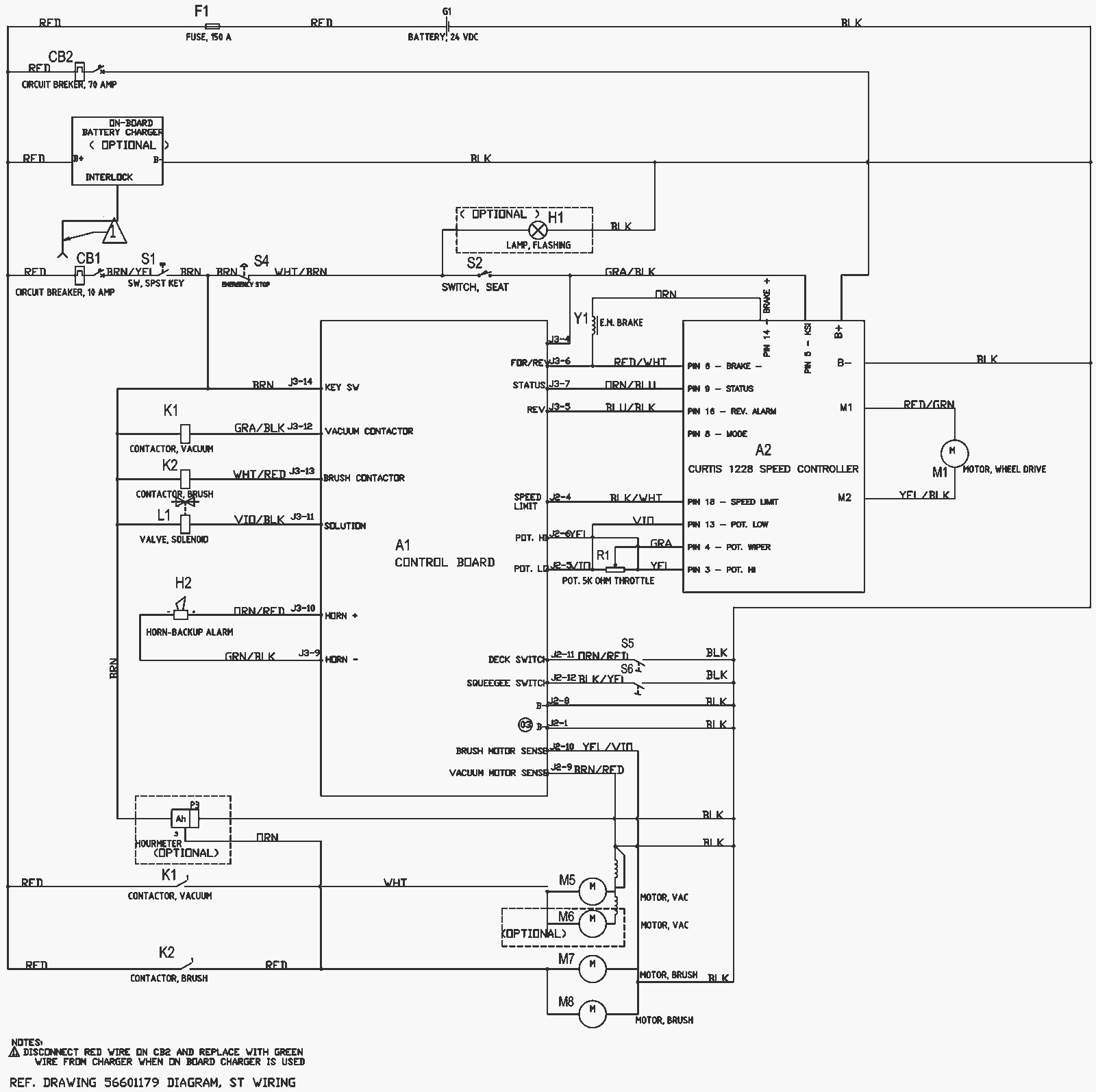

Wiring Diagram - ST

#PartDescription ReqNotesAvailability
A1 272-7195 Interface panel assembly 1
A2 272-3514 Speed control 1
BAT NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages 4
F1a 172-8836 150amp fuse 1
F1b 991-3061 150amp fuse 1
CB1a 172-2523 70amp circuit breaker 1 (OEM)
CB1b 991-1633 70amp circuit breaker 1 (NON-OEM)
CB2 272-9374 10amp circuit breaker 1
H1 272-9485 Warning beacon 1
H2 172-8839 Backup alarm 1
K1 272-8794 24V contactor 1
K2a 172-2163 24V solenoid 4 post (2 large 2 small) 1 (OEM)
K2b 991-1226 24V solenoid 4 post (2 large 2 small) 1 (NON-OEM)
L1 272-9265 Solenoid valve 1
M1 272-8807 Drive wheel motor 1
M5 272-9271 Vacuum motor 1
M6 272-9271 Vacuum motor 1 (optional)
M7 272-3605 Motor gearbox assembly 2
M8 272-3605 Motor gearbox assembly 2
S1a 272-2195 Key switch assembly 1
S1b 272-2196 Keys (pkg of 2) 1
S2 272-9417 Seat switch 1
S4 172-9233 Emergency stop button 1
S5 272-8850 Proximity sensor 1
S6 272-9264 Vac switch 1
N/S 272-2358 24V onboard battery charger 1
