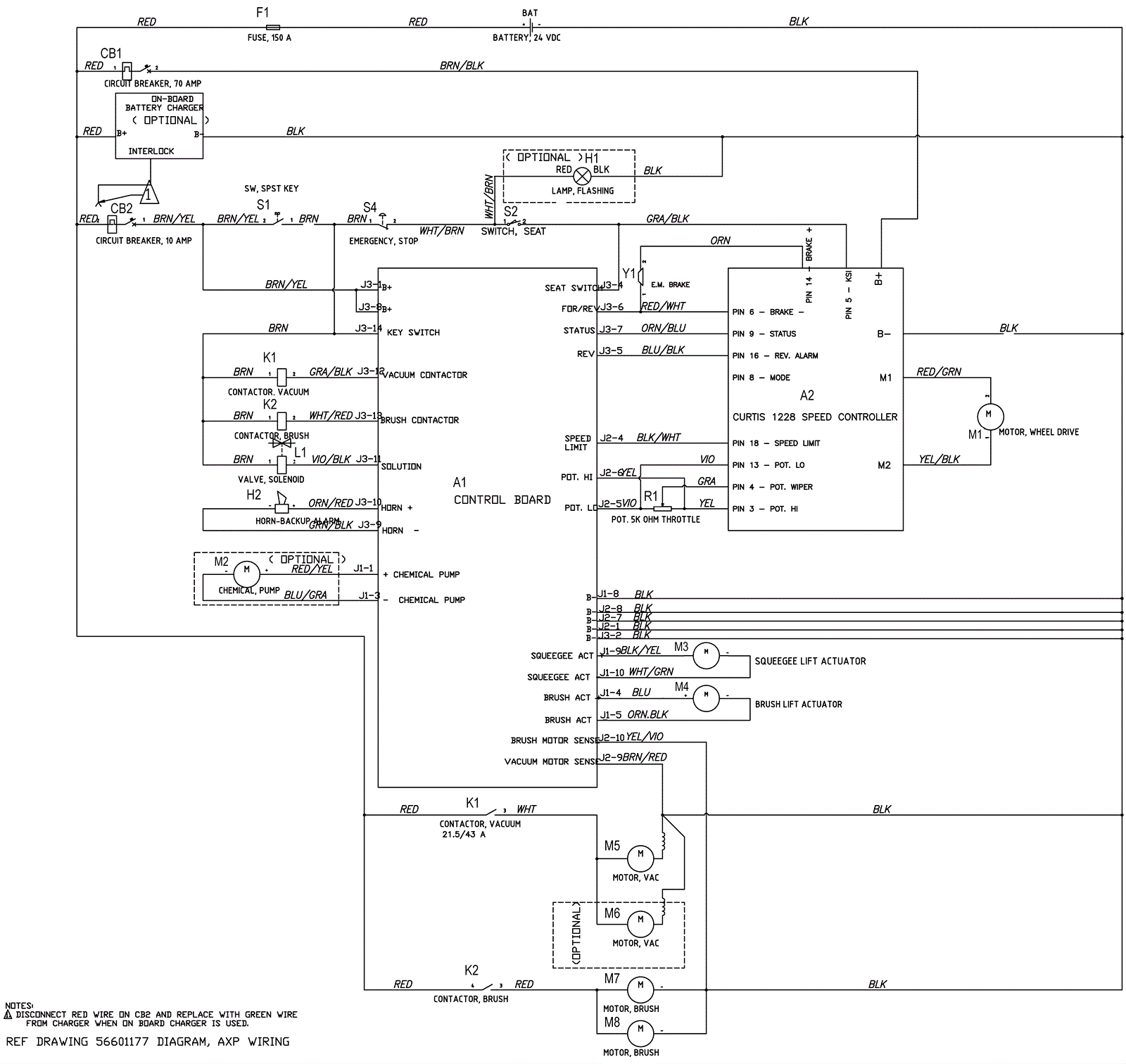

3400ST Wiring Diagram - Standard and EcoFlex

#PartDescriptionPriceReqNotesAvailability
A1 272-3571 Interface panel assembly (OBSOLETE) $949.14 1 usually ships 16-41 days
A2 272-3514 Speed control $718.72 1 usually ships 16-41 days
BAT NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages Call for price 4 usually ships 3-26 days
F1a 172-8836 150amp fuse $17.41 1 usually ships 16-41 days
F1b 991-3061 150amp fuse $38.45 1 usually ships 5-16 days
CB1a 172-2523 70amp circuit breaker $105.02 1 (OEM) usually ships 1-5 days
CB1b 991-1633 70amp circuit breaker $46.08 1 (NON-OEM) usually ships 3-19 days
CB2 272-9374 10amp circuit breaker $21.77 1 ships same day
H1 272-9485 Warning beacon $407.02 1 usually ships 1-5 days
H2 172-8839 Backup alarm $33.57 1 usually ships 16-41 days
K1 272-8794 24V contactor $82.73 1 usually ships 16-41 days
K2a 172-2163 24V solenoid 4 post (2 large 2 small) $111.56 1 (OEM) usually ships 16-41 days
K2b 991-1226 24V solenoid 4 post (2 large 2 small) (OBSOLETE) $54.00 1 (NON-OEM) usually ships 6-7 days
L1 272-9265 Solenoid valve $223.87 1 usually ships 16-41 days
M1 272-8807 Drive wheel motor $3,388.75 1 usually ships 1-5 days
M2 272-2175 Chemical pump $264.47 1 ships same day
M3 272-3651 Actuator $441.08 1 usually ships 16-41 days
M4 272-3551 Lift actuator assembly $894.58 1 usually ships 16-41 days
M5 272-9271 Vacuum motor $372.81 1 usually ships 16-41 days
M6 272-9271 Vacuum motor $372.81 1 (optional) usually ships 16-41 days
M7a 272-2148 24V brush motor $732.57 1 (cylindrical) usually ships 16-41 days
M7b 272-3605 Motor gearbox assembly $1,084.38 1 (disk) usually ships 16-41 days
M8a 272-2148 24V brush motor $732.57 1 (cylindrical) usually ships 16-41 days
M8b 272-3605 Motor gearbox assembly $1,084.38 1 (disk) usually ships 16-41 days
S1a 272-2195 Key switch assembly $81.46 1 usually ships 16-41 days
S1b 272-2196 Keys (pkg of 2) $38.04 1 ships same day
S2 272-9417 Seat switch $20.37 1 usually ships 16-41 days
S4 172-9233 Emergency stop button $237.57 1 usually ships 16-41 days
N/S 272-2358 24V onboard battery charger $1,117.17 1 usually ships 16-41 days
