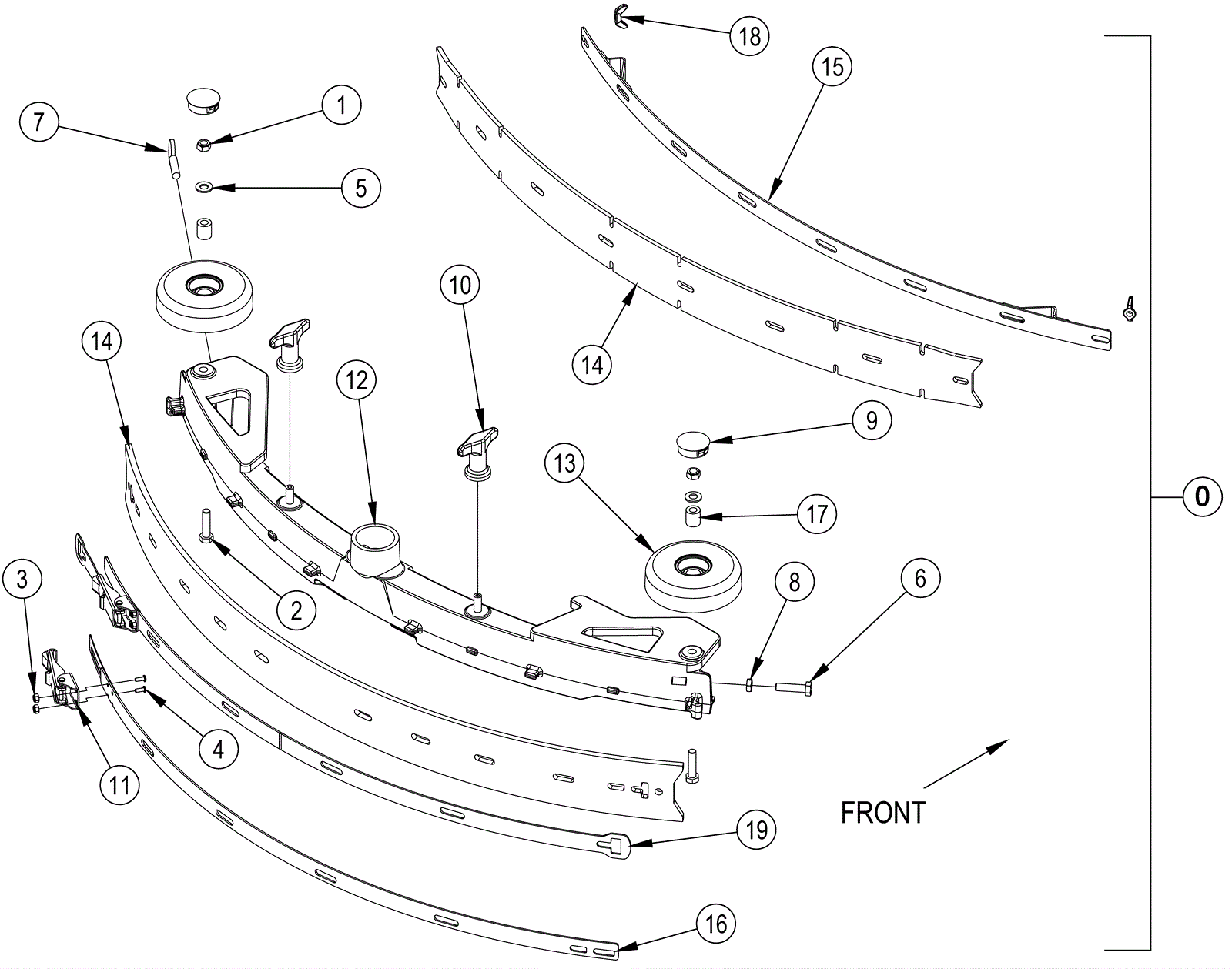

| # | Part | Description | Price | Req | Notes | Availability |
|---|
0a |
272-3656
|
28 inch squeegee assembly |
$623.58
|
1 |
|
ships same day |
0b |
272-7245
|
34 inch squeegee assembly |
$853.98
|
1 |
|
usually ships 16-41 days |
1 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
2 |
|
ships same day |
2 |
999-0688
|
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
$0.99
|
2 |
|
ships same day |
3 |
999-0227
|
Nut 6-32 hex nylon insert lock jam zinc plated |
$0.99
|
2 |
(28 inch before June 2012) (34 inch before May 2012) |
ships same day |
4 |
999-0336
|
Screw 6-32 x 3/8 pan head phillips stainless steel |
$0.99
|
2 |
(28 inch before June 2012) (34 inch before May 2012) |
ships same day |
5 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
6 |
999-0688
|
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
$0.99
|
1 |
|
ships same day |
7 |
272-3671
|
Screw 5/16-18 x 1 1/4 thumb stainless steel |
$6.66
|
1 |
|
usually ships 16-41 days |
8 |
999-1019
|
Nut 5/16-18 hex jam stainless steel |
$0.99
|
1 |
|
ships same day |
9 |
272-9868
|
Button plug |
$9.60
|
2 |
|
ships same day |
10 |
172-4099
|
Nut 5/16-18 thumb |
$10.24
|
2 |
|
ships same day |
11 |
172-0094
|
Latch |
$39.46
|
1 |
(28 inch before June 2012) (34 inch before May 2012) |
ships same day |
12 |
N/A
|
Not available |
Call for price
|
1 |
(Squeegee casting) (This part is not available separately. To replace this part you must purchase a new squeegee assembly.) |
usually ships 3-26 days |
13 |
272-9881
|
Wheel |
$13.19
|
2 |
|
ships same day |
14a |
272-8961
|
Squeegee blade kit 28 inch gum rubber |
$72.23
|
1 |
(before November 2011) |
usually ships 16-41 days |
14b |
272-3672
|
Squeegee blade kit 28 inch gum rubber |
$60.83
|
1 |
(after October 2011) (Machines built before November 2011, you must also order a new rear strap.) |
ships same day |
14c |
272-3673
|
Squeegee blade kit 28 inch urethane |
$117.81
|
1 |
(before November 2011) |
usually ships 16-41 days |
14d |
272-3673
|
Squeegee blade kit 28 inch urethane |
$117.81
|
1 |
(after October 2011) (Machines built before November 2011, you must also order a new rear strap.) |
usually ships 16-41 days |
14e |
272-3675
|
Squeegee blade kit 28 inch Linatex (red) |
$110.79
|
1 |
(before November 2011) |
ships same day |
14f |
272-3675
|
Squeegee blade kit 28 inch Linatex (red) |
$110.79
|
1 |
(after October 2011) (Machines built before November 2011, you must also order a new rear strap.) |
ships same day |
14g |
172-4688
|
Squeegee blade kit 34 inch gum rubber |
$57.12
|
1 |
|
ships same day |
14h |
572-8127
|
Polyurethane squeegee blade kit (L) |
$143.44
|
1 |
|
usually ships 16-41 days |
14i |
272-3682
|
Squeegee blade kit 34 inch gum rubber (red) |
$100.54
|
1 |
|
usually ships 16-41 days |
15a |
272-3677
|
Front strap |
$122.06
|
1 |
(28 inch) |
usually ships 16-41 days |
15b |
272-3683
|
Front strap |
$122.06
|
1 |
(34 inch) |
usually ships 16-41 days |
16a |
272-3678
|
Rear strap |
$78.77
|
1 |
(before SN 3000023100) (28 inch) |
usually ships 16-41 days |
16b |
272-7285
|
28 inch weldment and rear band kit |
$57.12
|
1 |
(after SN 3000023099 and before June 2012) (28 inch) |
ships same day |
16c |
272-3685
|
Rear strap |
$92.60
|
1 |
(before SN 300006847) (34 inch) |
usually ships 16-41 days |
16d |
272-3684
|
Rear strap |
$42.65
|
1 |
(after SN 300006846 and before May 2012) (34 inch) |
usually ships 1-5 days |
17 |
272-9882
|
Bushing |
$10.90
|
2 |
|
usually ships 16-41 days |
18 |
999-0603
|
Nut 1/4-20 wing stainless steel |
$7.33
|
2 |
|
ships same day |
19a |
272-3679
|
Band clamp |
$142.40
|
1 |
(after May 2012) (28 inch) |
usually ships 16-41 days |
19b |
272-3686
|
Band clamp |
$156.25
|
1 |
(after April 2012) (34 inch) |
usually ships 16-41 days |
