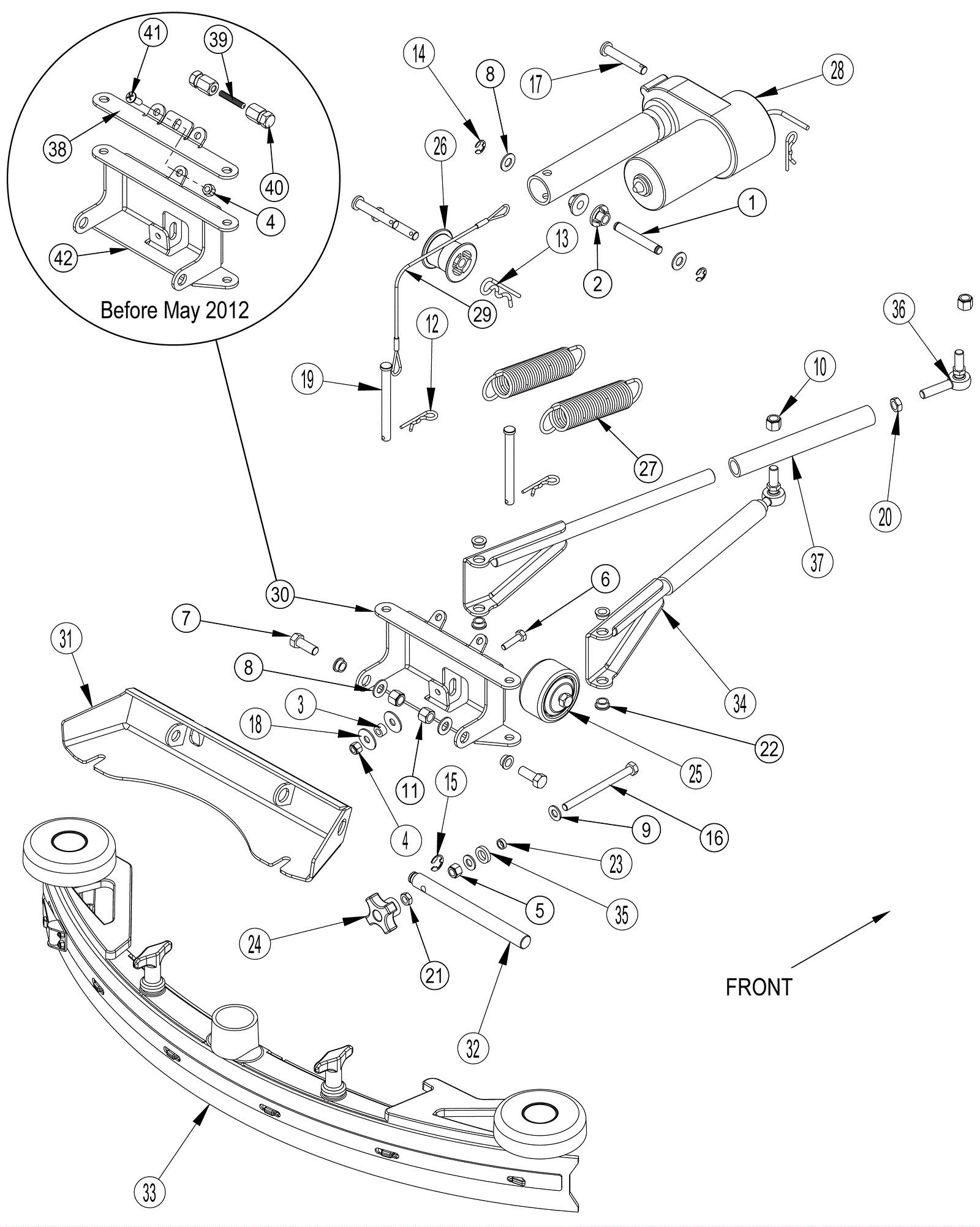

3400ST Squeegee Lift Assembly - Standard and EcoFlex

#PartDescriptionPriceReqNotesAvailability
1 172-2365 Pin $40.72 1 usually ships 1-5 days
2 172-9092 Spacer $21.77 2 usually ships 1-5 days
3 172-2032 Spacer $36.77 1 usually ships 1-5 days
4 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 (before May 2012) (This part was implemented into production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement.) ships same day
5 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 1 ships same day
6 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $0.99 1 ships same day
7 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 2 ships same day
8 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
9 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
10 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 ships same day
11 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 2 ships same day
12 997-2518 Hitch pin $0.99 3 ships same day
13 172-3483 Cotter pin $10.90 1 usually ships 16-41 days
14 172-4033 3/8 inch retaining ring $9.60 2 usually ships 16-41 days
15 172-0269 Retaining ring $9.60 1 usually ships 16-41 days
17 172-3484 Clevis pin $10.90 3 usually ships 1-5 days
18 272-1288 Washer 21/64-1 x 1/16 flat stainless steel $10.90 2 usually ships 1-5 days
19 272-3650 Clevis pin $10.90 2 usually ships 16-41 days
20 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 ships same day
21 999-1019 Nut 5/16-18 hex jam stainless steel $0.99 1 ships same day
22 172-8815 Flanged bearing $12.18 6 usually ships 16-41 days
23 172-9202 Bushing $40.72 1 usually ships 16-41 days
24 172-2150 Knob $9.60 1 ships same day
25 172-9050 Wheel $74.79 1 usually ships 16-41 days
26 172-9093 Roller $13.70 1 usually ships 16-41 days
27 172-9090 Extension spring $58.39 2 (before May 2012) (This part was implemented into production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement.) usually ships 16-41 days
28 272-3651 Actuator $441.08 1 usually ships 16-41 days
29 272-3652 Cable assembly $10.90 1 usually ships 16-41 days
30 272-6381 Squeegee pivot weldment $96.44 1 (after April 2012) usually ships 1-5 days
31 N/A Not available Call for price 1 (Squeegee mounting bracket) usually ships 3-26 days
32 272-3655 Shaft $42.65 1 usually ships 16-41 days
33a 272-3656 28 inch squeegee assembly $623.58 1 ships same day
33b 272-7245 34 inch squeegee assembly $853.98 1 usually ships 16-41 days
34 272-3657 Bar weldment $50.59 2 usually ships 16-41 days
35 272-3658 Polyurethane washer $10.90 1 usually ships 1-5 days
36 272-3659 Rod end $26.13 2 usually ships 16-41 days
37 272-3660 Hose $10.90 2 usually ships 16-41 days
38 272-3661 Spring bracket $32.79 1 (before May 2012) (This part was implemented into production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement.) usually ships 1-5 days
39 272-3662 Threaded rod $9.60 1 (before May 2012) (This part was implemented into production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement.) usually ships 1-5 days
40 N/A Not available Call for price 2 (Spring nut) (before May 2012) (This part was implemented into production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement.) usually ships 3-26 days
41 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel $1.76 1 (before May 2012) (This part was implemented into production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement.) ships same day
42 272-3664 Squeegee pivot weldment $152.92 1 (before May 2012) (This part was implemented into production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement.) usually ships 16-41 days
N/S 272-3665 Squeegee spring kit $142.40 1 usually ships 1-5 days
