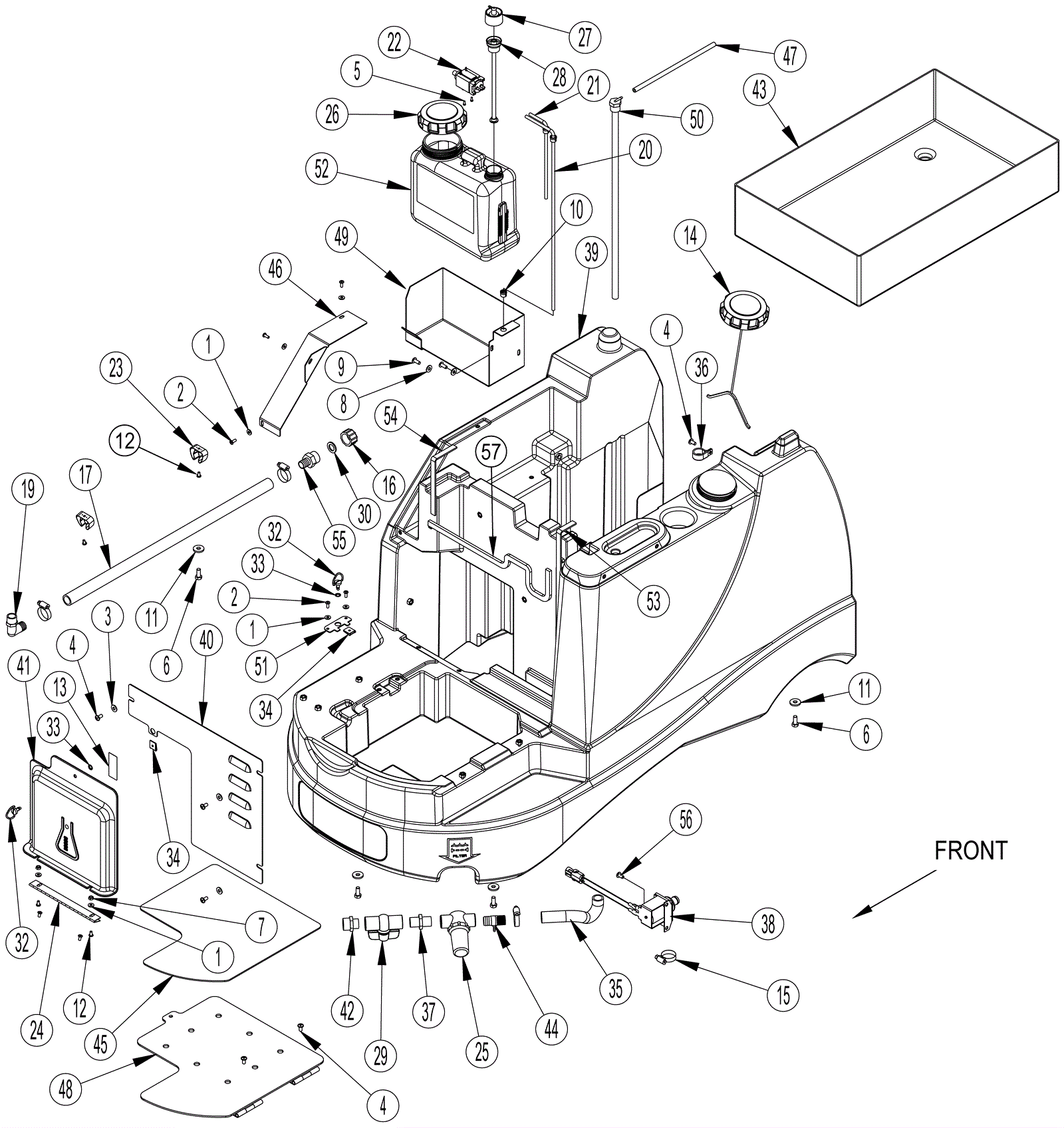

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1862
|
Washer #10 flat SAE stainless steel |
7 |
|
|
2 |
999-0267
|
Screw 10-24 x 1/2 pan head phillips zinc |
5 |
|
|
3 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
3 |
|
|
4 |
999-0508
|
Screw 1/4-20 x 1/2 pan head phillips zinc plated |
8 |
|
|
5 |
999-0100
|
Screw 6-32 x 5/16 round head slotted zinc plated |
2 |
|
|
8 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
9 |
999-0567
|
Screw 1/4-20 x 5/8 pan head phillips stainless steel |
2 |
|
|
11 |
172-2067
|
Washer 11/32 x 1/8 flat |
4 |
|
|
12 |
999-0477
|
Screw 10-24 x 5/16 truss head phillips zinc |
6 |
|
|
13 |
272-9827
|
Chemical ratio decal |
1 |
|
|
14 |
272-9352
|
Raw cap with tether |
1 |
|
|
17 |
272-1410
|
Hose |
1 |
|
|
19 |
272-1448
|
90 degree elbow barb |
1 |
|
|
20 |
272-3637
|
Chemical resistant hose |
1 |
|
|
21 |
272-5404
|
Chemical resistant hose |
1 |
|
|
22 |
272-2175
|
Chemical pump |
1 |
|
|
23 |
272-3638
|
Hose clip |
2 |
|
|
24 |
272-2171
|
Hinge |
1 |
|
|
29 |
272-3640
|
Ball valve |
1 |
|
|
36 |
172-1154
|
P clamp |
1 |
|
|
37 |
172-2099
|
Nipple |
1 |
|
|
39 |
272-3641
|
Solution tank |
1 |
|
|
41 |
272-3643
|
Chemical bottle cover |
1 |
|
|
42 |
272-3644
|
Reducer nipple |
1 |
|
|
44 |
272-3645
|
Tee |
1 |
|
|
45 |
272-8864
|
Mat |
1 |
|
|
47 |
272-9895
|
Hose (OBSOLETE) |
1 |
|
|
48 |
272-8865
|
Charger cover weldment |
1 |
|
|
49 |
272-6377
|
Bracket |
1 |
|
|
51 |
272-6378
|
Plate |
1 |
|
|
54 |
272-8869
|
Gasket |
1 |
|
|
57 |
272-8871
|
Gasket |
1 |
|
|
