| # | Part | Description | Price | Req | Notes | Availability |
|---|
0a |
272-3602
|

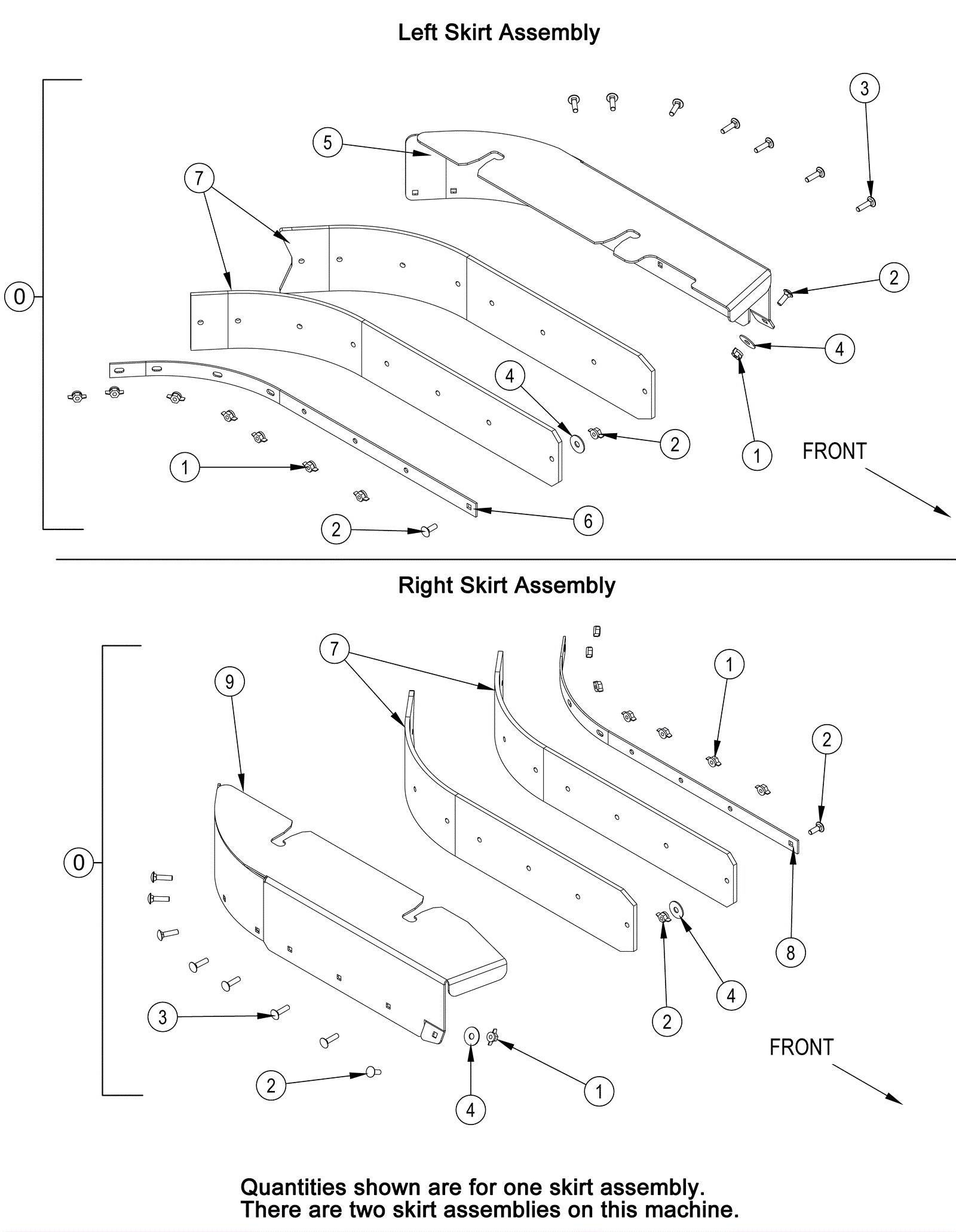

Left skirt assembly |
$244.24
|
1 |
(includes 1-7) (28 inch) |
usually ships 16-41 days |
0b |
272-8602
|
Left skirt assembly |
$257.94
|
1 |
(includes 1-7) (34 inch) |
usually ships 1-5 days |
0c |
272-8603
|
Right skirt assembly |
$239.62
|
1 |
(includes 1-4 and 7-9) |
usually ships 1-5 days |
1b |
999-1948
|
Nut 1/4-20 wing lock |
$2.12
|
9 |
(NON-OEM) |
ships same day |
2 |
272-3627
|
Screw 1/4-20 x 3/4 carriage head stainless steel |
$10.90
|
2 |
|
usually ships 16-41 days |
3 |
272-3628
|
Screw 1/4-20 x 1 carriage head stainless steel |
$9.60
|
7 |
|
usually ships 16-41 days |
4 |
272-1288
|
Washer 21/64-1 x 1/16 flat stainless steel |
$10.90
|
2 |
|
usually ships 1-5 days |
5a |
272-3629
|
28 inch left side skirt frame |
$107.71
|
1 |
(28 inch) |
usually ships 1-5 days |
5b |
272-3630
|
34 inch left side skirt frame |
$95.16
|
1 |
(34 inch) |
usually ships 1-5 days |
6a |
272-6385
|
28 inch skirt retainer |
$24.47
|
1 |
(28 inch) |
usually ships 16-41 days |
6b |
272-6386
|
34 inch skirt retainer |
$23.05
|
1 |
(34 inch) |
usually ships 1-5 days |
7a |
272-3633
|
Skirt blade kit gum rubber |
$46.62
|
1 |
|
usually ships 16-41 days |
7b |
272-3634
|
Skirt blade kit urethane |
$162.78
|
1 |
|
usually ships 1-5 days |
7c |
272-6388
|
Skirt blade kit gum rubber red (pkg of 4) |
$196.98
|
1 |
|
ships same day |
8 |
272-6385
|
28 inch skirt retainer |
$24.47
|
1 |
|
usually ships 16-41 days |
9 |
272-3636
|
Skirt frame |
$95.16
|
1 |
|
usually ships 1-5 days |
