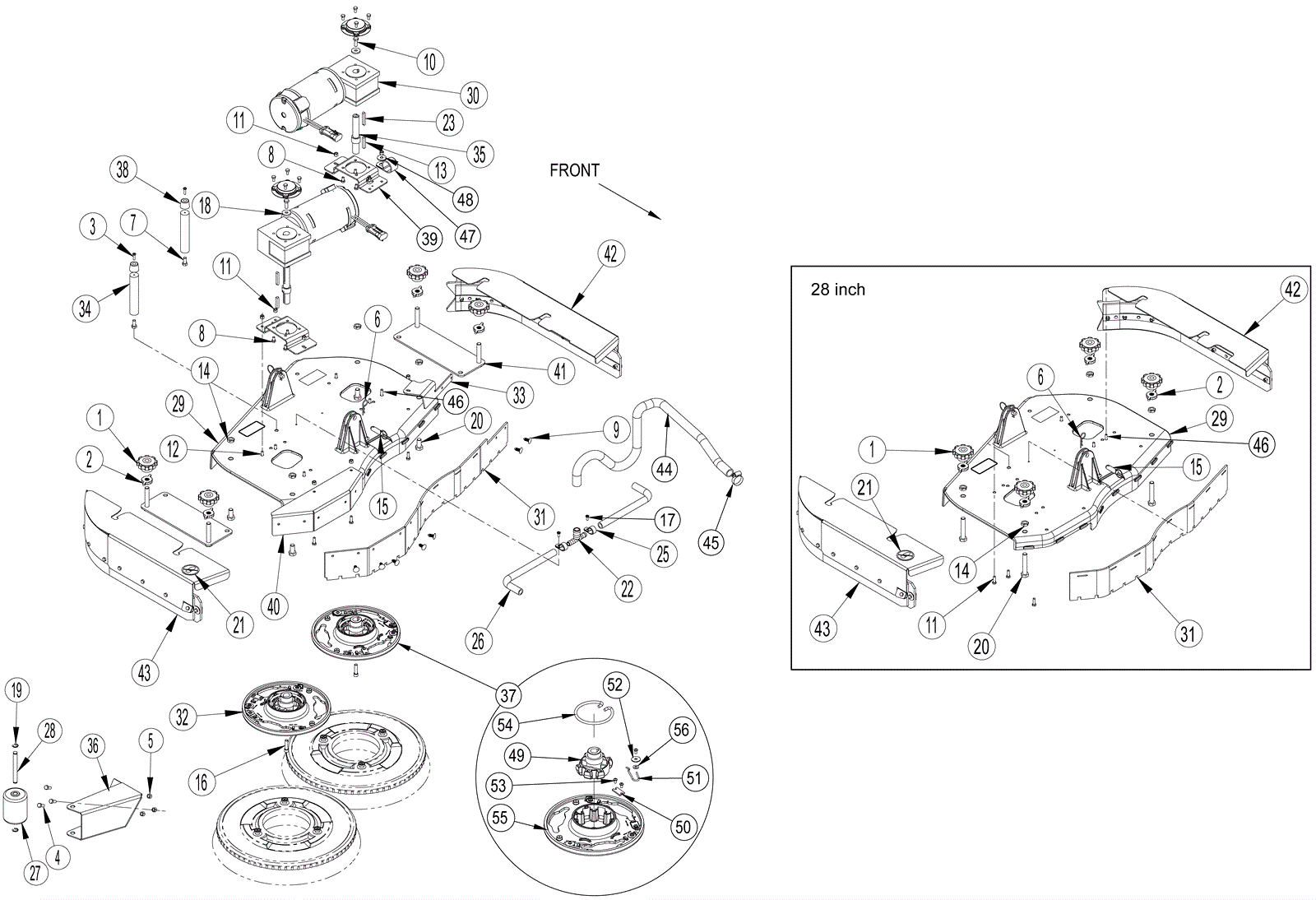

3400ST Scrub Deck Assembly - Disk

#PartDescriptionPriceReqNotesAvailability
1 172-9281 Knob $10.24 4 usually ships 16-41 days
2 172-9282 Knob $11.66 4 usually ships 16-41 days
3 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
4 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 3 ships same day
5 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 3 ships same day
6 172-2001 Hair cotter pin $9.60 2 usually ships 16-41 days
7 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 2 ships same day
8 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 8 ships same day
9 991-5122 1/4 nylon tree push-in rivet $1.24 7 (OEM) (34 inch) ships same day
9 991-5122 1/4 nylon tree push-in rivet $1.24 7 (NON-OEM) ships same day
10 999-0494 Bolt 5/16-18 x 7/8 hex head stainless steel $0.99 2 ships same day
11 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 9 ships same day
12 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 5 (qty of 8 for 34 inch) ships same day
13 181-0112 Square key $9.60 2 usually ships 1-5 days
14 999-1377 Nut M12-1.75 hex jam $0.99 4 ships same day
15 272-7255 Ring pin $5.00 2 usually ships 1-5 days
16 272-9905 Screw 5/16-18 x 1 1/4 socket head zinc plated $10.90 2 usually ships 16-41 days
17 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping $0.99 2 ships same day
18 172-3047 Washer 11/32 x 1/8 flat $10.90 2 usually ships 16-41 days
19 172-0269 Retaining ring $9.60 2 usually ships 16-41 days
20a 999-1349 Screw M12-1.75 x 70mm full thread hex head stainless steel $5.98 4 (28 inch) ships same day
20b 272-1654 Bolt 12mm-1 3/4 x 25mm $4.60 4 (34 inch) usually ships 1-5 days
21 172-3428 No step decal $12.18 1 usually ships 1-5 days
22 272-3603 Barbed tee $10.90 1 usually ships 1-5 days
23 172-3388 Square keyway $10.90 2 usually ships 16-41 days
25 172-2542 P clamp $10.90 2 usually ships 1-5 days
26a 172-9351 Spiral hose $30.87 2 (28 inch) usually ships 16-41 days
26b 272-0070 Wire reinforced hose $11.66 2 (34 inch) usually ships 16-41 days
27 172-9157 Roller wheel $40.72 1 usually ships 16-41 days
28 272-8756 Pin $6.27 1 usually ships 16-41 days
29 272-3604 Scrub deck weldment $253.96 1 usually ships 16-41 days
30a 272-3605 Motor gearbox assembly $1,084.38 2 (includes 30b-30h) usually ships 16-41 days
30b 272-3606 Gearbox $1,016.75 1 usually ships 16-41 days
30c 172-3391 Bearing $57.12 1 usually ships 1-5 days
30d 272-3607 Bearing $17.68 1 usually ships 1-5 days
30e 272-3608 Carbon brush (sold individually) $54.43 2 usually ships 1-5 days
30f 272-3609 Square keyway $10.90 1 usually ships 1-5 days
30g 272-3610 Brush motor cover $13.70 1 usually ships 1-5 days
30h 272-3611 Motor fan $13.70 1 usually ships 1-5 days
31a 272-8733 Squeegee blade 28 inch gum rubber front $21.77 1 ships same day
31b 272-3600 Squeegee blade 28 inch urethane front $55.83 1 usually ships 16-41 days
31c 272-3612 Squeegee blade 34 inch gum rubber front $20.37 1 usually ships 16-41 days
31d 272-3625 Squeegee blade 34 inch urethane front $176.61 1 usually ships 1-5 days
32 272-3613 Right brush plate assembly $217.20 1 (includes 49-56) usually ships 16-41 days
33 272-3614 Skirt bracket $27.53 1 (34 inch) usually ships 1-5 days
34 272-3615 Rod $20.37 2 usually ships 1-5 days
35 272-3616 Shaft $42.97 2 ships same day
36a 272-6377 Bracket $37.13 1 (28 inch) ships same day
36b 272-6538 Roller bracket $111.56 1 (34 inch) usually ships 1-5 days
37 272-3618 Left brush plate assembly $217.20 1 (includes 49-56) usually ships 16-41 days
38 272-8773 Stop mount $10.90 2 usually ships 1-5 days
39 272-3619 Motor bracket $38.04 2 usually ships 1-5 days
40 272-3620 Brush cover $74.16 1 (34 inch) usually ships 1-5 days
41 270-8583 Side skirt weldment $51.89 1 (34 inch) usually ships 16-41 days
42a 272-3602 Left skirt assembly $244.24 1 (28 inch) usually ships 16-41 days
42b 272-8602 Left skirt assembly $257.94 1 (34 inch) usually ships 1-5 days
43 272-8603 Right skirt assembly $239.62 1 usually ships 1-5 days
44 272-3621 Hose $13.70 1 usually ships 1-5 days
45 997-2005 Hose clamp $2.15 1 ships same day
46 999-0518 Bolt M6-1 x 25mm hex head full thread zinc $0.99 1 ships same day
47 172-9261 P clamp $10.90 1 usually ships 1-5 days
48 272-1288 Washer 21/64-1 x 1/16 flat stainless steel $10.90 1 usually ships 1-5 days
N/S 997-2102 Cable tie $1.24 1 ships same day
N/S 272-3622 Ferrite bead $49.18 1 (installed on main harness) (model 56601022) (34 inch) usually ships 1-5 days
N/S 272-3623 Ferrite bead $27.53 2 (installed on each brush drive motor) (model 56601022) (34 inch) usually ships 1-5 days
