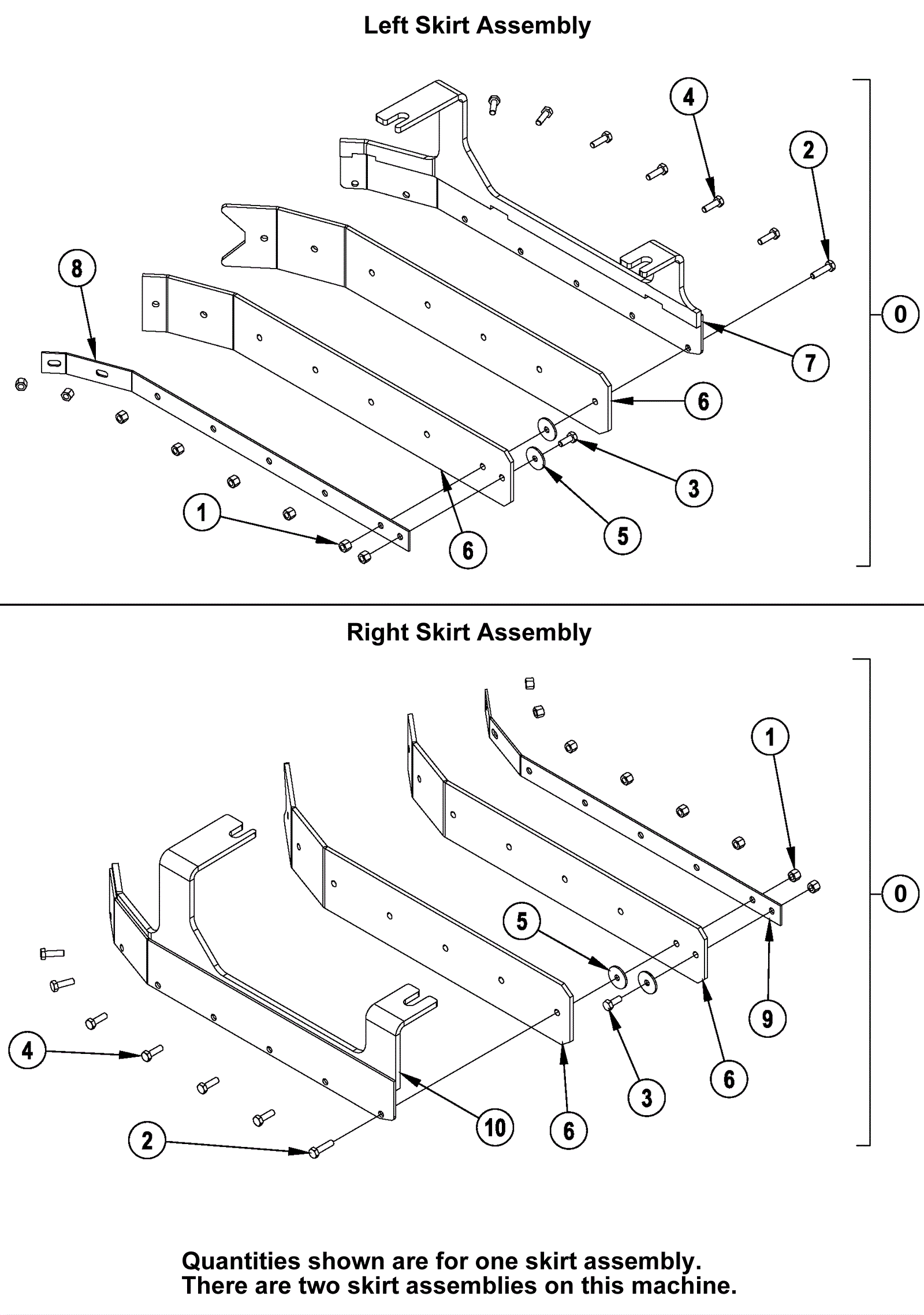

| # | Part | Description | Price | Req | Notes | Availability |
|---|
0a |
272-3590
|
Left side skirt assembly |
$420.73
|
1 |
(includes 1-8) |
usually ships 16-41 days |
0b |
272-3591
|
Right side skirt assembly |
$400.34
|
1 |
(includes 1-6, 9 and 10) |
usually ships 16-41 days |
1 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
$1.03
|
8 |
|
ships same day |
3 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
$0.99
|
1 |
|
ships same day |
4 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
$0.99
|
6 |
|
ships same day |
5 |
172-0548
|
Washer 17/64 x 47/64 flat stainless steel |
$9.60
|
2 |
|
usually ships 16-41 days |
6a |
272-3593
|
Skirt blade gum rubber (set of 4) |
$55.83
|
1 |
|
ships same day |
6b |
272-3594
|
Skirt blade urethane |
$210.68
|
1 |
|
usually ships 1-5 days |
6c |
272-3595
|
Skirt blade linatex |
$99.13
|
1 |
|
usually ships 16-41 days |
7 |
272-6352
|
Left skirt weldment bracket |
$162.78
|
1 |
|
usually ships 1-5 days |
8 |
272-6353
|
Left skirt retainer |
$23.05
|
1 |
|
usually ships 1-5 days |
9 |
272-6354
|
Right skirt retainer |
$30.22
|
1 |
|
usually ships 1-5 days |
10 |
272-6355
|
Right skirt weldment bracket |
$100.40
|
1 |
|
usually ships 1-5 days |
