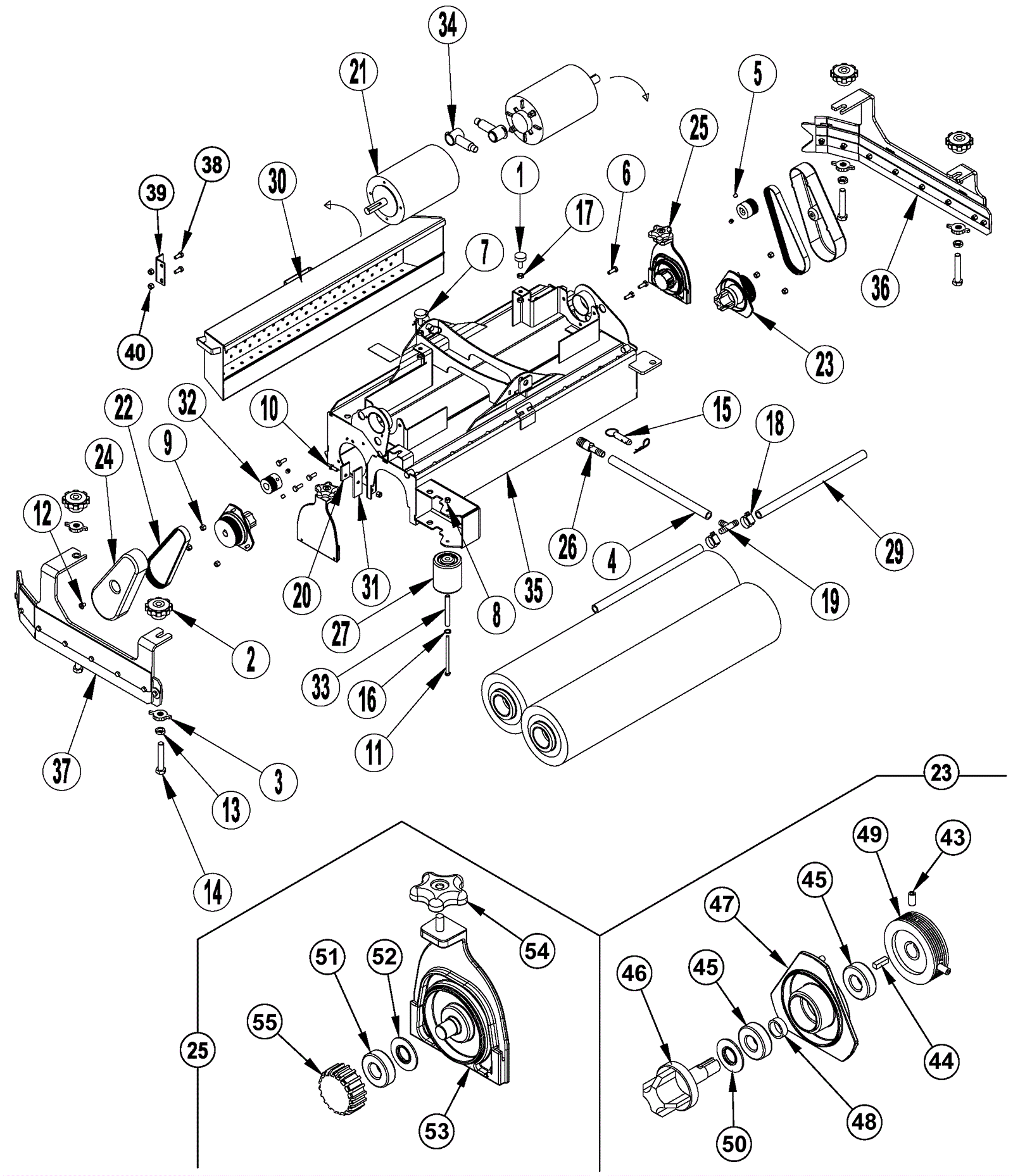

3400ST Scrub Deck Assembly - Cylindrical

#PartDescriptionPriceReqNotesAvailability
1 172-2503 Tank leveler $12.18 2 usually ships 16-41 days
2 172-9281 Knob $10.24 4 usually ships 16-41 days
3 172-9282 Knob $11.66 4 usually ships 16-41 days
4 172-2815 Main solution hose $11.66 1 usually ships 16-41 days
5 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish $0.99 4 ships same day
6 272-1596 Bolt 1/4-20 x 3/4 hex head lock $12.18 6 usually ships 1-5 days
7 172-2001 Hair cotter pin $9.60 2 usually ships 16-41 days
8 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 1 ships same day
9 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 8 ships same day
10 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
11 999-1329 Screw M6-1 x 100mm hex head $2.20 1 ships same day
12 272-1562 Screw 1/4-20 x 3/5 pan head thread forming $9.60 2 usually ships 16-41 days
13 999-1377 Nut M12-1.75 hex jam $0.99 4 ships same day
14 999-1349 Screw M12-1.75 x 70mm full thread hex head stainless steel $5.98 4 ships same day
15 172-3360 Ring pin 1/2 x 1-1/4 $6.41 2 usually ships 16-41 days
16 272-1670 Washer 3/8 bowed $9.60 2 usually ships 16-41 days
17 999-0430 Nut 5/16-18 hex jam plain finish $0.99 4 ships same day
18 997-2004 Hose clamp $2.15 2 ships same day
19 172-4114 Tee barb $10.90 1 usually ships 16-41 days
20 172-0548 Washer 17/64 x 47/64 flat stainless steel $9.60 2 usually ships 16-41 days
21a 272-2148 24V brush motor $732.57 2 (includes 21b-21d) usually ships 16-41 days
21b 172-8951 Carbon brush and spring kit $147.74 1 ships same day
21c N/A Not available Call for price 4 (Brush assembly) usually ships 3-26 days
21d N/A Not available Call for price 4 (Brush spring) usually ships 3-26 days
22 272-2150 Tension belt $24.47 2 usually ships 16-41 days
23 172-8933 Drive end assembly $271.13 2 (includes 43-50) usually ships 16-41 days
24 272-2152 Belt cover $9.60 2 ships same day
25 172-3373 Idler end assembly $47.96 2 (includes 51-55) usually ships 16-41 days
26 272-2213 Coupler 1/2 x 3/4 barb $10.90 1 usually ships 1-5 days
27 272-9393 Wheel $12.18 1 usually ships 1-5 days
29 272-5415 28 inch manifold $12.18 2 usually ships 16-41 days
30 272-3588 Hopper weldment $244.24 1 usually ships 16-41 days
31 172-8926 Blade $10.90 2 usually ships 16-41 days
32 172-8928 Poly-v sheave $66.98 2 usually ships 16-41 days
33 172-8944 Bushing $85.89 1 ships same day
34 172-8964 Terminal insulator $12.18 2 usually ships 1-5 days
35 272-6346 Housing weldment $1,220.14 1 usually ships 1-5 days
36 272-3590 Left side skirt assembly $420.73 1 usually ships 16-41 days
37 272-3591 Right side skirt assembly $400.34 1 usually ships 16-41 days
38 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 2 ships same day
39 272-3592 Bracket $19.09 1 usually ships 1-5 days
40 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
41 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) $0.44 1 ships same day
42 997-2005 Hose clamp $2.15 1 ships same day
43 181-0003 Screw 1/4-20 x 1/2 socket set lock $10.90 2 usually ships 16-41 days
44 172-8956 Square keyway $10.90 1 usually ships 16-41 days
45 172-4656 Ball bearing $20.70 2 ships same day
46 272-9347 Spindle $11.66 1 ships same day
48 172-8957 Spacer $12.18 1 usually ships 16-41 days
49 172-8959 Poly-v sheave $217.20 1 usually ships 16-41 days
50 172-1837 Bearing washer $9.60 1 usually ships 16-41 days
51 172-4656 Ball bearing $20.70 1 ships same day
52 172-1837 Bearing washer $9.60 1 usually ships 16-41 days
53 272-2170 Idler bearing plate $21.77 1 usually ships 16-41 days
54 172-2150 Knob $9.60 1 ships same day
55 172-1838 Hub $13.19 1 usually ships 16-41 days
N/S 272-3587 Brush motor harness $51.31 2 usually ships 1-5 days
