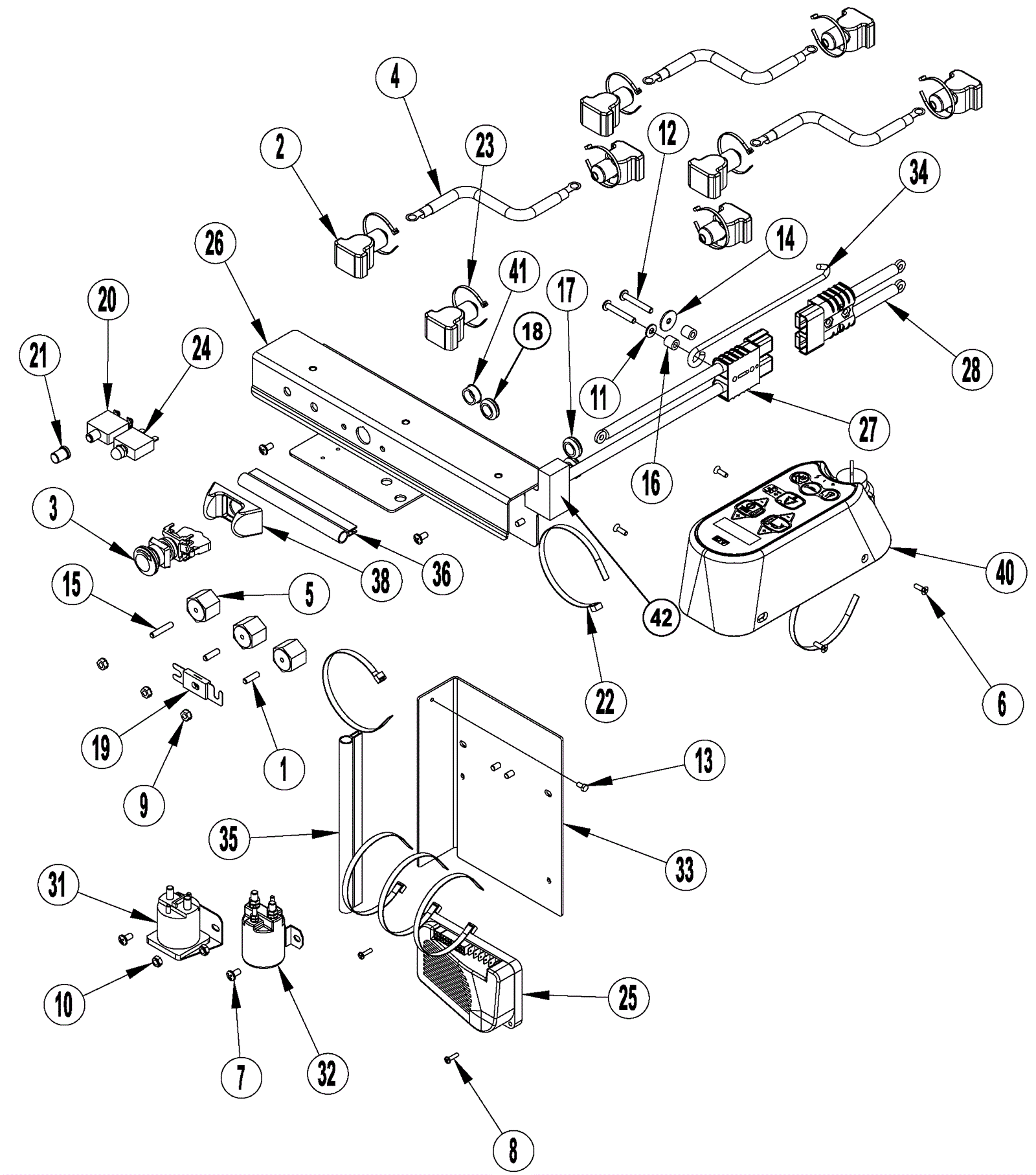

3400ST Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
1 172-0345 Terminal stud $10.90 2 usually ships 16-41 days
2 172-0223 Battery cable boot $8.20 8 ships same day
3 172-9233 Emergency stop button $237.57 1 usually ships 16-41 days
4 172-8828 Battery cable $42.65 3 ships same day
5 172-0103 Electrical mount $12.18 3 usually ships 1-5 days
6 272-1545 Screw 10-24 X 5/8 $4.78 4 usually ships 1-5 days
7 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 4 ships same day
8 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
9 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 3 ships same day
10 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
11 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
12 999-0599 Screw 1/4-20 x 1 3/4 pan head phillips stainless steel $1.21 2 ships same day
13 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc $0.99 1 ships same day
14 172-0548 Washer 17/64 x 47/64 flat stainless steel $9.60 2 usually ships 16-41 days
15 172-0346 Stud 1/4-20 $10.90 1 usually ships 16-41 days
16 181-0421 Spacer $12.18 2 usually ships 1-5 days
17 172-0343 Grommet $10.90 2 usually ships 16-41 days
18a 172-1228 Grommet $9.60 1 (standard and EcoFlex) usually ships 1-5 days
18b 172-0343 Grommet $10.90 1 (ST) usually ships 16-41 days
19a 172-8836 150amp fuse $17.41 1 usually ships 16-41 days
19b 991-3061 150amp fuse $38.45 1 usually ships 5-16 days
20a 172-2523 70amp circuit breaker $105.02 1 usually ships 1-5 days
20b 991-1633 70amp circuit breaker $46.08 1 (NON-OEM) usually ships 3-19 days
21 172-0232 Clear boot cap $30.87 1 usually ships 16-41 days
22 997-2102 Cable tie $1.24 9 ships same day
23 997-2101 6 inch cable tie $0.99 9 ships same day
24 272-9374 10amp circuit breaker $21.77 1 ships same day
25 272-3514 Speed control $718.72 1 usually ships 16-41 days
26a 272-6349 Panel $119.48 1 (standard and EcoFlex) usually ships 1-5 days
26b 272-3567 Panel $114.24 1 (ST) usually ships 1-5 days
27 272-8791 Connector assembly $64.29 1 usually ships 16-41 days
28 272-8792 Connector assembly $81.46 1 usually ships 16-41 days
31 272-8794 24V contactor $82.73 1 usually ships 16-41 days
32a 172-2163 24V solenoid 4 post (2 large 2 small) $111.56 1 usually ships 16-41 days
32b 991-1226 24V solenoid 4 post (2 large 2 small) (OBSOLETE) $54.00 1 (NON-OEM) usually ships 6-7 days
33 272-3570 Panel $50.59 1 usually ships 1-5 days
34 272-8795 Seat rod $10.90 1 usually ships 1-5 days
35 272-8796 Gasket $10.90 1 usually ships 1-5 days
36 272-8797 Gasket $10.90 1 usually ships 1-5 days
38 272-8799 Emergency button guard $10.90 1 usually ships 1-5 days
40a 272-3571 Interface panel assembly (OBSOLETE) $949.14 1 (includes 40b, 40e and 40f) (standard and EcoFlex) usually ships 16-41 days
40b 272-3572 Interface panel kit $210.68 1 (membrane switch and interface panel) (standard and EcoFlex) usually ships 1-5 days
40c 272-7195 Interface panel assembly $517.93 1 (includes 40d-40f) (ST) usually ships 16-41 days
40d 272-3573 Interface panel kit $223.87 1 (membrane switch and interface panel) (ST) usually ships 1-5 days
40e 272-2195 Key switch assembly $81.46 1 usually ships 16-41 days
40f 272-2196 Keys (pkg of 2) $38.04 1 ships same day
41 172-2306 Cap plug $10.90 1 usually ships 1-5 days
42 272-8800 Foam insert $10.90 1 usually ships 1-5 days
43 272-3574 Suppressor split $27.53 1 usually ships 1-5 days
N/S 272-3568 Main harness $881.50 1 (standard and EcoFlex) usually ships 1-5 days
N/S 272-3569 Main harness $976.04 1 (ST) usually ships 1-5 days
N/S 272-8793 Traction drive harness $92.60 1 usually ships 1-5 days
N/S 272-8798 Cable assembly $28.94 1 usually ships 1-5 days
