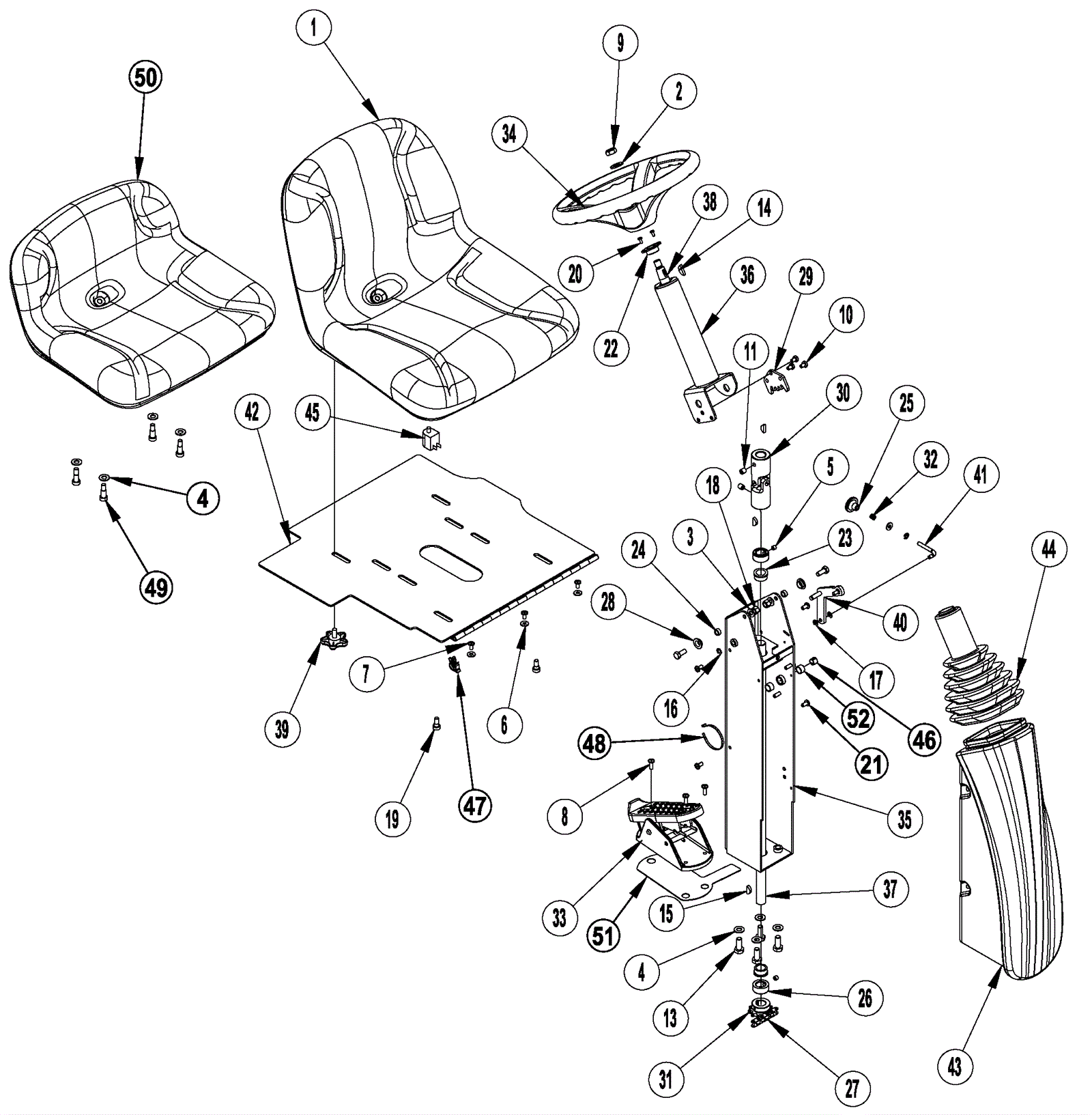

Control Assembly

#PartDescription ReqNotesAvailability
2 999-0114 Washer 1/2 SAE flat 1
3 999-0024 Washer 5/16 flat stainless steel 2
6 999-0123 Washer 1/4 SAE flat zinc plated 4
7 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated 3
9 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated 1
10 272-1538 Bolt 1/4-20 X 3/8 hex head lock 3
11 999-1373 Screw 3/8-16 x 3/8 socket set lock stainless steel 2
12 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 2
13 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel 4
16 172-0294 Retaining ring 1
18 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
19 999-0646 Screw 5/16-18 x 3/8 socket head shoulder 3 (standard and EcoFlex)
24 172-4008 Bushing 2
26 172-0115 Shaft collar 2
27 172-9068 Roller chain 1
29 272-9480 Steering column ratchet 1
30 172-9074 Universal joint 1
32 172-4528 Spring 1
33 272-8880 Foot pedal assembly 1
36 272-8889 Upper column weldment 1
37 272-8890 Lower steering shaft 1
39 272-8881 Knob 1 (standard and EcoFlex)
41 272-8892 Pull lever 1
42 272-3558 Seat panel weldment 1
43 272-8893 Lower column shroud 1
44 272-8894 Steering boot 1
45 272-9417 Seat switch 1
47 172-1793 Clip 1
48 997-2101 6 inch cable tie 1 (ST)
50 172-3430 Seat kit 1 (ST)
51 272-8882 Foot pedal plate 1
52 172-0048 Bearing 2 (ST)
