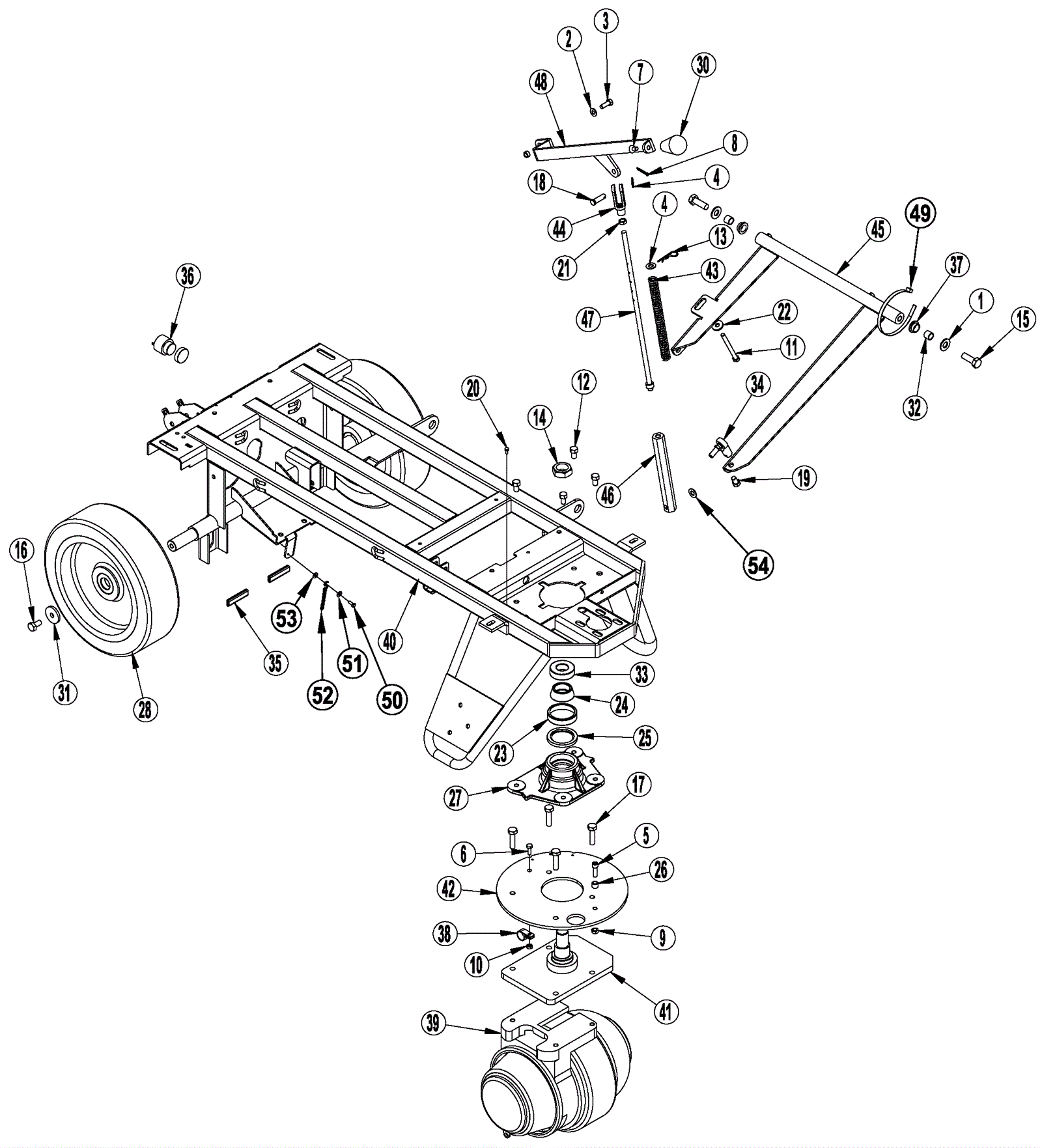

Chassis Assembly - ST

#PartDescription ReqNotesAvailability
2 999-0024 Washer 5/16 flat stainless steel 1
3 999-0601 Screw 5/16-18 x 5/8 pan head phillips zinc plated 1
5 999-0546 Screw 5/16-18 x 1 socket head alloy plain finish 1
6 272-3545 Screw 1/4-20 x 8/9 carriage 1
7 272-0567 Screw 5/16-18 x 3/4 flat phillips 1
8 997-2503 Cotter pin 1/8 x 1 1
10 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
11 172-4367 Screw 5/16 x 18 x 3 1/2 thread to head hex 1
12 272-1652 Bolt 3/8-16 x 5/6 lock 4
14 172-0951 Nut 1-14 hex thin nylock UNF 1
15 999-1128 Bolt M12-1.75 x 35mm hex hd stainless steel part thread 2
16 272-1605 Bolt M10-1.5 x 20mm hex head nylon lock 2
17 272-1624 Bolt M10-1.5 x 40mm hex 4
18 272-8753 Clevis pin 1
20 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc 1
21 999-0169 Nut 3/8-24 hex jam plain finish 1
22 172-2067 Washer 11/32 x 1/8 flat 1
24 172-3316 Bearing cone 1
26 172-0068 Bushing 1
28 172-3283 Wheel and bearing assembly 2
29 172-4008 Bushing 1
30 172-0021 Knob 1
32 172-0024 Bushing 2
33 172-0435 Top bearing 1
34 172-2140 Squeegee pivot kit 1
36 172-8839 Backup alarm 1
37 272-1843 Flanged bearing 2
39a 272-8807 Drive wheel motor 1 (includes 39b-39j)
39d 272-8810 Carbon brush kit 1
39f 272-8811 Parking brake 1
39i 272-8597 Gearbox motor cover 1
40 272-6330 Chassis weldment 1
42 172-3320 Steering plate 1
43 272-3553 Compression spring 1
44 272-3554 Yoke 1
45 272-3555 Linkage weldment 1
47 272-3557 Connecting rod weldment 1
49 997-2102 Cable tie 1
50 999-1369 Screw 10-24 x 1/2 hex head thread cutting stainless steel 1
54 999-0201 Washer 3/8 internal star lock 1
