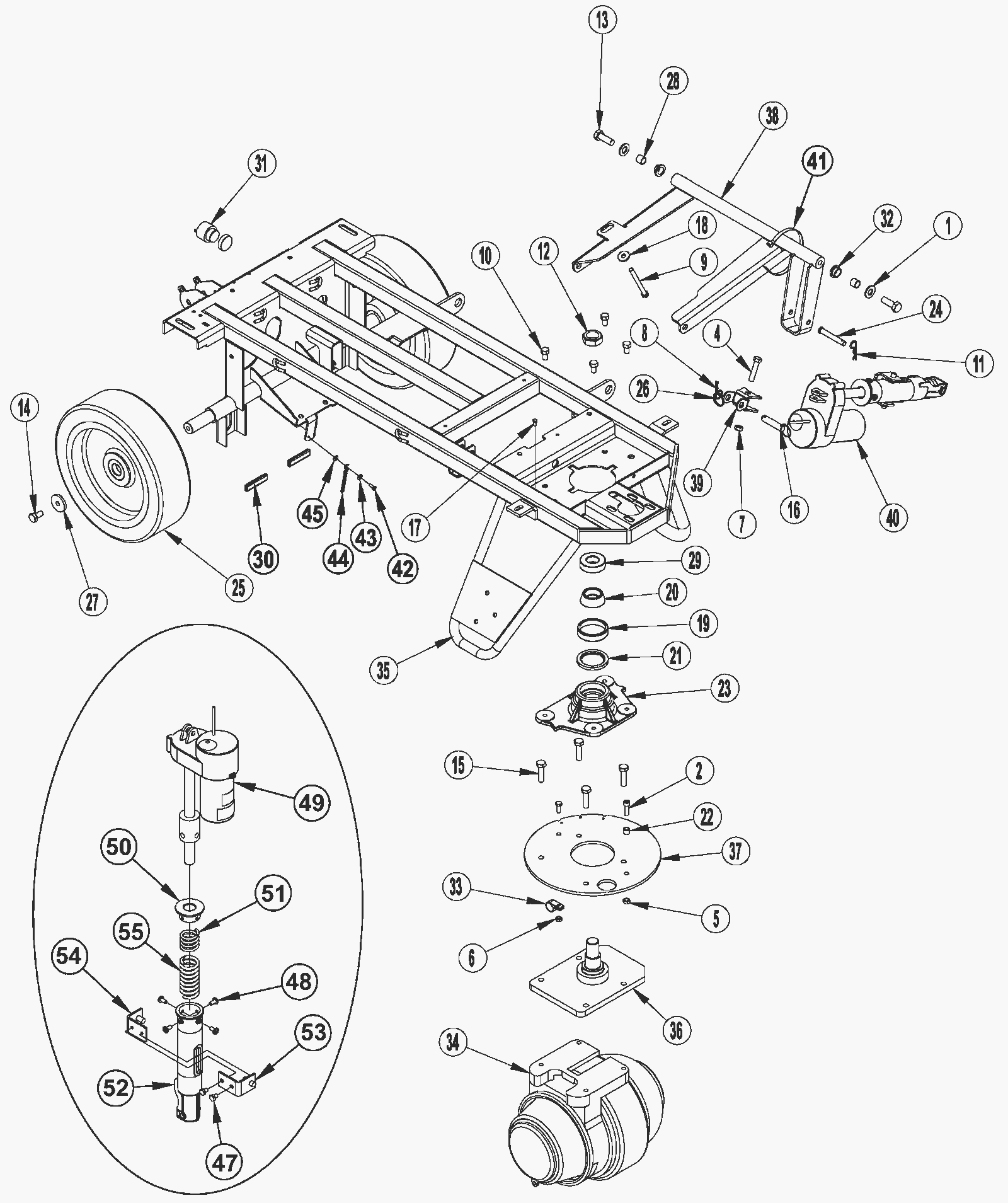

Chassis Assembly - Standard and EcoFlex

#PartDescription ReqNotesAvailability
1 999-0114 Washer 1/2 SAE flat 2
2 999-0546 Screw 5/16-18 x 1 socket head alloy plain finish 1
3 272-3545 Screw 1/4-20 x 8/9 carriage 1
4 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated 1
5 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
6 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
7 999-0188 Nut 3/8-16 nylon insert lock zinc plated 1
8 172-2001 Hair cotter pin 1
9 172-4367 Screw 5/16 x 18 x 3 1/2 thread to head hex 1
10 272-1652 Bolt 3/8-16 x 5/6 lock 4
11 997-2511 Cotter pin 1
12 172-0951 Nut 1-14 hex thin nylock UNF 1
13 999-1128 Bolt M12-1.75 x 35mm hex hd stainless steel part thread 2
14 272-1605 Bolt M10-1.5 x 20mm hex head nylon lock 2
15 272-1624 Bolt M10-1.5 x 40mm hex 4
16 272-2115 Clevis pin 1
17 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc 1
18 172-2067 Washer 11/32 x 1/8 flat 1
19 172-3315 Bearing cup 1
20 172-3316 Bearing cone 1
21 172-3317 Seal 1
22 172-0068 Bushing 1
23 172-3319 Bearing block 1
24 272-3546 Clevis pin 1
25 172-3283 Wheel and bearing assembly 2
26 272-9308 Ring 1
27 272-1606 Washer flat 2
28 172-0024 Bushing 2
29 172-0435 Top bearing 1
30 172-8803 Edge trim 2
31 172-8839 Backup alarm 1
32 272-1843 Flanged bearing 2
33 172-2122 P clamp 1
34a 272-8807 Drive wheel motor 1 (includes 34b-34j)
34b 272-5562 Tire with hub 1
34c 272-8808 Replacement drive motor 1
34d 272-8810 Carbon brush kit 1
34e 272-8809 Tire 1
34f 272-8811 Parking brake 1
34g 272-8604 Tire puller kit 1
34h 272-8598 Drive motor cover 1
34i 272-8597 Gearbox motor cover 1
34j 272-8813 Brake lever kit 1
35 272-6330 Chassis weldment 1
36 272-8814 Spindle weldment 1
37 172-3320 Steering plate 1
38 272-3549 Linkage weldment 1
39 272-3550 Actuator yoke 1
40 272-3551 Lift actuator assembly 1 (includes 47-55)
41 997-2102 Cable tie 1
42 999-1369 Screw 10-24 x 1/2 hex head thread cutting stainless steel 1
43 999-1862 Washer #10 flat SAE stainless steel 1
44 272-8757 Ground chain 1
