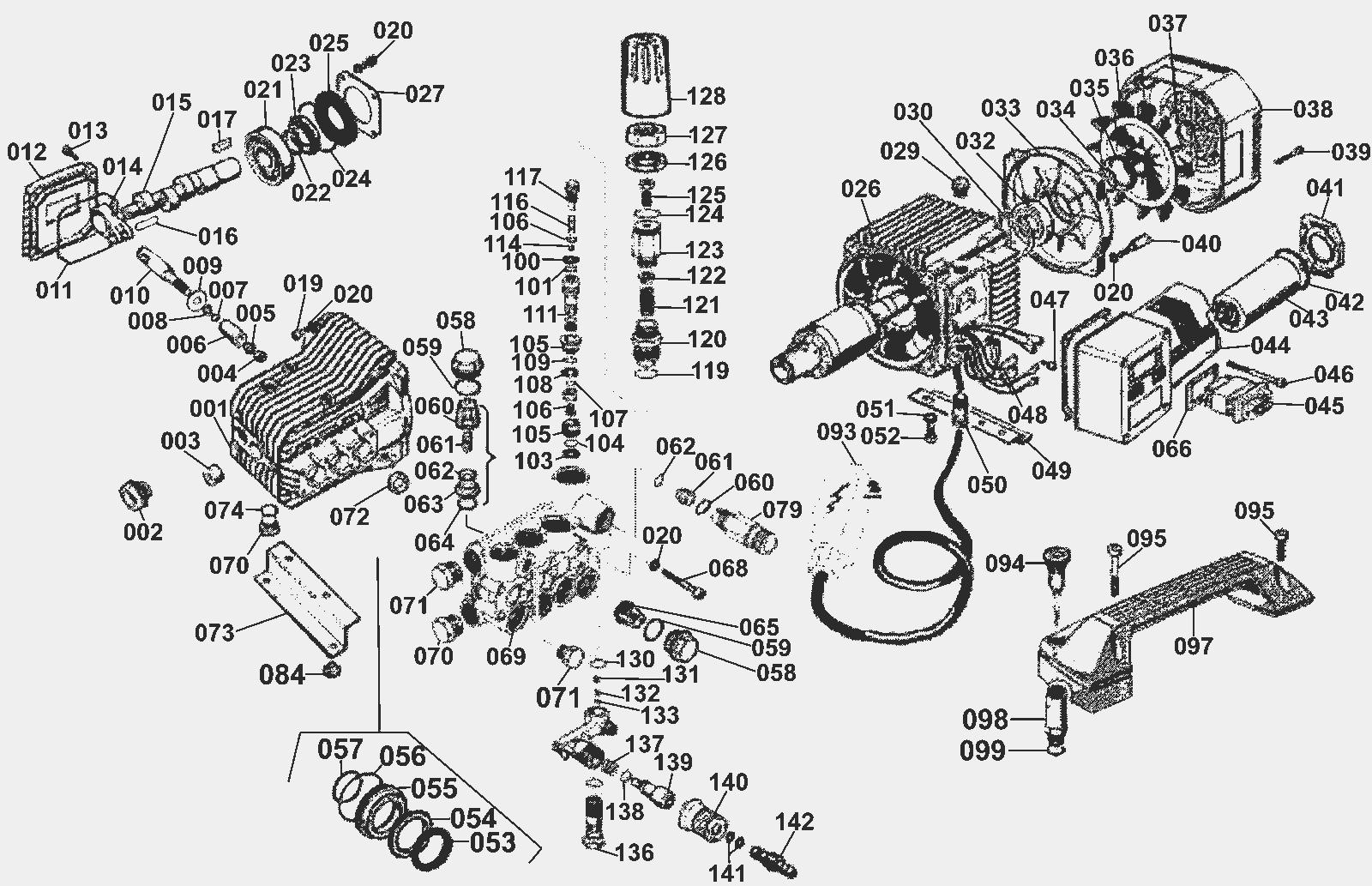

Entire Assembly

#PartDescription ReqNotesAvailability
1 N/A Not available 1 (Crankcase)
2 208-0078 Sight glass 1
3 N/A Not available 1 (Needle bearing)
4 208-0080 Nut 3
5 208-0081 Copper washer 3
6 208-0082 15mm Plunger 3
7 208-0083 O-ring 3
8 208-0084 Anti-ext ring 3
9 208-0229 Flinger washer 3
10 N/A Not available 3 (Piston guide)
11 N/A Not available 1 (O-ring)
12 208-0086 Back cover 1
13 208-0087 Screw 4
14 N/A Not available 3 (Connecting rod)
15 N/A Not available 1 (Crankshaft)
16 N/A Not available 3 (Wrist pin)
17 N/A Not available 1 (Key)
19 N/A Not available 4 (Screw)
20 N/A Not available 20 (Washer)
21 N/A Not available 1 (Bearing)
22 N/A Not available 1 (Clip)
23 N/A Not available 1 (Seal)
24 N/A Not available 1 (O-ring)
25 N/A Not available 1 (Spacer)
26 N/A Not available 1 (Plate)
27 N/A Not available 4 (Screw)
28 N/A Not available 1 (Rotor)
29 N/A Not available 1 (Stator)
30 208-0230 Plug 1
31 N/A Not available 1 (Clip)
32 N/A Not available 1 (Bearing)
33 N/A Not available 1 (Back cover)
34 208-0231 O ring 1
35 208-0232 Tensioner 1
36 208-0233 Fan 1
37 208-0234 Clip 1
38 208-0235 Fan cover 1
39 208-0236 Screw M5 x 45mm 4
40 208-0237 Stud screw M5 4
41 208-0238 Capacitor cover 1
42 208-0239 O ring 1
43a 208-0210 Capacitor 2HP motor 1
43b 208-0240 Capacitor 1.5HP motor 1
44 208-0241 Electrical cover (OBSOLETE) 1
45 208-0242 Screw M5 x 65mm 4
46a 208-0243 Switch 2HP motor 1
46b 208-0244 Switch 1.5HP motor 1
47 208-0204 Ground screw 1
48 208-0205 Ground washer 1
49 208-0209 Back foot 1
50 208-0206 Strain relief 1
51 208-0207 Washer 4
52 208-0208 Screw M8 x 16 4
53 N/A Not available 3 (15mm head ring)
54 N/A Not available 3 (15mm HP seal)
55 208-0245 Intermediate ring 3
56 N/A Not available 3 (O-ring)
57 N/A Not available 3 (LP seal ring)
58 208-0246 Valve cap 6
59 208-0076 O-ring 6
60 N/A Not available 6 (Valve cage)
61 N/A Not available 6 (Valve spring)
62 N/A Not available 6 (Valve poppet)
63 N/A Not available 6 (Valve seat)
64 N/A Not available 6 (O-ring)
65 N/A Not available 6 (Valve assembly)
68 208-0075 Head bolt 8
69a 208-0247 Brass manifold 1
69b 208-0071 Aluminum nickle manifold 1
70 208-0090 Plug 2
71 208-0072 1/4 Inch plug 2
73 208-0248 Front foot 1
74 208-0091 O-ring 1
79 208-0115 M22 nipple 1
80 N/A Not available 1 (O-ring)
81 208-0116 2mm Nozzle 1
82 N/A Not available 1 (O-ring, nozzle)
84 208-0249 Pad 4
85 208-0250 Gasket 1
86 208-0251 Switch gasket 1
93 208-0052 GFCI receptacle 1
94a 208-0256 Dipstick with handle 1
94b 208-0079 Dipstick 1
95 208-0252 Screw M8 x 50mm 2
96 208-0253 Screw M8 x 25mm 2
97 208-0254 Handle 1
98 208-0255 Dipstick tube 1
99 208-0091 O-ring 1
100 N/A Not available 2 (Anti-ext ring)
101 N/A Not available 2 (O-ring)
102 N/A Not available 1 (Seat)
103 N/A Not available 1 (Screw)
104 N/A Not available 1 (Spherical valve)
105 N/A Not available 3 (O-ring)
106 N/A Not available 1 (Anti-ext ring)
107 N/A Not available 1 (O-ring)
108 N/A Not available 1 (Guide)
109 N/A Not available 1 (Anti-ext ring)
111 N/A Not available 1 (Piston)
114 N/A Not available 1 (Ball)
116 N/A Not available 1 (Spring)
117 N/A Not available 1 (Stem)
118 N/A Not available 1 (O-ring)
119 N/A Not available 1 (Guide)
120 208-0098 Spring 1
121 208-0095 Spring plate 1
122 208-0099 Regulator knob 1
123 208-0100 O-ring 1
124 208-0101 Screw M8 set 1
125 208-0102 Nut M8 1
126 208-0103 Lock nut 1
127 208-0104 Lock sleeve 1
128 208-0105 Handle 1
130 N/A Not available 1 (O-ring)
131 N/A Not available 1 (Conical sphere)
132 N/A Not available 1 (Ball)
133 N/A Not available 1 (O-ring)
134 208-0108 Injector 1
135 N/A Not available 1 (O-ring)
136 208-0211 Valve seat 1
137 N/A Not available 1 (Spring)
138 208-0110 O-ring 1
139 208-0111 Shutter 1
140 208-0112 Knob 1
141 208-0113 O-ring 2
142 208-0114 Hose barb 1
N/S 208-0061 Gun 1
N/S 991-4005 3/8 inch rubber o-ring for high pressure (between nozzle and wand)
