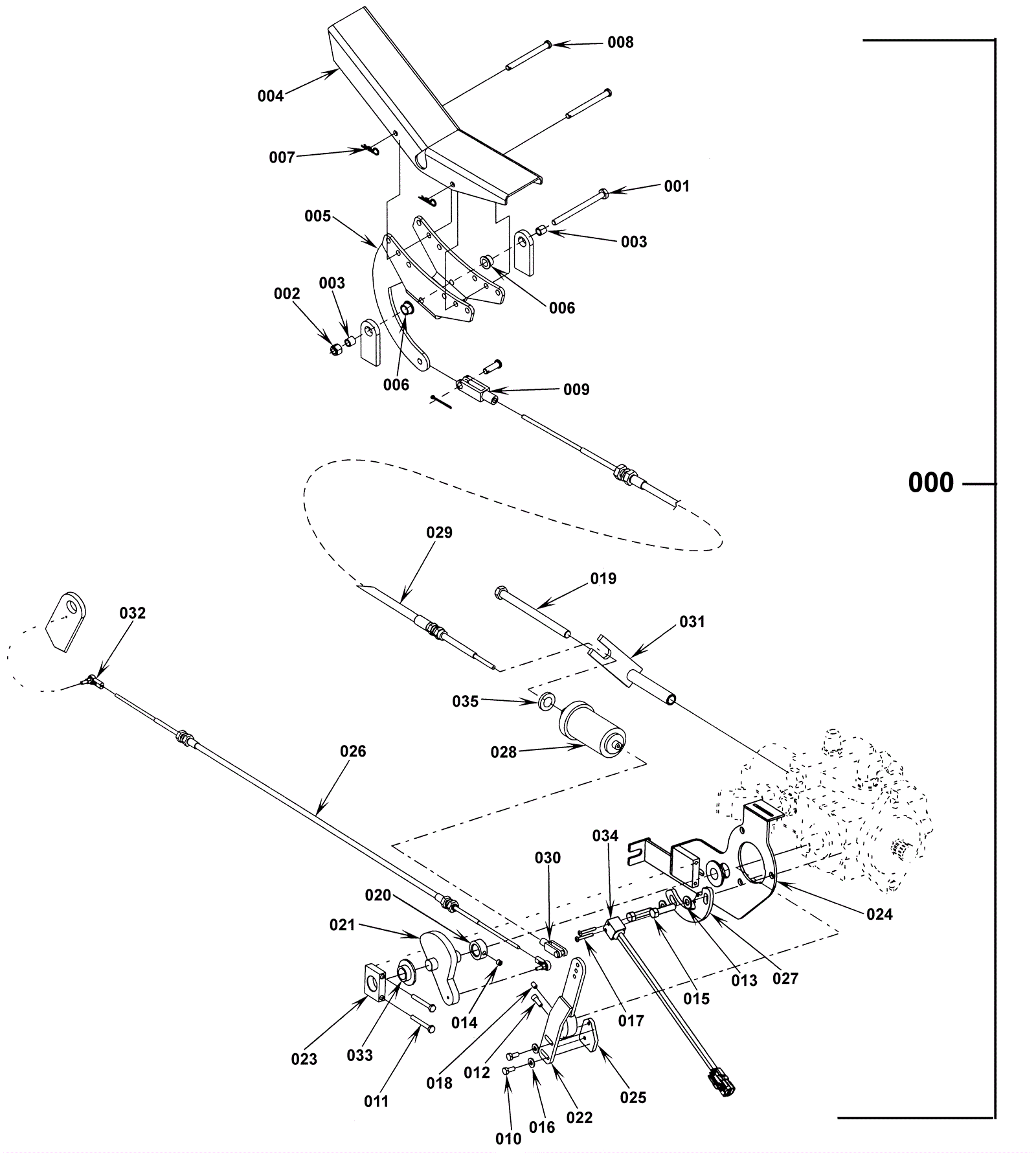

| # | Part | Description |
Req | Notes | Availability |
|---|
000a |
272-2936
|
Throttle pedal assembly (OBSOLETE) |
1 |
|
|
000b |
272-3264
|
Linkage assembly (OBSOLETE) |
1 |
|
|
001 |
999-0362
|
Bolt 1/4-20 x 3 1/4 hex head grade 5 zinc plated |
1 |
|
|
002 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
1 |
|
|
003 |
N/A
|
Not available |
2 |
|
|
004 |
272-3447
|
Pedal weldment (OBSOLETE) |
1 |
|
|
005 |
272-3448
|
Pedal weldment |
1 |
|
|
006 |
272-3449
|
Flange bearing |
2 |
|
|
007 |
172-4443
|
Pin .059 x .375 cot hair |
2 |
|
|
008 |
172-4922
|
Clevis pin 1/4 x 2 3/4 |
2 |
|
|
009 |
272-3451
|
Clevis assembly |
2 |
|
|
010 |
999-0019
|
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
2 |
|
|
011 |
999-1892
|
Screw 1/4-20 x 2 hex cap stainless steel |
2 |
|
|
012 |
999-0198
|
Screw 1/4-20 x 1 1/4 socket cap alloy plain finish |
1 |
|
|
013 |
999-0120
|
Washer 3/8 SAE flat |
2 |
|
|
014 |
999-0346
|
Screw 5/16-18 x 1/4 set cup point socket alloy plain finish |
1 |
|
|
015 |
999-0649
|
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
2 |
|
|
016 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
017 |
999-0852
|
Screw 8-32 x 1 1/4 truss head slotted stainless steel |
2 |
|
|
018 |
272-1454
|
Screw 1/4-20 X 3/8 socket set lock |
1 |
|
|
019 |
272-1531
|
Bolt 3/8-16 X 6-1/2 |
1 |
|
|
020 |
172-0115
|
Shaft collar |
1 |
|
|
021 |
N/A
|
Not available |
1 |
|
|
022 |
272-3452
|
Arm weldment |
1 |
|
|
023 |
N/A
|
Not available |
1 |
|
|
024 |
N/A
|
Not available |
1 |
|
|
025 |
272-3453
|
Cam plate |
1 |
|
|
026 |
272-3454
|
Push/pull cable |
1 |
|
|
027 |
272-3455
|
Neutral safety switch mount |
1 |
|
|
028 |
272-3456
|
Hydroback |
1 |
|
|
029 |
272-3457
|
Control cable (OBSOLETE) |
1 |
|
|
030 |
272-3451
|
Clevis assembly |
1 |
|
|
031 |
272-3459
|
Bracket weldment (OBSOLETE) |
1 |
|
|
032 |
172-0207
|
Rod end #10 |
2 |
|
|
033 |
172-2294
|
Flanged bearing (OBSOLETE) |
2 |
|
|
034 |
272-3460
|
Sealed ball switch |
1 |
|
|
035 |
999-0349
|
Washer 5/8 SAE flat |
1 |
|
|
