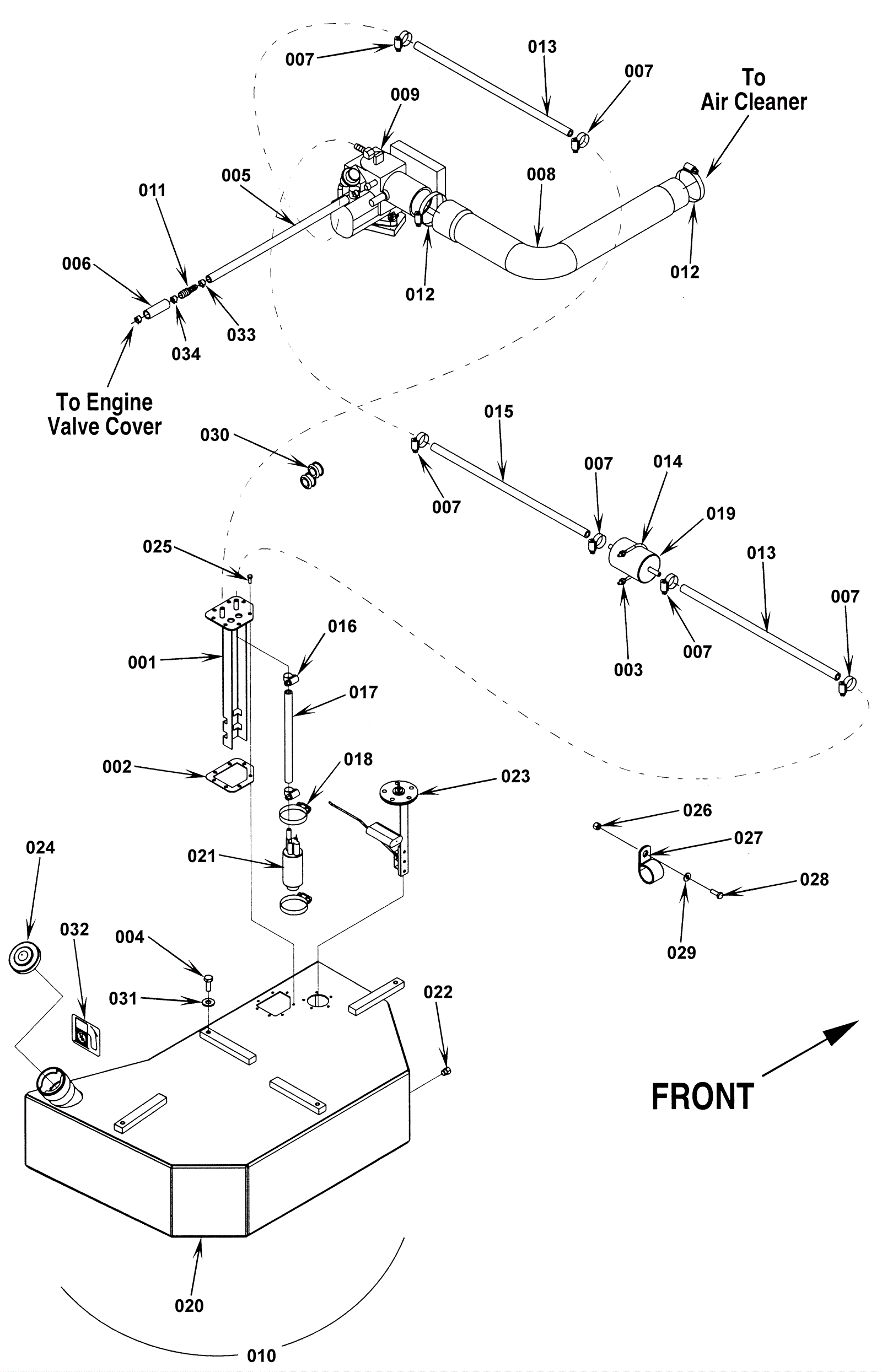

Gasoline Assembly

#PartDescription ReqNotesAvailability
000 272-3266 Gasoline assembly (OBSOLETE) 1
001 272-3311 Fuel pump bracket (OBSOLETE) 1
002 272-3312 Gasket 1
003 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
004 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 4
005 172-0212 Hose tube (sold by the foot) 14 in
006 N/A Not available 2 in
007 997-2002 Hose clamp #6 6
008 272-3262 Air inlet hose (OBSOLETE) 1
009a 272-3313 Gasoline injection assembly (OBSOLETE) 1
009b 275-4074 VR, SEAL KIT, VALVE, HYD [CEC] (Tennant Industrial)
010 272-3316 Fuel tank assembly (OBSOLETE) 1
011 272-2172 Reducer barb 1
012 997-2003 Hose clamp 2
013 272-3317 Fuel line hose 2
014 272-3318 U-bolt 1
015 272-3319 Fuel line hose 1
017 272-3286 Hose 1
018 997-2000 Hose clamp 2
019 272-3320 Fuel filter (OBSOLETE) 1
020 272-3321 Fuel tank weldment (OBSOLETE) 1
021a 272-3322 Fuel pump 1
021b 272-3323 Fuel pump assembly (OBSOLETE) 1
022 272-3324 Hex pipe plug 1
023 272-3325 Fuel level sender 1
024 272-3326 Fuel tank cap vented 1
025 999-1369 Screw 10-24 x 1/2 hex head thread cutting stainless steel 7
026 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
027 172-9261 P clamp 1
028 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 1
029 999-0123 Washer 1/4 SAE flat zinc plated 1
030 272-3328 Grommet 2
031 999-0024 Washer 5/16 flat stainless steel 4
032 172-5459 Unleaded fuel decal 1
033 272-3330 Hose band clamp 2
034 272-3331 Hose band clamp (OBSOLETE) 2
