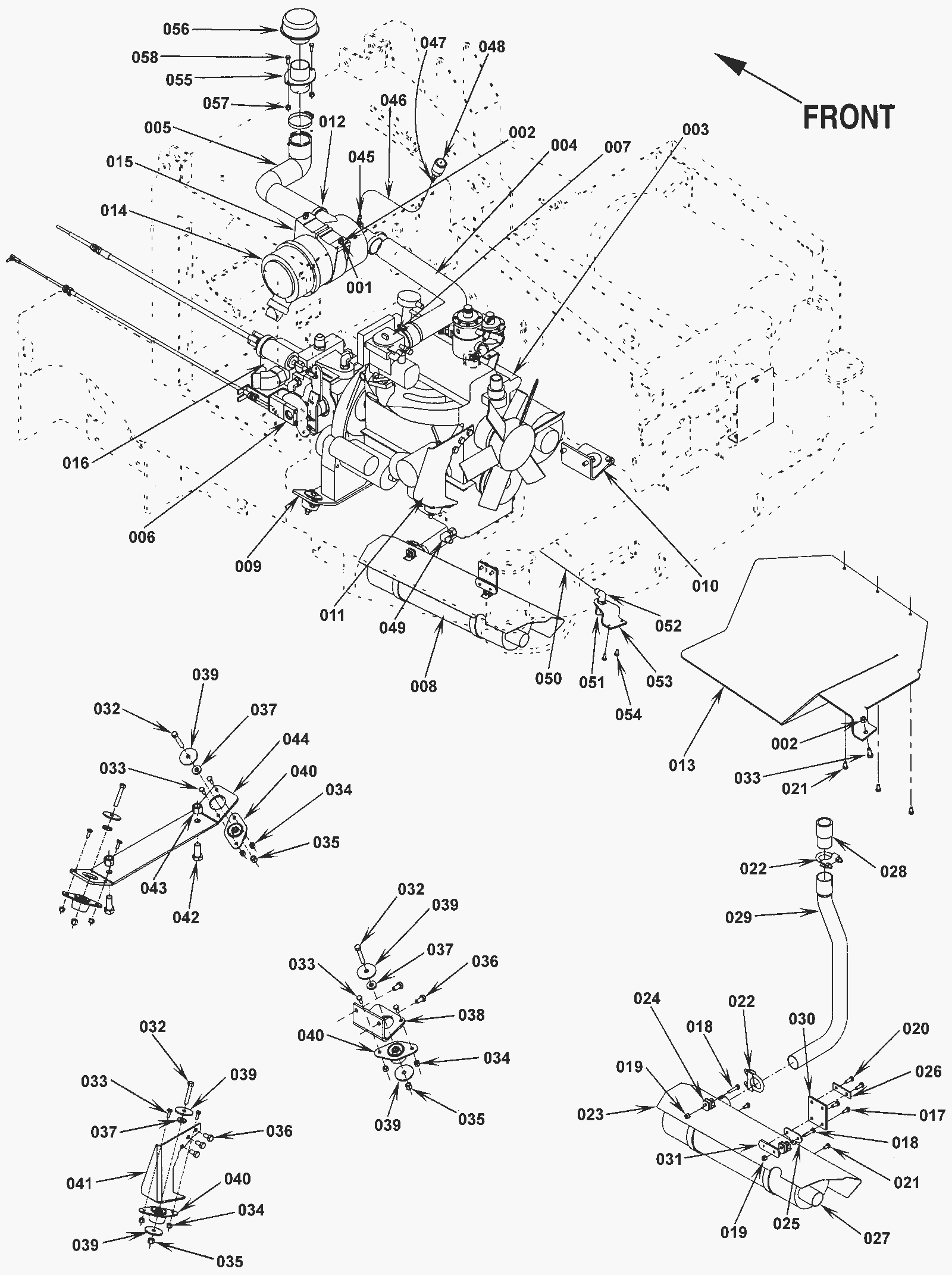

RETRIEVER 2060 Engine Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
002 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 3 ships same day
003 272-3261 Engine (OBSOLETE) $11,788.11 1 usually ships 1-5 days
004 272-3262 Air inlet hose (OBSOLETE) $89.10 1 usually ships 1-5 days
005 272-3263 Flexible air inlet hose $58.30 1 usually ships 1-5 days
006 272-3264 Linkage assembly (OBSOLETE) $904.66 1 usually ships 1-5 days
007a 272-3265 Propane assembly (OBSOLETE) $6,432.80 1 usually ships 1-5 days
007b N/A Not available Call for price 1 usually ships 3-26 days
007c 272-3266 Gasoline assembly (OBSOLETE) $5,635.96 1 usually ships 1-5 days
008 N/A Not available Call for price 1 usually ships 3-26 days
009 N/A Not available Call for price 1 usually ships 3-26 days
010 272-3267 Left engine mount assembly $434.50 1 usually ships 1-5 days
011 272-3268 Right engine mount assembly (OBSOLETE) $80.19 1 usually ships 1-5 days
012 997-2003 Hose clamp $2.66 1 ships same day
013 272-3269 Fuel tank guard weldment (OBSOLETE) $192.72 1 usually ships 1-5 days
014 272-3270 Air cleaner $444.17 1 usually ships 1-5 days
015 272-3273 Band assembly $51.21 1 usually ships 1-5 days
016 N/A Not available Call for price 1 usually ships 3-26 days
017 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 2 ships same day
018 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
019 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
020 999-0275 Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling $0.99 2 ships same day
021 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc $0.99 5 ships same day
022 272-3274 Muffler clamp $46.00 2 usually ships 1-5 days
023 272-3275 Heat shield $145.97 1 usually ships 1-5 days
024 272-3276 Clamp weldment $95.70 2 usually ships 1-5 days
025 272-3277 Muffler hanging plate (OBSOLETE) $9.35 1 usually ships 1-5 days
026 272-3046 Right broom housing strap $8.80 1 usually ships 1-5 days
027 N/A Not available Call for price 1 (Muffler) usually ships 3-26 days
028 N/A Not available Call for price 1 usually ships 3-26 days
029 272-3279 Exhaust pipe weldment (OBSOLETE) $196.46 1 usually ships 1-5 days
030 272-3280 Mount $27.93 1 usually ships 1-5 days
031 272-3281 Nut plate (OBSOLETE) $26.73 1 usually ships 1-5 days
032 999-0834 Screw 3/8-16 x 2 1/4 hex head plain finish $0.99 4 ships same day
033 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 9 ships same day
034 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
035 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 9 ships same day
036 272-1605 Bolt M10-1.5 x 20mm hex head nylon lock $12.31 8 usually ships 17-28 days
037 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
038 272-3282 Left engine mount bracket (OBSOLETE) $198.22 5 usually ships 1-5 days
039 999-0328 Washer 7/16 USS flat $0.99 4 ships same day
040 272-3283 Isolator mount $80.27 1 usually ships 1-5 days
041 272-3284 Right engine mount bracket $42.35 6 usually ships 1-5 days
042 272-1650 Bolt 5/8-11 X 1 1/2 hex lock (OBSOLETE) $12.31 4 usually ships 1-5 days
043 272-0516 Nut 5/8-11 hex nylock thin $7.70 1 usually ships 1-5 days
044 N/A Not available Call for price 2 usually ships 3-26 days
045 272-3285 Adapter 5/16 - 18 NPT barb (OBSOLETE) $7.92 2 usually ships 1-5 days
046 272-3286 Hose $32.69 1 usually ships 1-5 days
047 272-3287 Hose female barb (OBSOLETE) $7.92 1 usually ships 17-28 days
048 272-3288 Service indicator $120.08 1 usually ships 17-28 days
049 272-3289 90 degree flare elbow (OBSOLETE) $40.48 1 usually ships 1-5 days
050 272-3290 Hose (OBSOLETE) $52.47 1 usually ships 1-5 days
051 272-3291 Flare tube end cap $10.01 1 usually ships 1-5 days
052 272-3292 Union #6 elbow (OBSOLETE) $17.82 1 usually ships 1-5 days
053 272-3293 Oil drain bracket (OBSOLETE) $54.45 1 usually ships 1-5 days
054a 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc $0.99 2 ships same day
054b 272-3294 Inlet hood assembly (OBSOLETE) $219.78 1 usually ships 1-5 days
055 272-3295 Flange weldment (OBSOLETE) $27.50 1 usually ships 1-5 days
056 272-3296 Inlet hood $91.00 1 usually ships 1-5 days
057 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
058 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 2 usually ships 12-18 days
