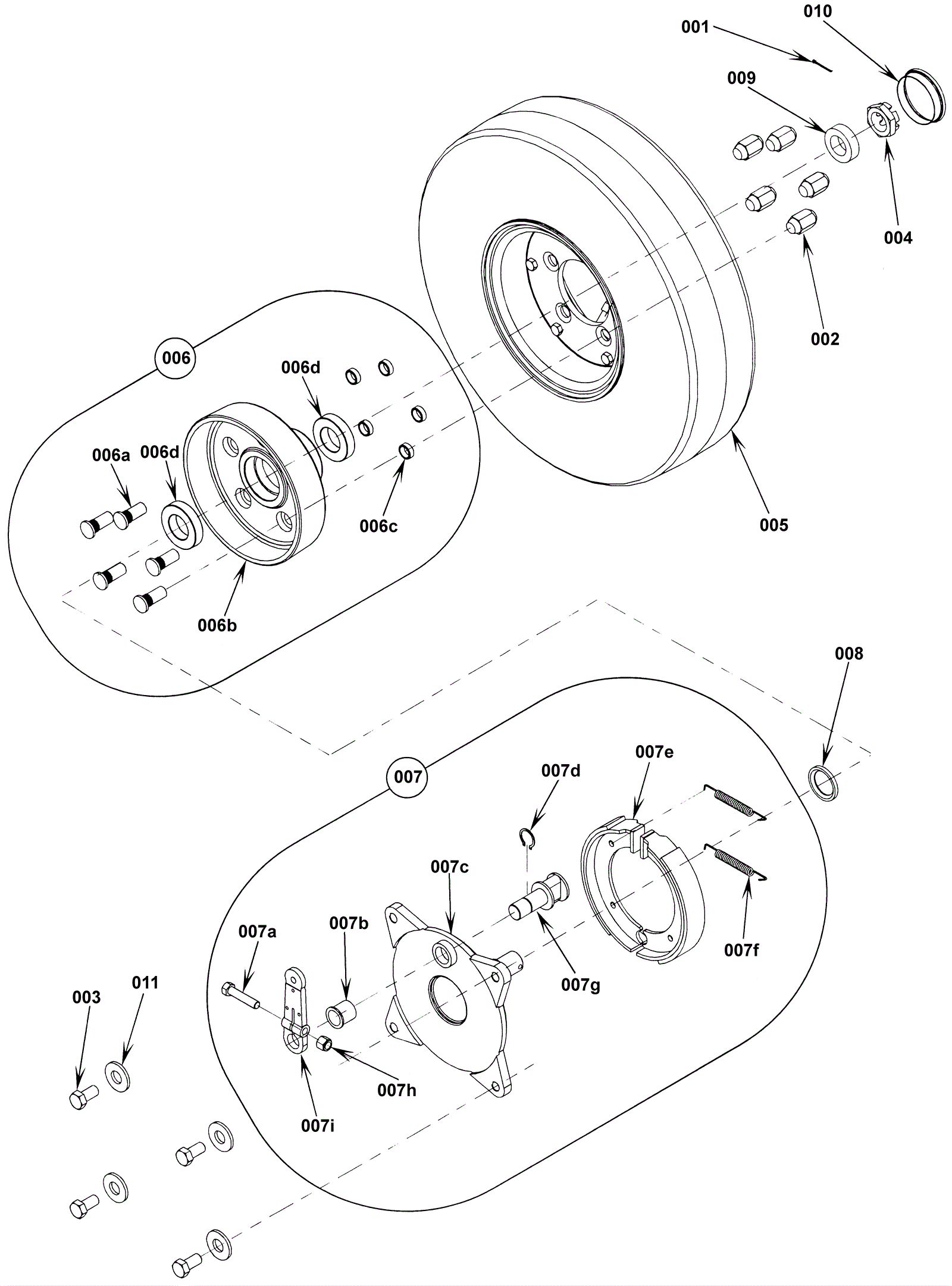

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
172-5116
|
Cotter pin .19 x 1.75 |
1 |
|
|
002 |
272-1610
|
Nut lug |
5 |
|
|
003 |
999-0076
|
Bolt 1/2-20 x 1 hex head grade 5 plain finish |
4 |
|
|
004 |
272-3064
|
Nut 1-14 hex castle thin |
1 |
|
|
005 |
272-3065
|
Tire assembly (OBSOLETE) |
1 |
|
|
006a |
272-3068
|
Front hub assembly (OBSOLETE) |
1 |
|
|
006b |
272-3069
|
Stud M14 - 1 1/2 x 35.3 |
5 |
|
|
006c |
272-3070
|
Front hub (OBSOLETE) |
1 |
|
|
006d |
272-3071
|
Bushing 3/4 x 9/16 x 19/64 |
5 |
|
|
006e |
272-3072
|
Ball bearing |
2 |
|
|
007a |
272-3073
|
Brake assembly |
1 |
|
|
007b |
999-0542
|
Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated |
1 |
|
|
007c |
N/A
|
Not available |
1 |
|
|
007d |
N/A
|
Not available |
1 |
|
|
007e |
172-9756
|
Retainer ring |
1 |
|
|
007f |
272-3074
|
Brake shoe |
2 |
|
|
007g |
272-3075
|
Spring |
2 |
|
|
007h |
N/A
|
Not available |
1 |
|
|
007i |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
1 |
|
|
007j |
272-3076
|
Lever |
1 |
|
|
008 |
272-3077
|
Washer adapter |
1 |
|
|
009 |
272-3078
|
Washer thick |
1 |
|
|
010 |
272-3079
|
Hub cap |
1 |
|
|
011 |
999-0114
|
Washer 1/2 SAE flat |
4 |
|
|
