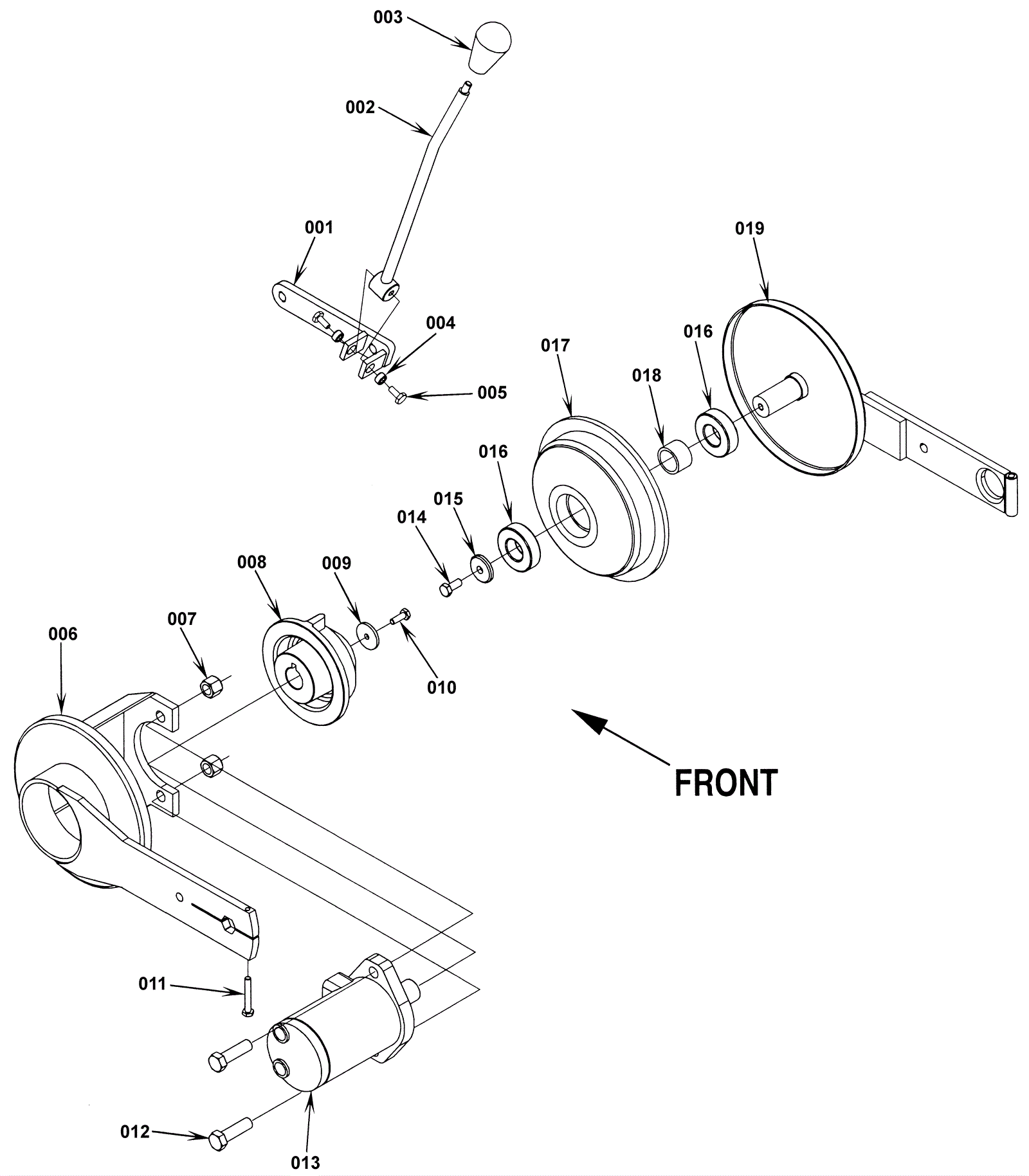

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
272-3044
|
Lift lever assembly (OBSOLETE) |
1 |
|
|
001 |
272-3055
|
Lever weldment (OBSOLETE) |
1 |
|
|
002 |
272-3056
|
Lever weldment (OBSOLETE) |
1 |
|
|
003 |
172-0021
|
Knob |
1 |
|
|
004 |
172-4008
|
Bushing |
2 |
|
|
005a |
999-0030
|
Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated |
2 |
|
|
005b |
272-3043
|
Drive lug assembly (OBSOLETE) |
1 |
|
|
006 |
272-3057
|
Left side arm weldment (OBSOLETE) |
1 |
|
|
007 |
999-0118
|
Nut 1/2-13 nylon insert lock zinc plated |
2 |
|
|
008 |
272-3058
|
Driver hub (OBSOLETE) |
1 |
|
|
009 |
172-3610
|
Washer flat brass |
1 |
|
|
010 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
1 |
|
|
011 |
999-0394
|
Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated |
1 |
|
|
012 |
999-0372
|
Bolt 1/2-13 x 1 3/4 hex head |
2 |
|
|
013a |
272-3059
|
Main broom motor |
1 |
|
|
013b |
272-3060
|
Seal kit |
1 |
|
|
013c |
272-3038
|
Idler hub assembly |
1 |
|
|
014 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
1 |
|
|
015 |
272-1523
|
Washer flat |
1 |
|
|
016 |
172-9411
|
Ball bearing |
2 |
|
|
017 |
272-3934
|
Idler hub |
1 |
|
|
018 |
272-3062
|
Bushing |
1 |
|
|
019 |
272-3063
|
Idler arm weldment |
1 |
|
|
