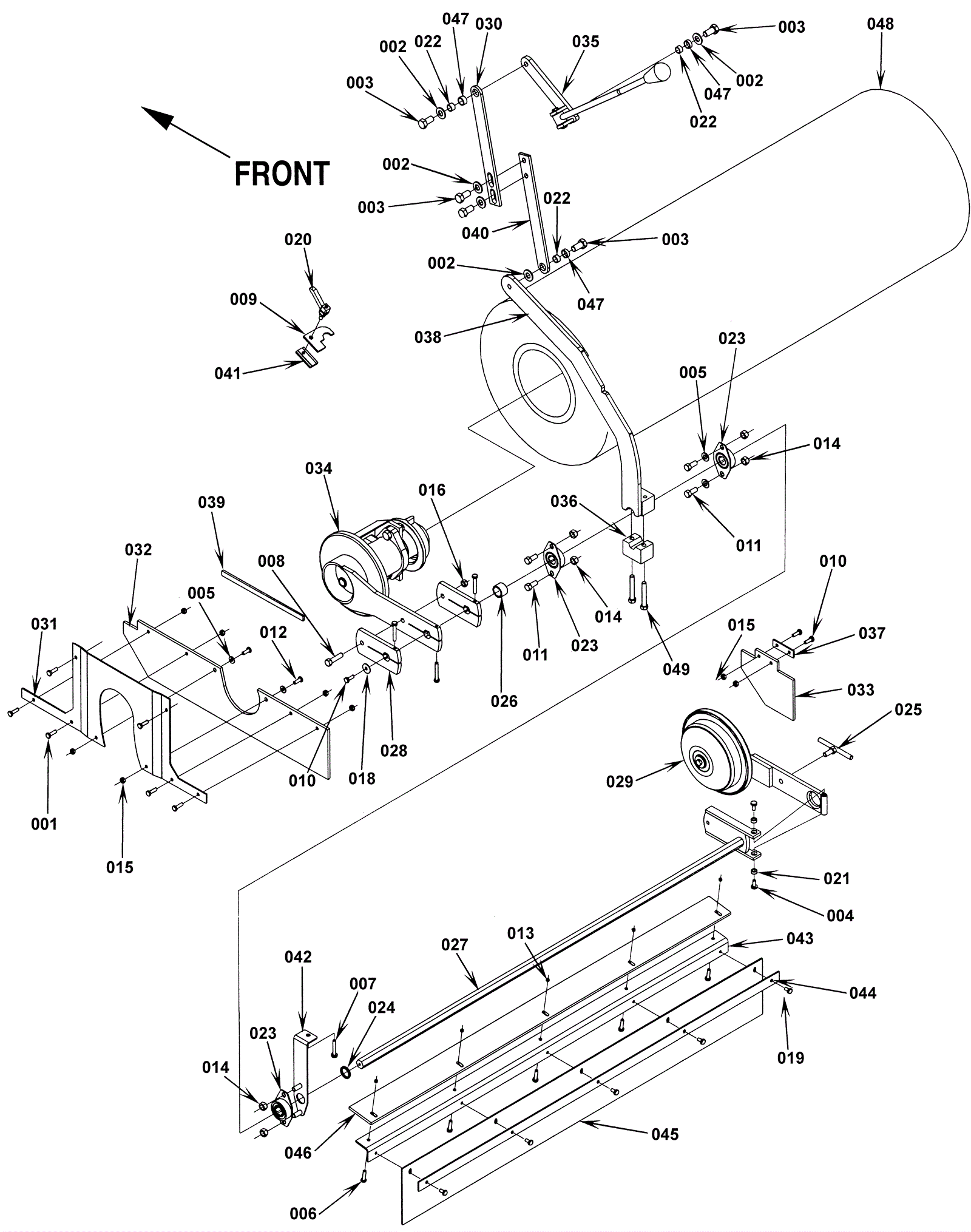

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0822
|
Screw 1/4-20 x 7/8 hex head plain finish |
6 |
|
|
002 |
999-0114
|
Washer 1/2 SAE flat |
5 |
|
|
003 |
999-0281
|
Bolt 1/2-13 x 3/4 hex head grade 5 zinc plated |
5 |
|
|
004 |
999-0030
|
Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated |
2 |
|
|
005 |
999-0120
|
Washer 3/8 SAE flat |
4 |
|
|
006 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
5 |
|
|
007 |
999-0109
|
Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated |
1 |
|
|
008 |
999-0649
|
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
1 |
|
|
009 |
272-3031
|
Broom stop |
1 |
|
|
010 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
3 |
|
|
011 |
999-0812
|
Screw 3/8-16 x 7/8 hex head grade 5 plain finish |
4 |
|
|
012 |
172-4335
|
Screw 1/4-20 x 7/8 flat phillips head |
2 |
|
|
013 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
5 |
|
|
014 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
6 |
|
|
015 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
8 |
|
|
016 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
1 |
|
|
017 |
999-0394
|
Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated |
2 |
|
|
018 |
172-0548
|
Washer 17/64 x 47/64 flat stainless steel |
1 |
|
|
019 |
999-0273
|
Screw 1/4-20 x 1/2 hex washer head thread rolling zinc |
5 |
|
|
020 |
272-3030
|
Adjustable handle |
1 |
|
|
021 |
172-4008
|
Bushing |
2 |
|
|
022 |
172-0139
|
Bushing |
3 |
|
|
023 |
272-3032
|
Bearing, hex flange (OBSOLETE) |
3 |
|
|
024 |
272-3033
|
Shaft spacer (OBSOLETE) |
1 |
|
|
025 |
272-3034
|
Broom arm nut weldment |
1 |
|
|
026 |
272-3035
|
Spacer shaft (OBSOLETE) |
1 |
|
|
027 |
272-3036
|
Right hex arm weldment (OBSOLETE) |
1 |
|
|
028 |
272-3037
|
Hex broom arm (OBSOLETE) |
2 |
|
|
029 |
272-3038
|
Idler hub assembly |
1 |
|
|
030 |
272-3039
|
Lift link (OBSOLETE) |
1 |
|
|
031 |
272-3040
|
Left access plate (OBSOLETE) |
1 |
|
|
032 |
272-3041
|
Left skirt |
1 |
|
|
033 |
272-3042
|
Broom housing skirt |
1 |
|
|
034 |
272-3043
|
Drive lug assembly (OBSOLETE) |
1 |
|
|
035 |
272-3044
|
Lift lever assembly (OBSOLETE) |
1 |
|
|
036 |
272-3045
|
Hex clamp block (OBSOLETE) |
1 |
|
|
037 |
272-3046
|
Right broom housing strap |
1 |
|
|
038 |
272-3047
|
Lift link weldment (OBSOLETE) |
1 |
|
|
039 |
272-3048
|
RS strip gasket (OBSOLETE) |
1 |
|
|
040 |
N/A
|
Not available |
1 |
|
|
041 |
272-3004
|
Broom stop |
1 |
|
|
042 |
272-3049
|
Broom adjuster weldment (OBSOLETE) |
1 |
|
|
043 |
272-3050
|
Support blade (OBSOLETE) |
1 |
|
|
044 |
272-3051
|
Squeegee blade strap (OBSOLETE) |
1 |
|
|
045 |
272-3052
|
Broom housing blade (OBSOLETE) |
1 |
|
|
046 |
272-3053
|
Internal broom housing blade (OBSOLETE) |
1 |
|
|
047 |
172-0079
|
Sleeve bearing (OBSOLETE) |
3 |
|
|
048 |
272-3054
|
Main broom 8 row polypropylene (OBSOLETE) |
1 |
|
|
049 |
999-0390
|
Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated |
2 |
|
|
