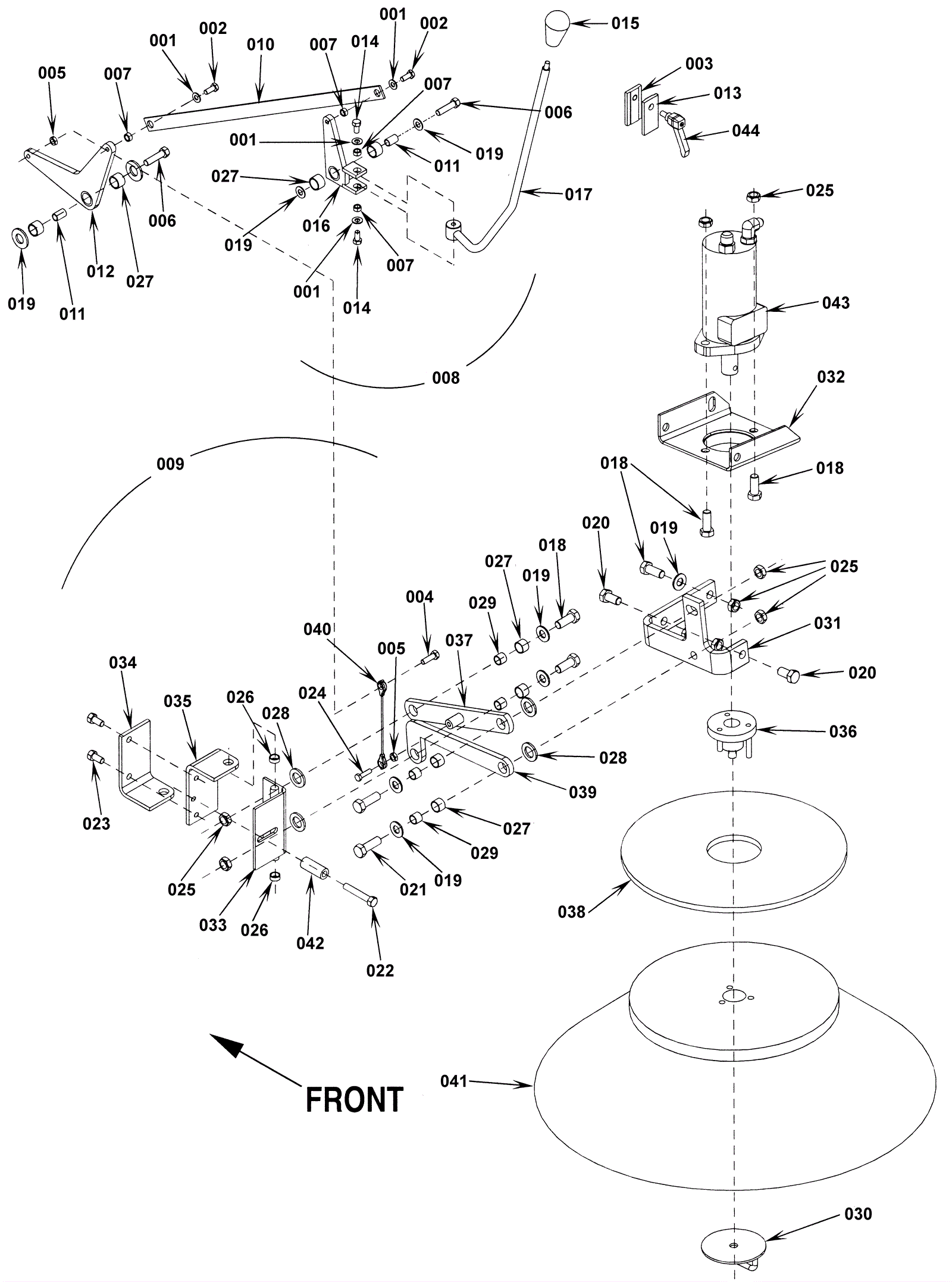

Side Broom System

#PartDescription ReqNotesAvailability
001 999-0024 Washer 5/16 flat stainless steel 4
002 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 2
003 272-3004 Broom stop 1
004 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated 1
006 999-0261 Bolt 1/2-13 x 2 hex head grade 5 2
007 172-4008 Bushing 4
008 272-3005 Side broom lift lever assembly 1
009 272-3006 Side broom assembly (OBSOLETE) 1
010 272-3007 Linkage (OBSOLETE) 1
011 272-3008 Bushing 3/8 x 1/2 x 25/32 2
012 N/A Not available 1
013 272-3009 Broom stop 1
014 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 2
015 172-0021 Knob 1
016 272-3010 Lever weldment 1
017 272-3011 Lever weldment 1
018 999-0200 Bolt 1/2-13 x 1 1/4 hex head 5
019 999-0114 Washer 1/2 SAE flat 9
020 999-0837 Bolt 1/2-13 x 1 hex head low carbon plain finish 2
021 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel 2
022 999-0834 Screw 3/8-16 x 2 1/4 hex head plain finish 1
023 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 2
024 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 1
025 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated 9
026 172-2742 Bushing 2
027 172-0023 Sleeve bearing 8
028 999-1134 Washer 1 1/4 flat stainless steel 4
029 172-0024 Bushing 4
030 272-3012 Thumb nut weldment 1
031 272-3013 Side broom bracket (OBSOLETE) 1
032 272-3014 Bracket weldment (OBSOLETE) 1
033 272-3015 Side broom pivot weldment (OBSOLETE) 1
034 272-3016 Side broom lower bracket 1
035 272-3017 Side broom upper bracket (OBSOLETE) 1
036 272-3018 Side broom hub assembly 1
037 272-3020 Side broom arm weldment 1
038 272-3021 Side broom guard 1
039 272-3022 Lower side broom arm 1
040 272-3023 Side broom cable (OBSOLETE) 1
041a 272-3024 Heavy duty side broom 1
041b 272-3025 Nylon side broom 1
041c 272-3026 Wire side broom (OBSOLETE) 1
042 272-3027 Spring 1
043 272-3028 Side broom motor assembly (OBSOLETE) 1
044 272-3030 Adjustable handle 1
