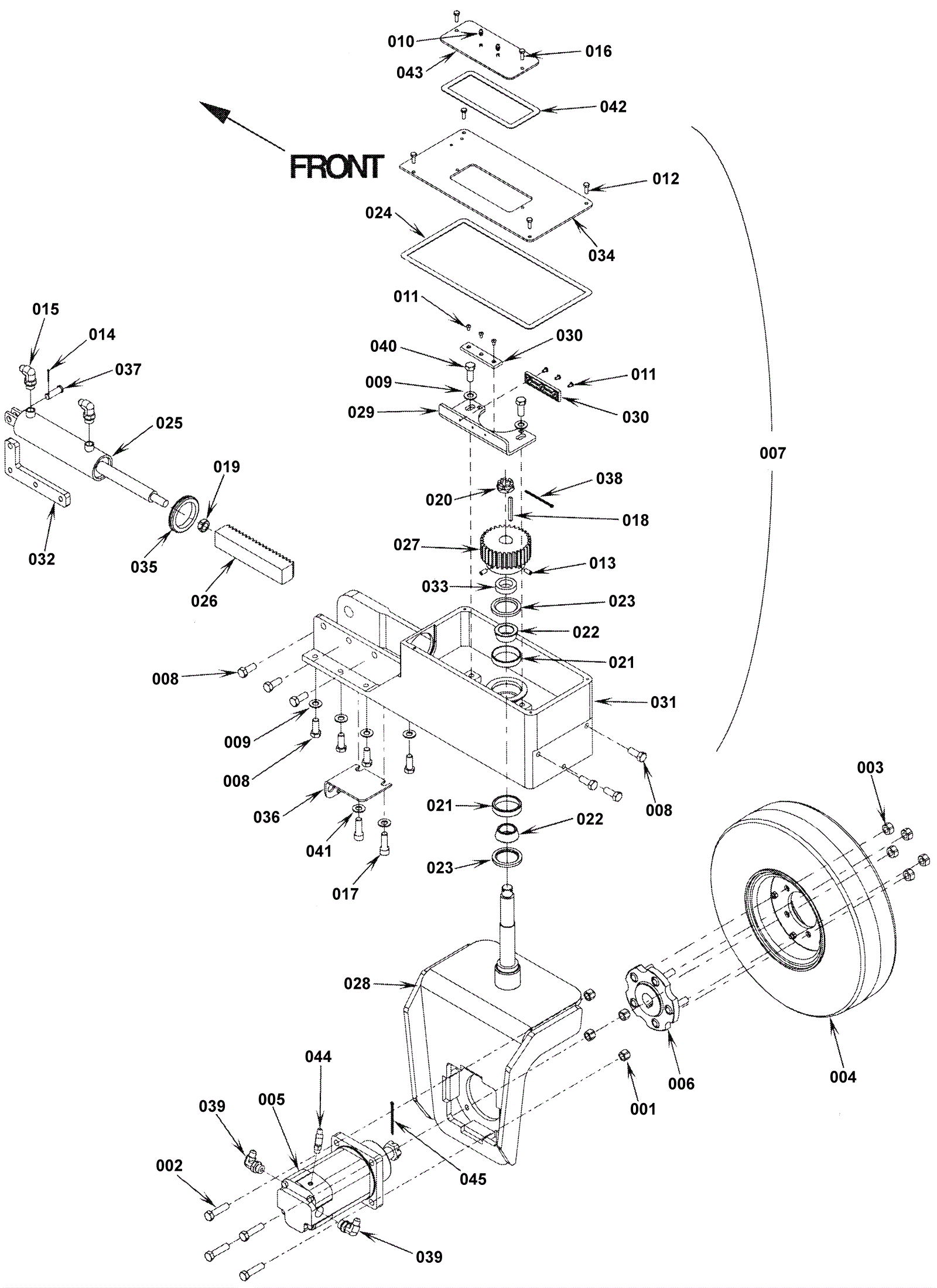

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0118
|
Nut 1/2-13 nylon insert lock zinc plated |
4 |
|
|
002 |
996-0261
|
11 inch medium grit scrubbing brush - 180 grit |
4 |
|
|
003 |
272-1653
|
Nut 1/2-20 lug |
5 |
|
|
004a |
272-2968
|
Tire assembly (OBSOLETE) |
1 |
|
|
004b |
272-2977
|
Cushion tire (OBSOLETE) |
1 |
|
|
004c |
272-2978
|
Non-marking tire (OBSOLETE) |
1 |
|
|
005a |
272-2979
|
Motor wheel |
1 |
|
|
005b |
272-2980
|
Seal kit |
1 |
|
|
007a |
N/A
|
Not available |
1 |
(Before SN 1365892)Machine before SN 1365891 can be updated from 1.25" spindle to a 1.75" spindle by ordering kit # 56419320 |
|
007b |
272-2982
|
Steering assembly (OBSOLETE) |
1 |
After SN 1365891 |
|
008a |
999-0200
|
Bolt 1/2-13 x 1 1/4 hex head |
10 |
(Before SN 1365892)Machine before SN 1365891 can be updated from 1.25" spindle to a 1.75" spindle by ordering kit # 56419320 |
|
008b |
999-0200
|
Bolt 1/2-13 x 1 1/4 hex head |
10 |
After SN 1365891 |
|
009 |
999-0114
|
Washer 1/2 SAE flat |
6 |
|
|
010 |
172-0363
|
Grease fitting |
2 |
|
|
011 |
999-0477
|
Screw 10-24 x 5/16 truss head phillips zinc |
6 |
|
|
012 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
|
013 |
181-0079
|
Screw 5/16-18 x 5/8 socket set lock |
2 |
|
|
014 |
997-2503
|
Cotter pin 1/8 x 1 |
1 |
|
|
015 |
272-2983
|
90 degree elbow |
2 |
|
|
016 |
999-0275
|
Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling |
2 |
|
|
017 |
272-2984
|
Screw 1/2 - 13 x 1 1/2, socket head |
2 |
|
|
018 |
172-2588
|
Key |
1 |
|
|
019 |
181-0988
|
Nut 5/8-18 hex jam lock |
1 |
|
|
020 |
272-1603
|
Nut 7/8-14 castle |
1 |
|
|
021a |
172-3315
|
Bearing cup |
2 |
(Before SN 1365892)Machine before SN 1365891 can be updated from 1.25" spindle to a 1.75" spindle by ordering kit # 56419320 |
|
021b |
272-2985
|
Cup bearing |
2 |
After SN 13655891 |
|
022a |
172-3316
|
Bearing cone |
2 |
(Before SN 1365892)Machine before SN 1365891 can be updated from 1.25" spindle to a 1.75" spindle by ordering kit # 56419320 |
|
022b |
272-2986
|
Cone bearing |
2 |
After SN 13655891 |
|
023a |
172-3317
|
Seal |
2 |
(Before SN 1365892)Machine before SN 1365891 can be updated from 1.25" spindle to a 1.75" spindle by ordering kit # 56419320 |
|
023b |
272-2987
|
Shaft seal |
2 |
After SN 13655891 |
|
024 |
172-0032
|
Gasket 1/16 x 1/2 x 120 (OBSOLETE) |
4 ft |
|
|
025 |
272-2988
|
Hydraulic cylinder (OBSOLETE) |
1 |
|
|
026 |
272-2989
|
Rack (OBSOLETE) |
1 |
|
|
027 |
272-2990
|
Spur gear |
1 |
|
|
028a |
N/A
|
Not available |
1 |
(Before SN 1365892) (Spindle weldment) (Machine before SN 1365891 can be updated from 1.25" spindle to a 1.75" spindle by ordering kit # 56419320) |
|
028b |
272-2992
|
Spindle weldment (OBSOLETE) |
1 |
After SN 13655891 |
|
029 |
272-2993
|
Adjuster angle |
1 |
|
|
030 |
272-2994
|
Wear plate |
2 |
|
|
031a |
N/A
|
Not available |
1 |
(Before SN 1365892)Machine before SN 1365891 can be updated from 1.25" spindle to a 1.75" spindle by ordering kit # 56419320 |
|
031b |
272-2995
|
Casting, steering (OBSOLETE) |
1 |
After SN 13655891 |
|
032 |
272-2996
|
Cylinder bracket |
1 |
|
|
033a |
272-2997
|
Gear spacer (OBSOLETE) |
1 |
(Before SN 1365892)Machine before SN 1365891 can be updated from 1.25" spindle to a 1.75" spindle by ordering kit # 56419320 |
|
033b |
272-2998
|
Gear spacer |
1 |
After SN 13655891 |
|
034 |
272-2999
|
Cover plate (OBSOLETE) |
1 |
|
|
035 |
272-3000
|
Grommet |
1 |
|
|
036 |
272-3001
|
Bulkhead bracket (OBSOLETE) |
1 |
|
|
037 |
272-3002
|
Clevis pin |
1 |
|
|
038 |
172-4328
|
Cotter pin |
1 |
|
|
039 |
272-3003
|
90 degree elbow o-ring |
2 |
|
|
040a |
999-0200
|
Bolt 1/2-13 x 1 1/4 hex head |
2 |
(Before SN 1365892)Machine before SN 1365891 can be updated from 1.25" spindle to a 1.75" spindle by ordering kit # 56419320 |
|
040b |
272-1659
|
Bolt 1/2-13 X 1 lock |
2 |
After SN 13655891 |
|
041 |
999-0114
|
Washer 1/2 SAE flat |
2 |
Used only after SN 1365891 |
|
042 |
172-0032
|
Gasket 1/16 x 1/2 x 120 (OBSOLETE) |
2 ft |
|
|
