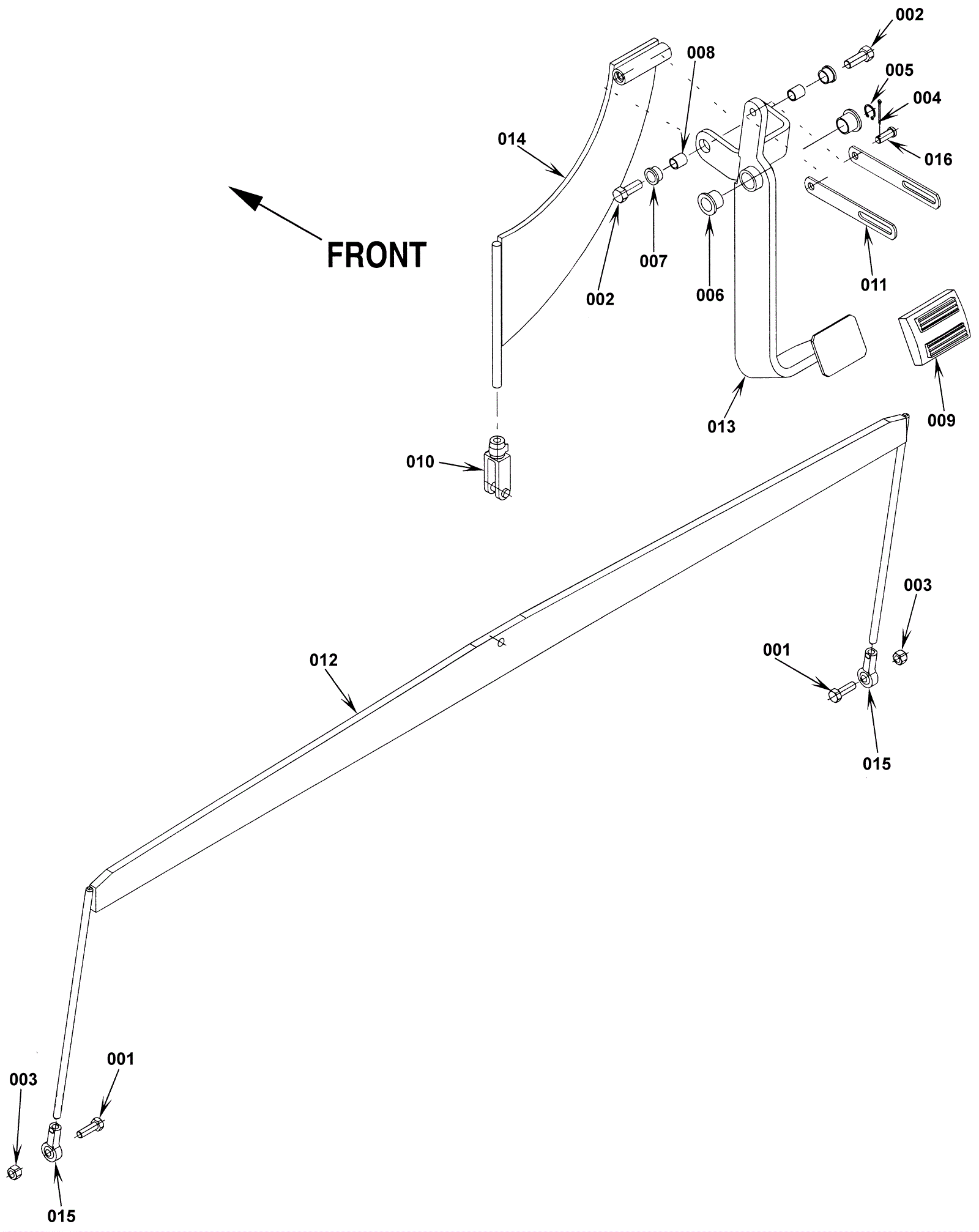

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
272-2937
|
Brake lever assembly (OBSOLETE) |
1 |
|
|
001 |
N/A
|
Not available |
2 |
|
|
002 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
2 |
|
|
003 |
999-0340
|
Nut 5/16-24 nylon insert lock zinc plated |
2 |
|
|
004 |
172-4387
|
Pin cot .06 x .50 |
1 |
|
|
005 |
172-1730
|
Retaining ring |
1 |
|
|
006 |
172-4037
|
Flanged bearing (OBSOLETE) |
2 |
|
|
007 |
172-9497
|
Flanged bearing |
2 |
|
|
008 |
N/A
|
Not available |
2 |
(Bushing) |
|
009 |
272-1983
|
Rubber pedal pad |
1 |
|
|
010 |
272-2954
|
Clevis assembly (OBSOLETE) |
1 |
|
|
011 |
272-2955
|
Hand brake linkage (OBSOLETE) |
2 |
|
|
012 |
272-2956
|
Brake yoke weldment (OBSOLETE) |
1 |
|
|
013 |
272-2957
|
Brake lever weldment (OBSOLETE) |
1 |
|
|
014 |
272-2958
|
Link weldment |
1 |
|
|
015 |
272-2959
|
Rod end |
2 |
|
|
016 |
272-2960
|
Pin (OBSOLETE) |
1 |
|
|
