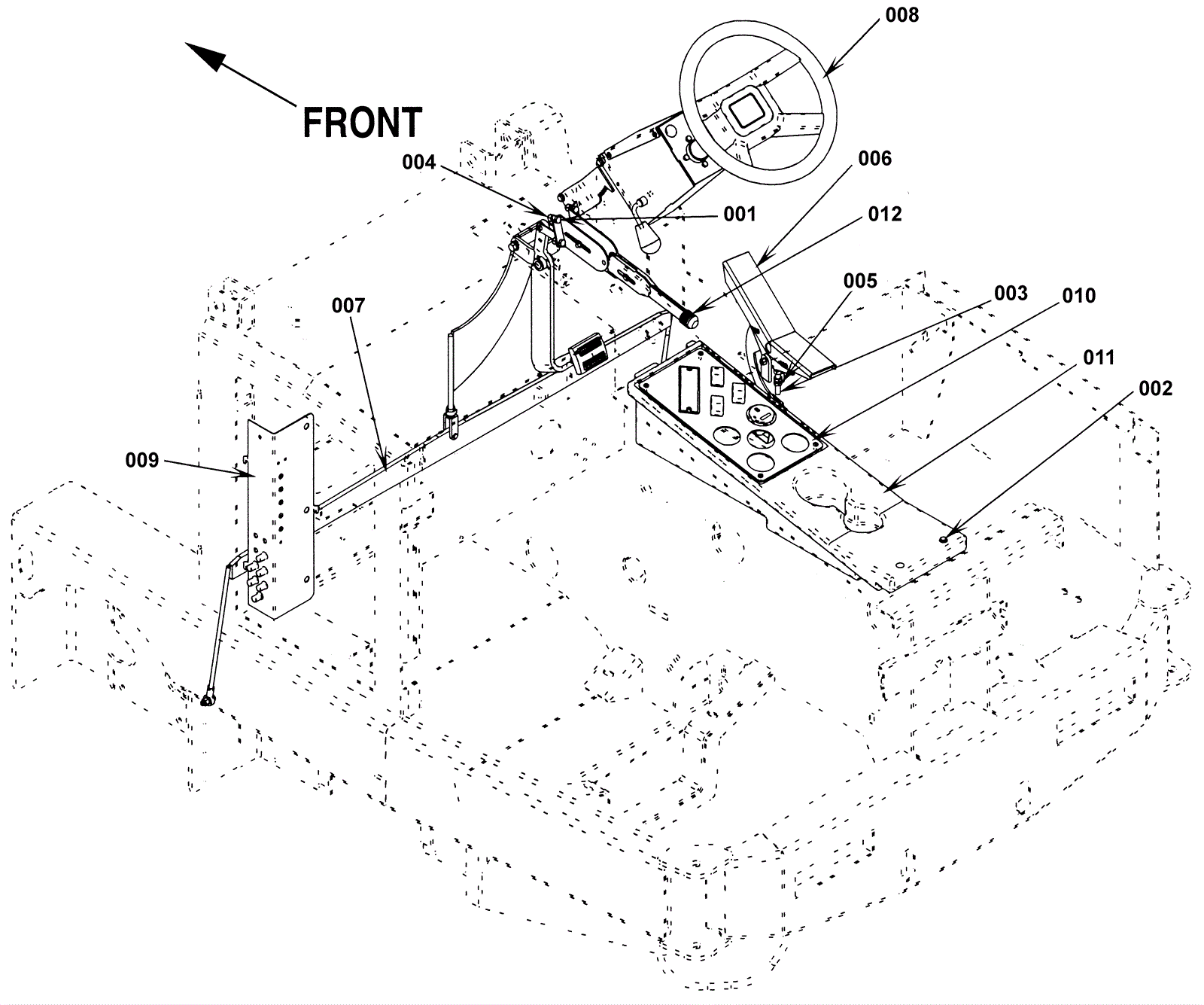

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0601
|
Screw 5/16-18 x 5/8 pan head phillips zinc plated |
4 |
|
|
002 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
2 |
|
|
003 |
N/A
|
Not available |
2 |
|
|
004 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
|
005 |
999-0118
|
Nut 1/2-13 nylon insert lock zinc plated |
4 |
|
|
006 |
272-2936
|
Throttle pedal assembly (OBSOLETE) |
1 |
|
|
007 |
272-2937
|
Brake lever assembly (OBSOLETE) |
1 |
|
|
008 |
272-2938
|
Tilt steering assembly (OBSOLETE) |
1 |
|
|
009 |
272-2939
|
Circuit breaker assembly (OBSOLETE) |
1 |
|
|
010a |
272-2940
|
Control panel assembly (OBSOLETE) |
1 |
|
|
010b |
272-2941
|
Control panel wiring harness (OBSOLETE) |
1 |
|
|
011 |
272-2942
|
Finished console |
1 |
|
|
012 |
272-2943
|
Brake lever assembly (OBSOLETE) |
1 |
|
|
