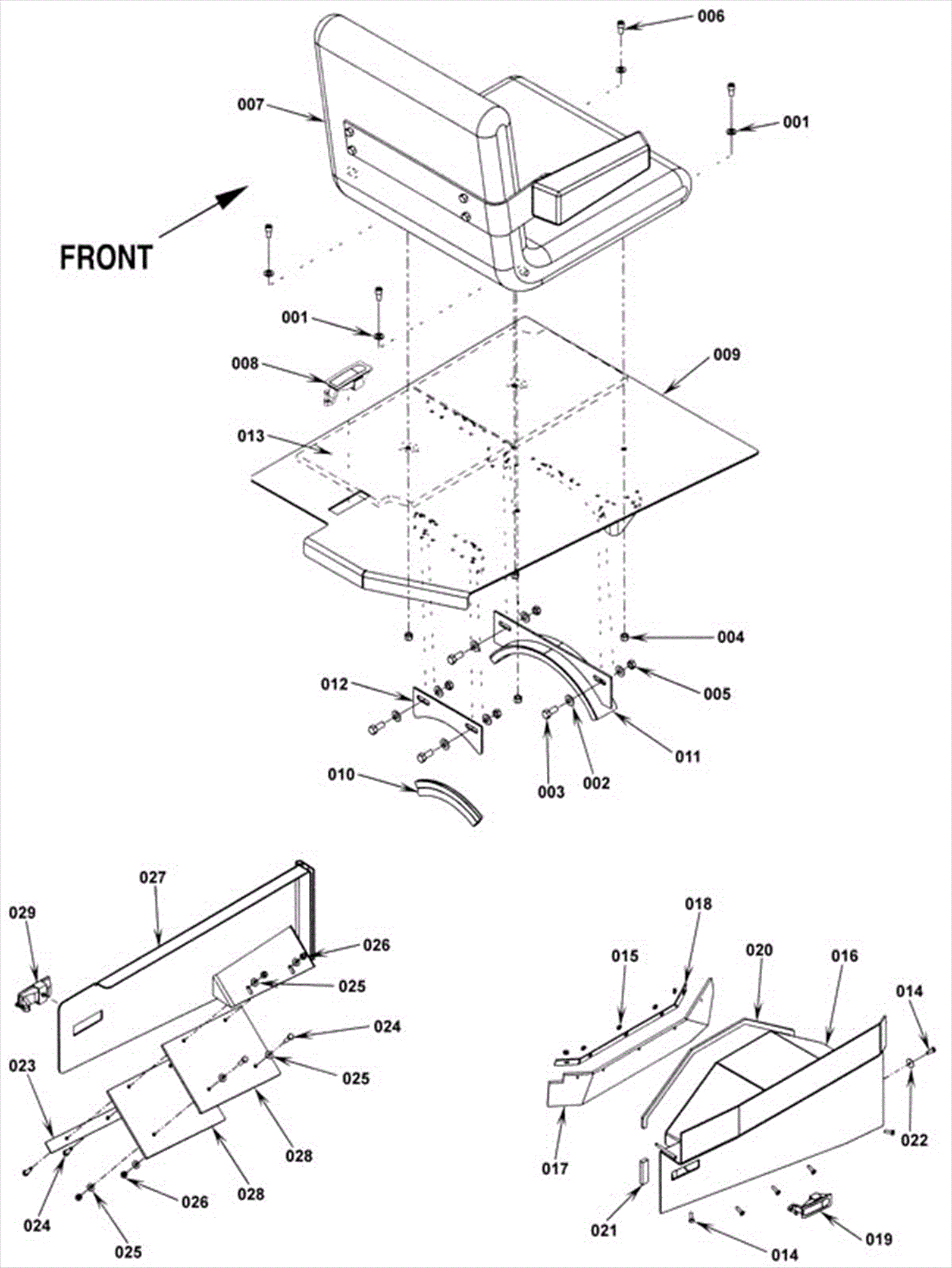

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
272-2905
|
Seal plate assembly (OBSOLETE) |
1 |
|
|
001 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
002 |
999-0120
|
Washer 3/8 SAE flat |
6 |
|
|
003 |
999-0812
|
Screw 3/8-16 x 7/8 hex head grade 5 plain finish |
4 |
|
|
005 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
4 |
|
|
006 |
272-1644
|
Bolt 5/16-18 x 5/8 socket head |
4 |
|
|
007a |
272-2929
|
Seat |
1 |
|
|
007b |
272-2930
|
Left armrest kit (OBSOLETE) |
1 |
|
|
008 |
172-9788
|
Door latch |
1 |
|
|
009 |
272-2931
|
Seat panel weldment (OBSOLETE) |
1 |
|
|
010 |
272-2932
|
Bulb gasket |
1 |
|
|
011 |
272-2933
|
LP clamp assembly (OBSOLETE) |
1 |
|
|
012 |
272-2934
|
LP clamp plate (OBSOLETE) |
1 |
|
|
013 |
272-2935
|
Seat plate insulation (OBSOLETE) |
2 |
|
|
