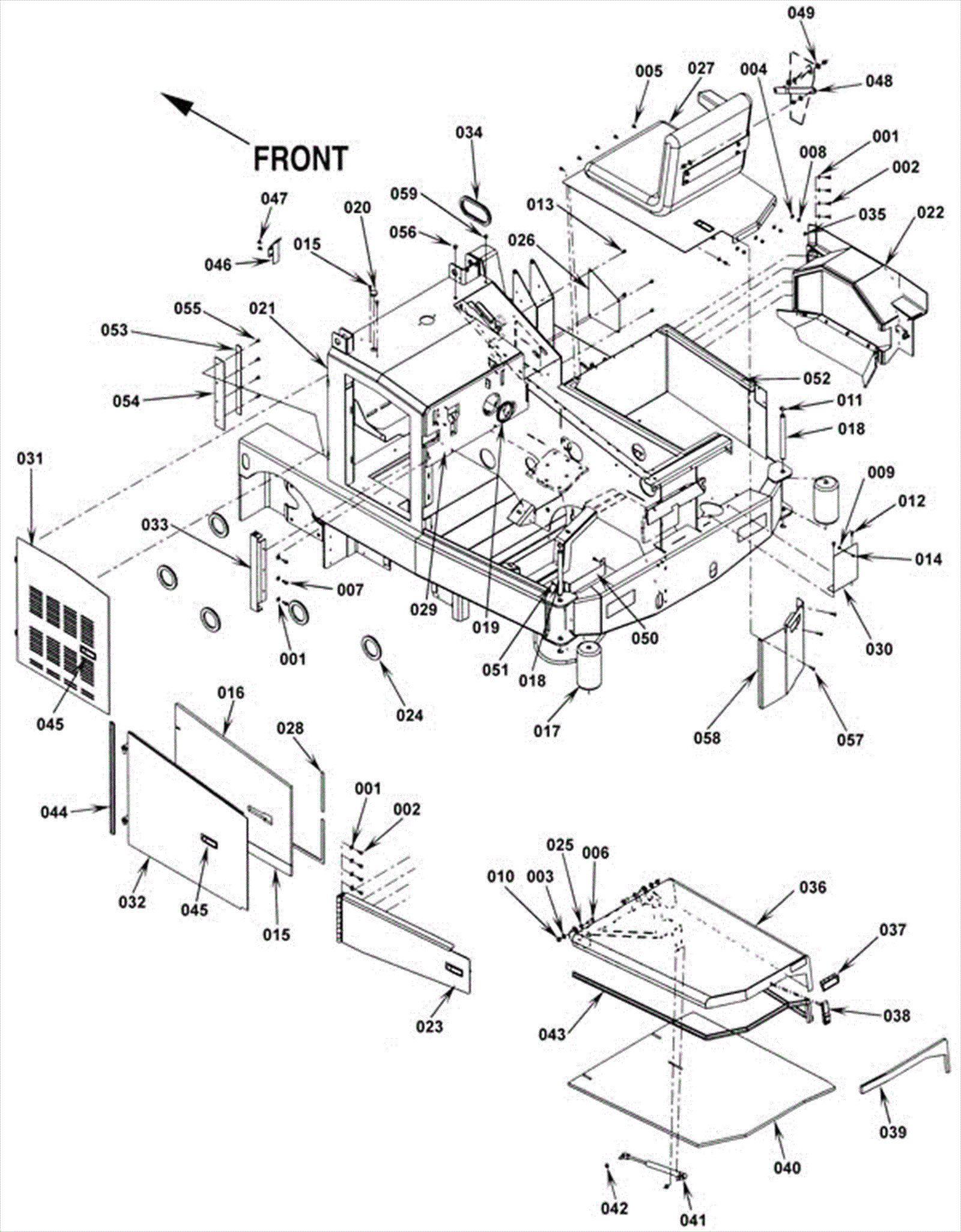

Chassis Sytsem

#PartDescription ReqNotesAvailability
001 999-0024 Washer 5/16 flat stainless steel 11
002 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 8
003 999-0120 Washer 3/8 SAE flat 2
004 999-0123 Washer 1/4 SAE flat zinc plated 5
005 175-5925 COVER, GAS (Tennant Industrial) 7
006 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 2
007 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 3
008 999-0152 Nut 1/4-20 nylon insert lock zinc plated 5
009 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
010 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
011 172-9513 Retaining ring 4
012 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc 2
013 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 4
014 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 1
015 272-2897 Engine door insulation (OBSOLETE) 1
016 272-2898 Engine door insulation (OBSOLETE) 1
017 172-9509 Roller bumper 2
018 172-9508 Pin 2
019 172-3251 Grommet 1
020 272-2899 Button plug 1
021 272-2900 Chassis weldment (OBSOLETE) 1
022 272-2901 Right door assembly (OBSOLETE) 1
023 272-2902 Left door assembly (OBSOLETE) 1
024 272-2903 Grommet (OBSOLETE) 5
025 172-9375 Bushing (OBSOLETE) 2
026 272-2904 Access cover 1
027 272-2905 Seal plate assembly (OBSOLETE) 1
028 272-2906 Engine door gasket (OBSOLETE) 1
029 272-2907 Tower rear insulation (OBSOLETE) 1
030 272-2908 Fuel opening cover (OBSOLETE) 1
031a 272-2909 Tower door assembly (OBSOLETE) 1
031b 272-2910 Left door weldment (OBSOLETE) 1
032a 272-2911 Left door weldment (OBSOLETE) 1
032b 272-2912 Left door assembly (OBSOLETE) 1
033a 272-2913 Hinge assembly (OBSOLETE) 1
033b 272-2914 Hinge weldment (OBSOLETE) 1
034 N/A Not available 1
035a 272-2915 Self adhesive bumper 2
035b N/A Not available 1
036 272-2916 Engine cover weldment (OBSOLETE) 1
038 172-0049 Latch 1
039 N/A Not available 1
040 272-2918 Engine cover insulation (OBSOLETE) 1
041 172-0320 Hood cylinder 1
042 999-0430 Nut 5/16-18 hex jam plain finish 2
043 272-2919 Engine cover gasket (OBSOLETE) 1
044 272-2920 Engine door gasket 1
045 172-9788 Door latch 2
046 272-2921 Deflector (OBSOLETE) 1
047 999-0360 Screw 1/4-20 x 3/8 hex head thread rolling unslotted 2
048 272-2922 Lift link weldment (OBSOLETE) 1
049 272-1835 Washer flat 1
050 N/A Not available 2
051 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 4
052 272-2923 Seat plate gasket 1
053 272-2924 Strap (OBSOLETE) 2
054 272-2925 Squeegee blade (OBSOLETE) 2
055 999-0419 Screw 1/4-20 x 5/8 flat head slotted zinc plated 8
056 272-2926 Cap plug (OBSOLETE) 3
057 999-0275 Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling 3
058 272-2927 Rear panel (OBSOLETE) 1
059 272-2928 Button plug 1
