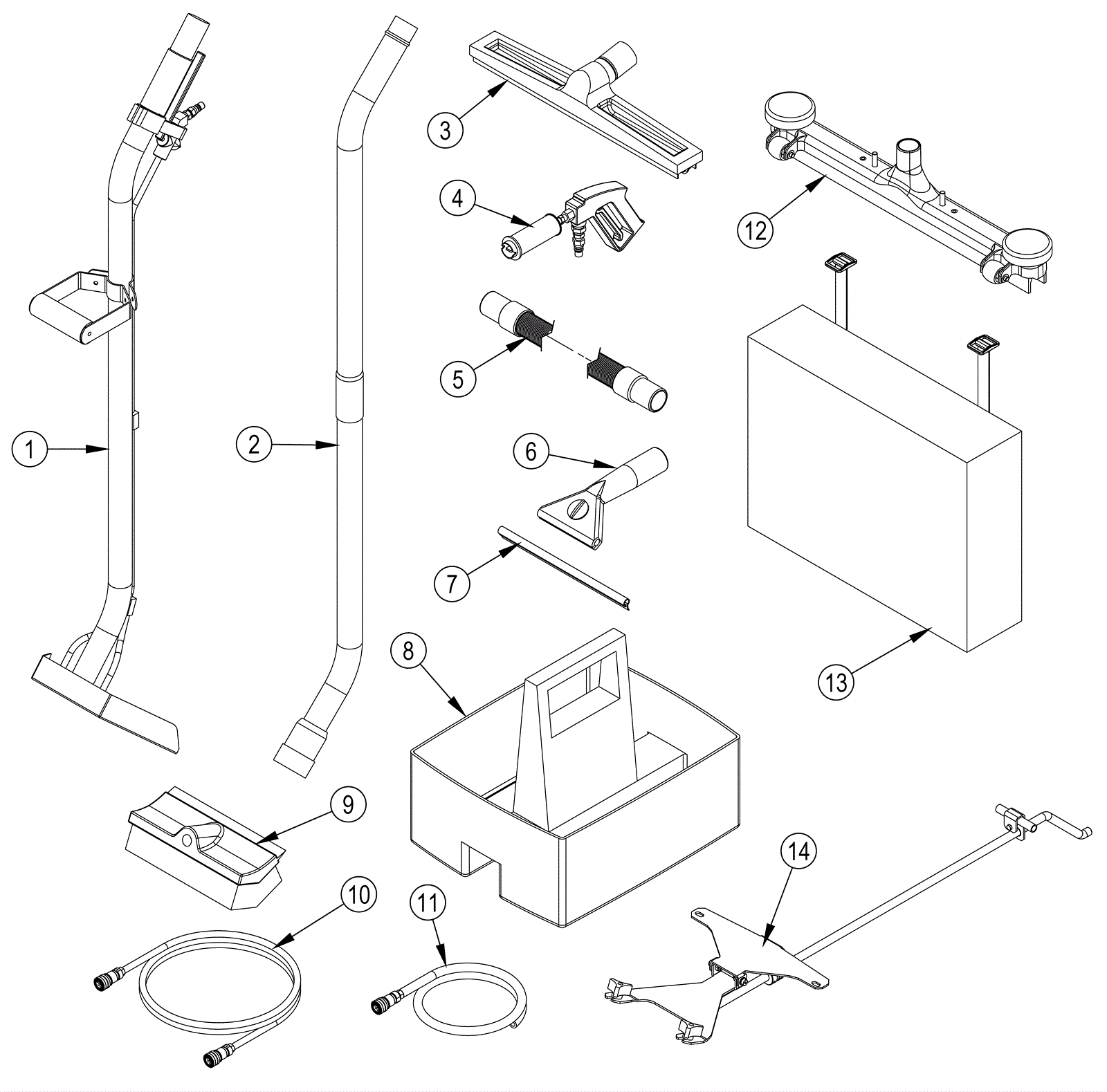

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
272-6012
|
Double bend wand (OBSOLETE) |
1 |
|
|
2 |
173-4789
|
1 1/2 x 56 inch two piece aluminum double curve wand |
1 |
|
|
3 |
172-2910
|
14 inch squeegee floor tool |
1 |
|
|
4 |
172-2479
|
Complete spray gun |
1 |
|
|
5 |
272-6013
|
Vacuum hose 1.6 x 15 foot |
1 |
|
|
6 |
272-6014
|
Hand squeegee handle |
1 |
|
|
7 |
272-6015
|
12 inch hand squeegee |
1 |
|
|
8 |
272-6016
|
Tote (blue) |
1 |
|
|
9 |
272-6017
|
Dual surface brush |
1 |
|
|
10a |
472-7389
|
PRESSURE LINE 25 FT COMPLETE |
1 |
|
|
10b |
272-6018
|
15 foot solution hose (OBSOLETE) |
1 |
|
|
11 |
172-2906
|
Priming hose with quick disconnect |
1 |
|
|
12a |
272-5111
|
24 inch squeegee assembly |
1 |
(optional) |
|
12b |
272-2836
|
30 inch squeegee assembly |
1 |
(optional) |
|
13 |
272-6019
|
Tote bag |
1 |
(optional) |
|
14 |
272-6020
|
Frame assembly |
1 |
(optional) |
|
N/S |
170-9006
|
Metering tip kit |
1 |
|
|
N/S |
272-6025
|
Metal handle (black) |
1 |
|
|
N/S |
272-6021
|
Microfiber mop frame (OBSOLETE) |
1 |
(optional) |
|
N/S |
272-6022
|
Microfiber mop (OBSOLETE) |
1 |
(optional) |
|
N/S |
272-6023
|
Blower hose and nozzle |
1 |
(optional) |
|
N/S |
272-6024
|
Chemical injector |
1 |
(optional) |
|
N/S |
170-9006
|
Metering tip kit |
1 |
|
|
