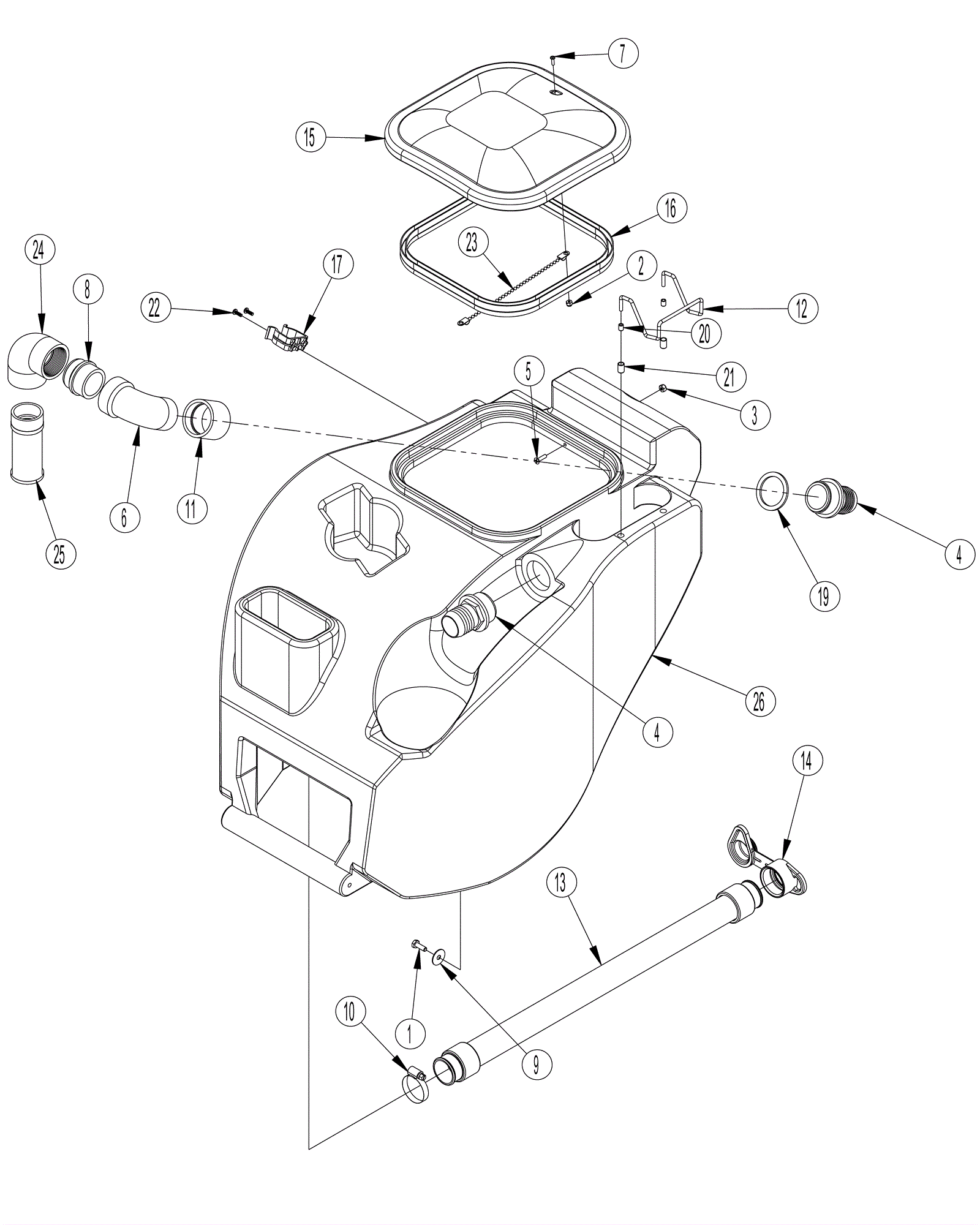

Tank Assembly

#PartDescription ReqNotesAvailability
1 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 1
2 270-8623 Nut nylon lock 6/32 Z.P 1
3 999-1269 Nut 10-32 nylon insert jam stainless steel 1
4 172-2481 Hose barb 2
5 999-1275 Screw 10-32 x 3/4 hex head stainless steel 1
6 209-0364 Elbow 1
7 172-9598 Screw 6-32 x 1/2 pan head phillips 1
8 209-0343 ABS adapter 1
9 170-1395 Fender washer 1
10 270-8636 Hose clamp 3/4 x 1 3/4 SS 1
12 172-9599 Hanger 1
13 272-1375 Drain hose 1 1/2 inch 1
14 272-1139 Drain plug 1
15a 172-2129 Lid 1
15b 272-6010 Lid assembly 1 (includes 2, 7, 15, 16 and 23)
16 172-2135 Lid gasket 1
17 272-1159 Plastic clamp 1
19 209-0341 Rubber washer 1
20 209-0033 Cap (black) 2
21 272-2545 Sleeve 2
22 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 2
23 172-2474 8 inch chain 1
24 172-2473 PVC elbow 1-1/2 1
25 209-0329 Ball float 1
26 272-6011 Recovery tank assembly 1 (includes 4, 6, 8, 10, 11, 13, 14, 17, 24 and 25)
