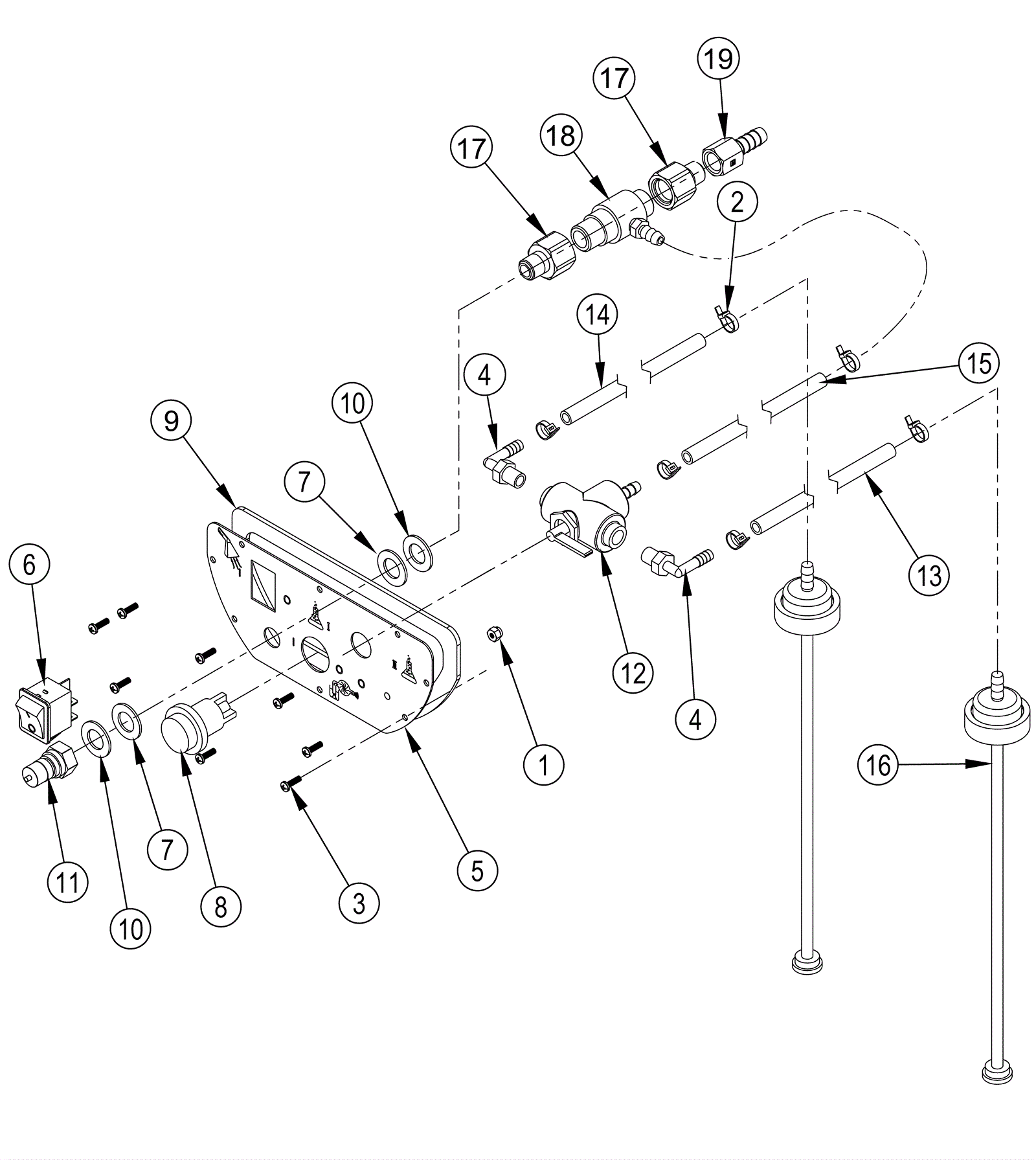

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
270-8623
|
Nut nylon lock 6/32 Z.P |
1 |
|
|
2 |
272-6806
|
4 inch tie |
6 |
|
|
4 |
172-9448
|
90 degree hose barb |
2 |
|
|
5 |
172-9449
|
Switch plate |
1 |
|
|
6a |
209-0680
|
Rocker switch |
1 |
(standard) |
|
7 |
209-0628
|
Washer |
2 |
|
|
8 |
209-0286
|
On/off switch 3 prong |
1 |
(formerly 4 prong and has been replaced by 3 prong which will work in its place) |
|
9 |
172-9450
|
Switch plate gasket |
1 |
|
|
10 |
209-6081
|
Washer |
2 |
|
|
11 |
209-0336
|
Male quick disconnect |
1 |
|
|
12 |
572-9323
|
3 way valve |
1 |
|
|
13a |
172-9452
|
1/4 inch tubing (clear) (OBSOLETE) |
60in |
(59 1/2 inch) (standard) |
|
13b |
172-9452
|
1/4 inch tubing (clear) (OBSOLETE) |
60in |
(XP) |
|
14a |
172-9452
|
1/4 inch tubing (clear) (OBSOLETE) |
60in |
(59 1/2 inch) (standard) |
|
14b |
172-9452
|
1/4 inch tubing (clear) (OBSOLETE) |
60in |
(XP) |
|
15a |
172-9452
|
1/4 inch tubing (clear) (OBSOLETE) |
8in |
(standard) |
|
15b |
172-9452
|
1/4 inch tubing (clear) (OBSOLETE) |
21in |
(XP) |
|
17 |
172-9444
|
Reducer |
2 |
|
|
18 |
172-9445
|
Chemical injector |
1 |
|
|
19 |
209-0039
|
Hose barb 1/4 |
1 |
|
|
