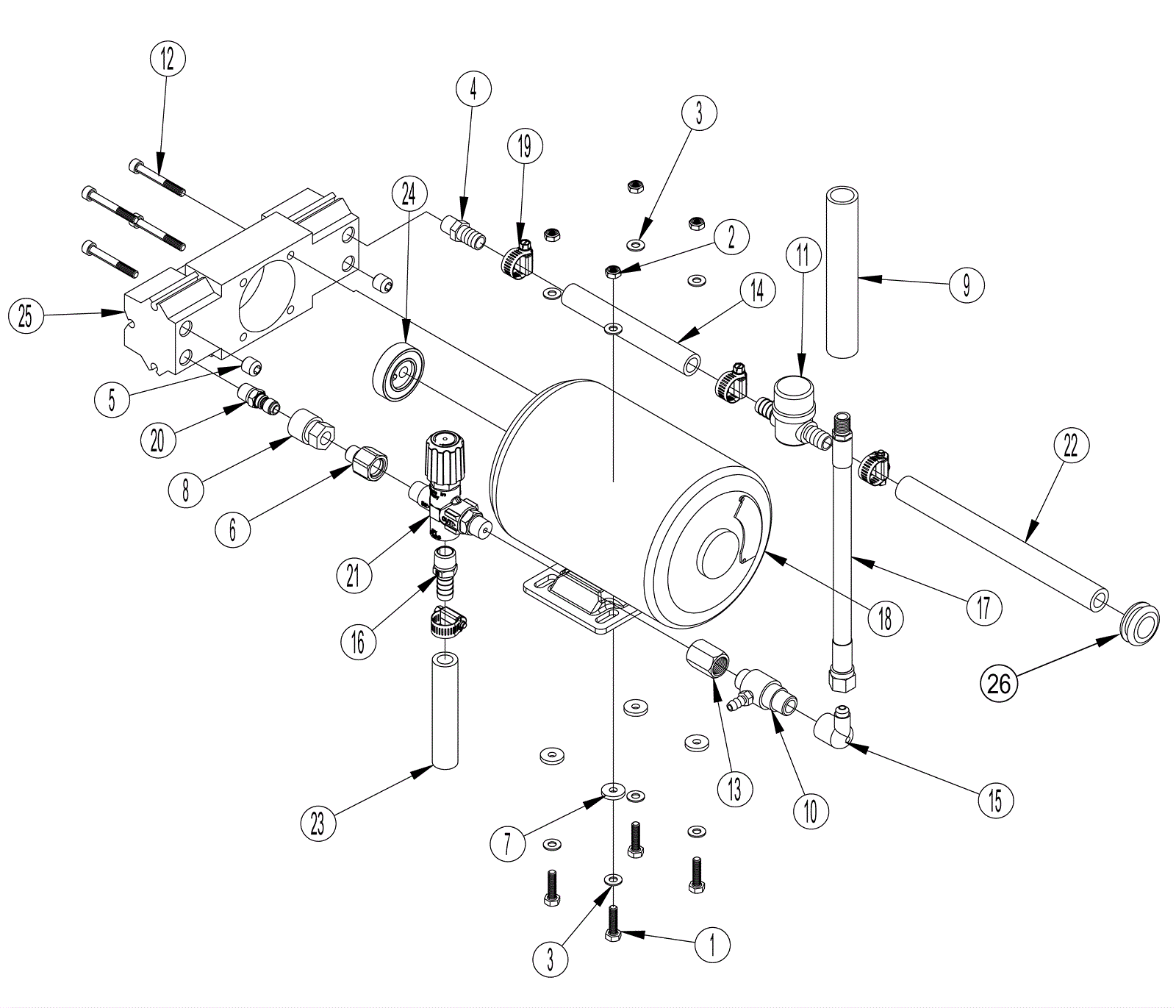

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
4 |
|
|
2 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
|
3 |
999-0006
|
Washer 3/16 flat zinc plated |
8 |
|
|
4 |
209-0449
|
Hose barb |
1 |
|
|
5 |
209-0614
|
1/4 inch plug |
2 |
|
|
6 |
172-9444
|
Reducer |
1 |
|
|
7 |
209-0258
|
Washer |
4 |
|
|
8 |
272-6812
|
1/4 inch quick connect |
1 |
|
|
9 |
172-9438
|
Tube (black) |
6in |
|
|
10 |
172-9445
|
Chemical injector |
1 |
|
|
11 |
172-2454
|
In-line filter |
1 |
|
|
12 |
209-0615
|
Screw 1/4-20 x 2 cap |
4 |
|
|
13 |
272-2541
|
Coupling |
1 |
|
|
14 |
209-0679
|
Wire reinforced hose |
6in |
|
|
15 |
272-2542
|
90 degree fitting |
1 |
|
|
16 |
272-2543
|
Hose barb |
1 |
|
|
17 |
172-9446
|
Hose |
1 |
|
|
18 |
172-9331
|
Pump motor kit |
1 |
|
|
19 |
209-0604
|
Hose clamp |
4 |
|
|
20 |
209-0618
|
Quick connect plug |
1 |
|
|
21 |
209-0287
|
Pressure regulator valve (unloader) |
1 |
|
|
22 |
209-0379
|
Pump inlet hose 1/2 x 17 (sold by the inch) |
9in |
|
|
23 |
209-0379
|
Pump inlet hose 1/2 x 17 (sold by the inch) |
4in |
|
|
24 |
209-6164
|
Cam/bearing assembly |
1 |
|
|
25 |
209-0616
|
Pump |
1 |
|
|
26 |
172-9425
|
Grommet |
1 |
|
|
