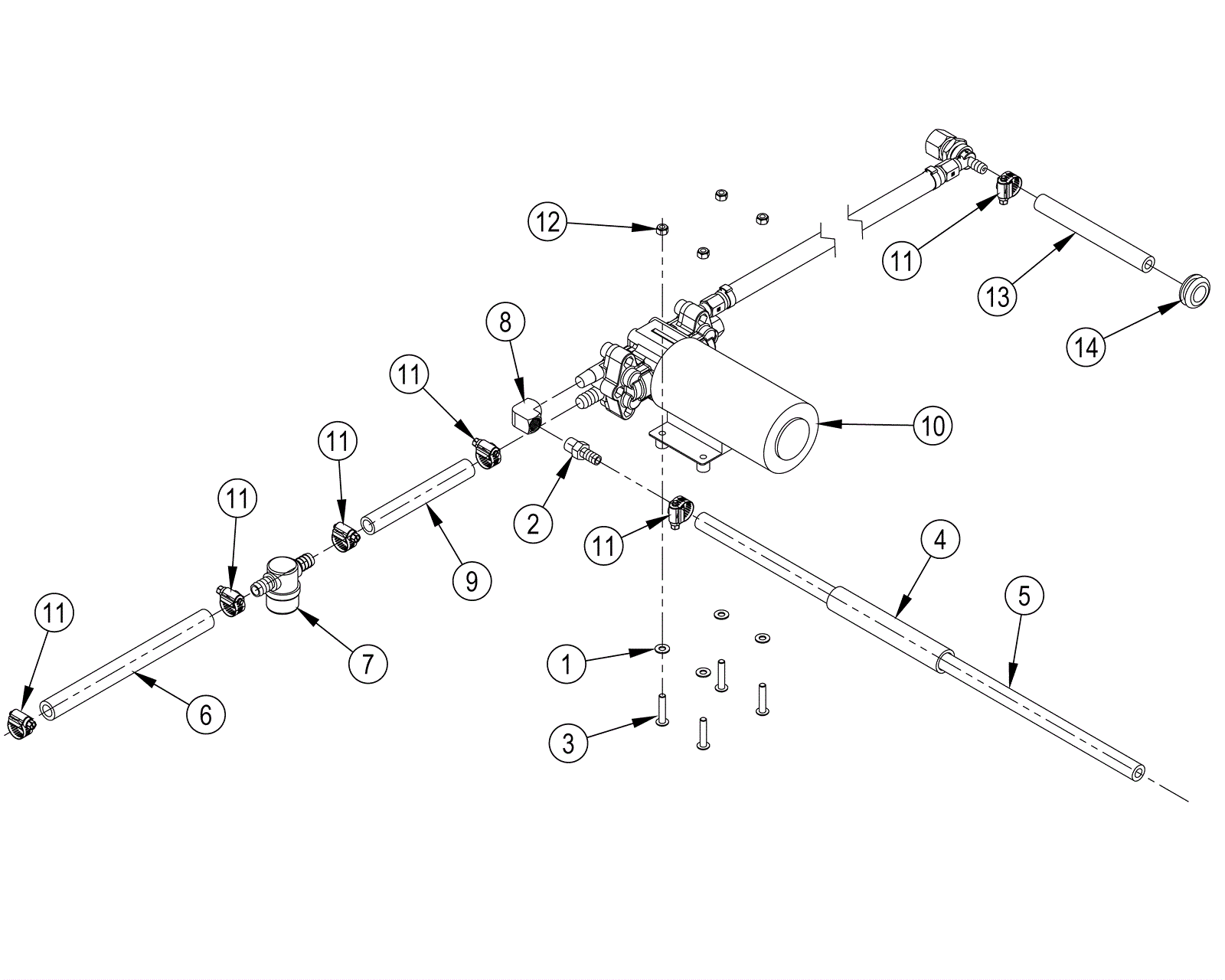

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0006
|
Washer 3/16 flat zinc plated |
4 |
|
|
2 |
209-0157
|
Hose barb with male 1/4 pipe |
1 |
|
|
3 |
209-0678
|
Screw 12-24 x 1 1/4 phillips |
4 |
|
|
4 |
172-9438
|
Tube (black) |
4in |
|
|
5 |
209-0076
|
24 inch pump inlet hose (sold by the inch) (OBSOLETE) |
20in |
|
|
6 |
209-0379
|
Pump inlet hose 1/2 x 17 (sold by the inch) |
9in |
|
|
7 |
172-2454
|
In-line filter |
1 |
|
|
9 |
209-0679
|
Wire reinforced hose |
11in |
|
|
10a |
172-9439
|
Pump and motor kit |
1 |
|
|
10b |
172-9440
|
Pump drive motor (OBSOLETE) |
1 |
|
|
10c |
209-0390
|
Pressure regulator valve |
1 |
|
|
11 |
209-0604
|
Hose clamp |
6 |
|
|
12 |
209-0664
|
Nut 12-24 nylock stainless steel |
4 |
|
|
13 |
209-0076
|
24 inch pump inlet hose (sold by the inch) (OBSOLETE) |
4in |
|
|
14 |
172-9441
|
Grommet |
1 |
|
|
