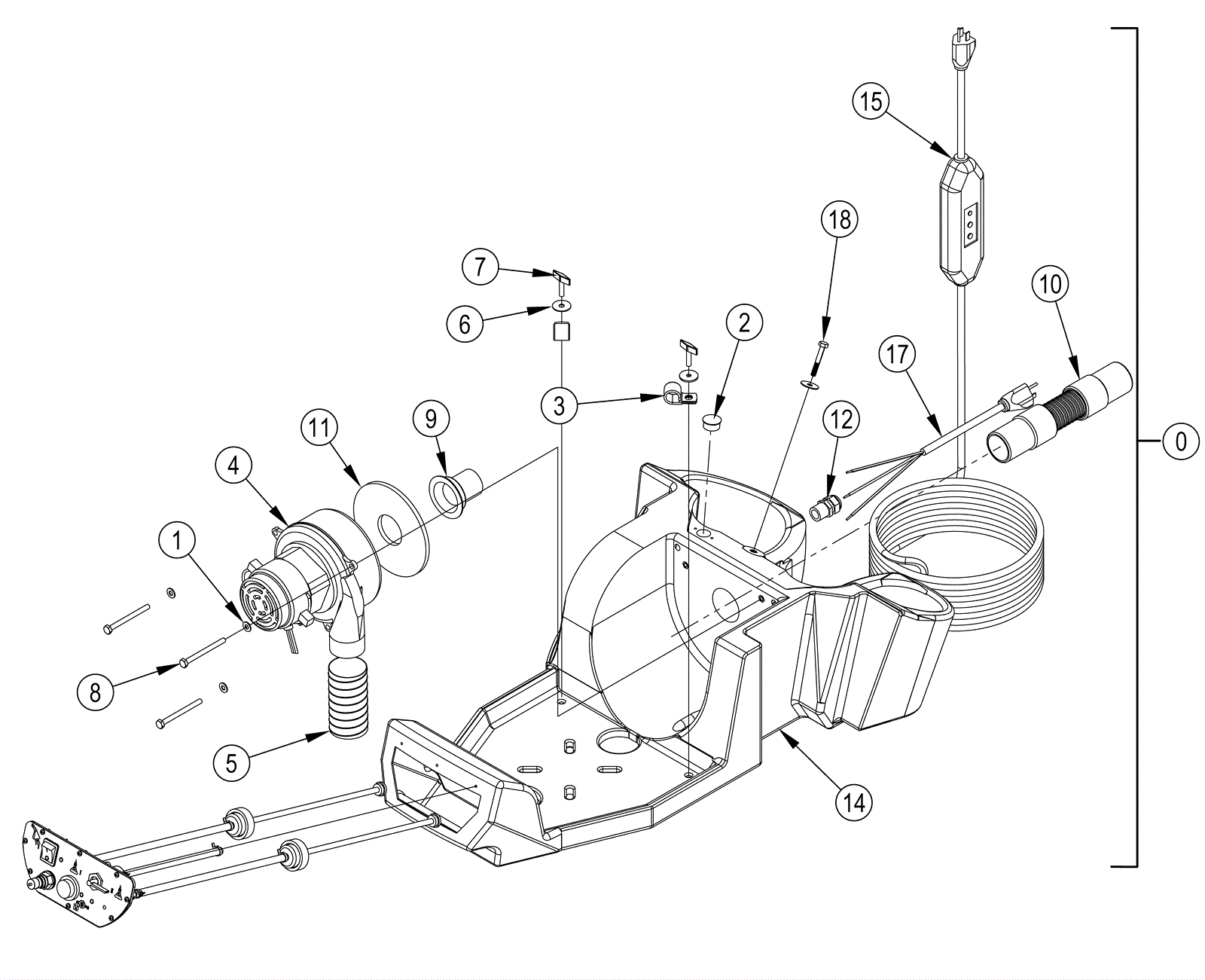

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
172-9437
|
Base kit |
1 |
(includes 1-18) |
|
1 |
999-0006
|
Washer 3/16 flat zinc plated |
3 |
|
|
2 |
272-2537
|
Plug |
1 |
|
|
3 |
209-0675
|
Hose clamp |
2 |
|
|
4 |
209-0004
|
120V 2 stage vacuum motor with gasket and connectors |
1 |
|
|
5 |
172-9433
|
Vacuum hose |
1 |
|
|
6 |
170-1395
|
Fender washer |
3 |
|
|
7 |
272-2538
|
Screw 1/4-20 x 1 thumb |
2 |
|
|
8 |
272-2539
|
Bolt 1/4-20 |
3 |
|
|
9 |
272-2540
|
Vacuum outlet sleeve |
1 |
|
|
10a |
209-0401
|
1 1/2 inch vacuum hose |
1 |
(standard) |
|
10b |
209-0401
|
1 1/2 inch vacuum hose |
1 |
(xp) |
|
11a |
209-0632
|
Adhesive gasket |
1 |
(standard) |
|
11b |
209-0005
|
Vacuum motor gasket |
1 |
(xp) |
|
12 |
209-0677
|
Cord retainer |
1 |
|
|
14 |
172-9434
|
Base |
1 |
|
|
15 |
172-9435
|
Power cord assembly |
1 |
|
|
17 |
172-9436
|
Pigtail cord |
1 |
|
|
18 |
999-1436
|
Bolt 1/4-20 x 1 3/4 hex stainless steel |
1 |
|
|
