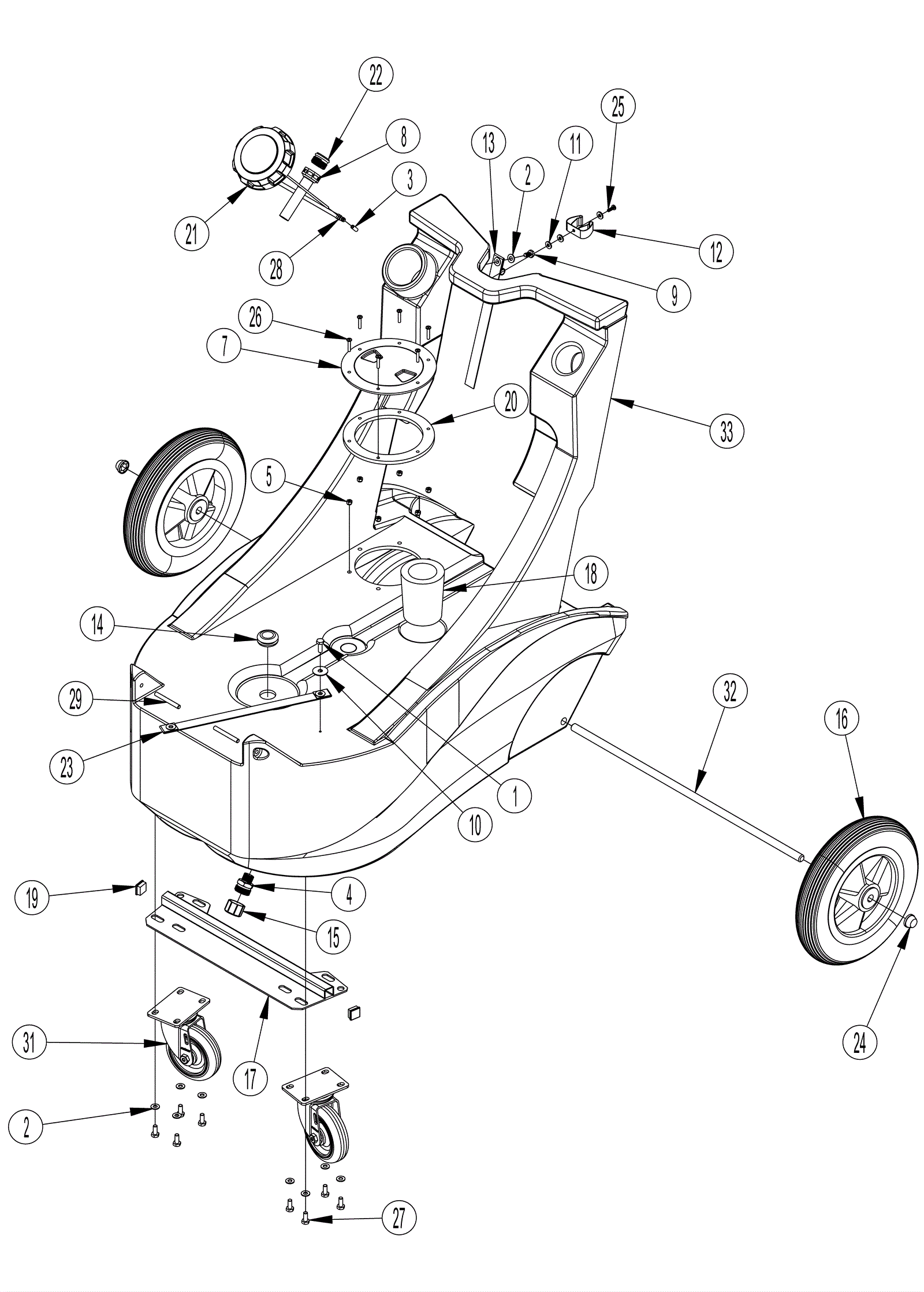

Base Assembly

#PartDescription ReqNotesAvailability
1 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 1
2 999-0006 Washer 3/16 flat zinc plated 9
3 272-2528 Button connection 1
4 209-0451 Adapter 1
5 999-0357 Nut 8-32 nylon insert lock stainless steel 6
8 272-2529 5 inch fill hose 1
9 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 1
10 170-1395 Fender washer 1
11 999-0053 Washer #10 split lock plain finish 3
12 272-2531 Handle clip 1
13 209-0363 Cord strap 1
14 172-9425 Grommet 1
15 172-9426 Hose cap 1
16 209-0106 10 inch wheel 2
17 272-2532 Caster wheel plate 1
18 272-2533 Reticulated foam 1
19 272-2534 Square plug 2
20 272-2535 Lid gasket 1
21 272-9352 Raw cap with tether 1
22 209-0673 Faucet adapter 1
23 172-9427 Strap 1
24 170-5410 Axle cap (OBSOLETE) 2
25 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 1
26 999-1356 Screw 8-32 x 7/8 pan head phillips stainlesss steel 6
27 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 8
28 209-0674 Wire tie 1
29 172-9429 Hinge pin 2
31 209-0480 Caster wheel (gray) 2
32 272-2536 Axle rod 1
33 172-9430 Tank 1
N/S 172-9431 Decal kit (OBSOLETE) 1
