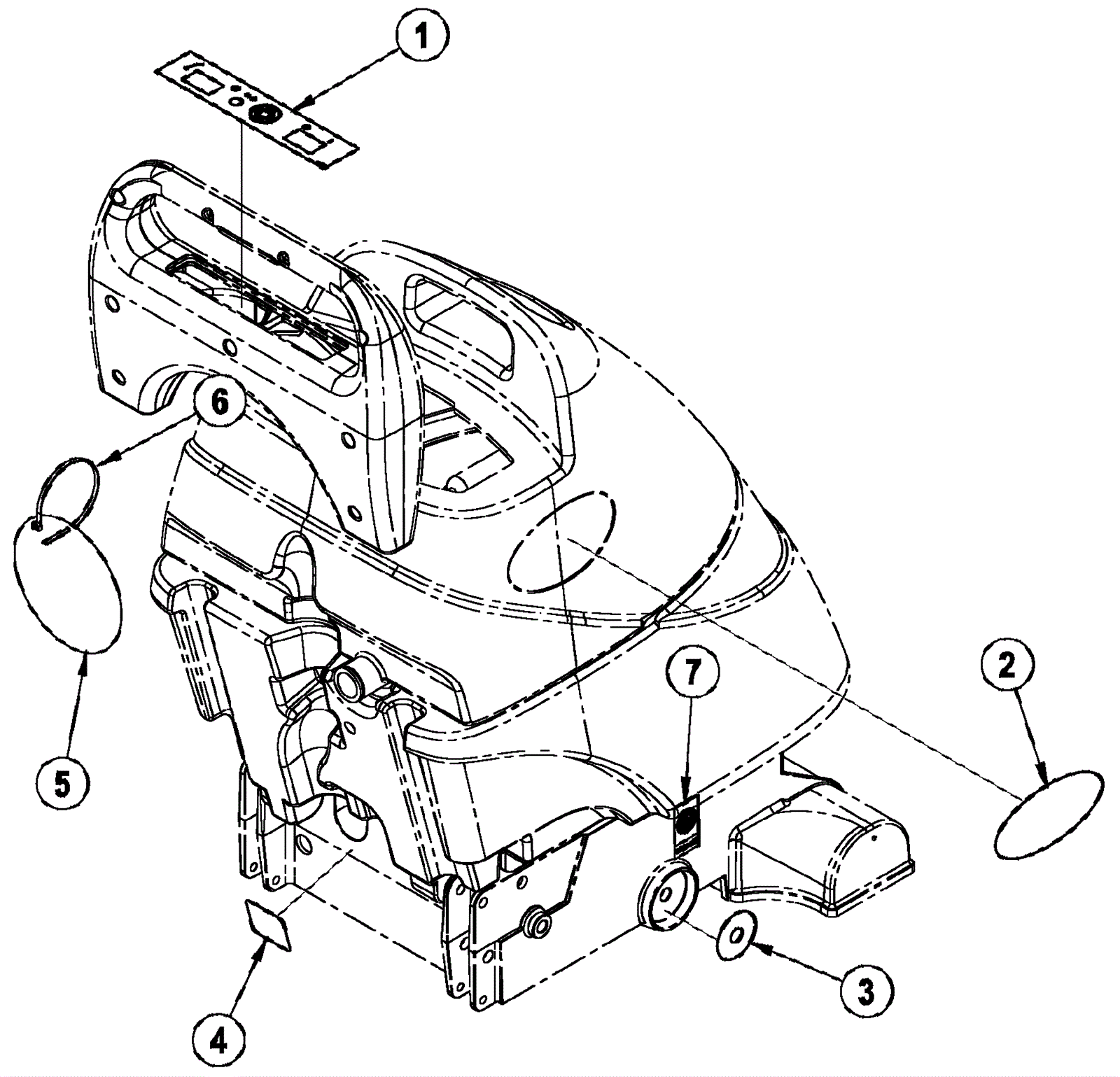

AQUACLEAN 16ST Decal Placement Diagram

#PartDescription ReqNotesAvailability
1a 272-0541 Panel decal 1 (16ST, 16XP) usually ships 1-5 days
1b 272-0540 Panel decal 1 (18FLX, 18ST) usually ships 1-5 days
2a 272-0614 Aquaclean XP decal 2 (16XP) usually ships 1-5 days
2b 272-1012 Aquaclean ST decal 2 (16ST, 18ST) usually ships 1-5 days
2c 272-1013 Aquaclean FLX decal 2 (18FLX) usually ships 13-16 days
3 272-1042 Nozzle selector decal 1 (16XP, 18FLX) usually ships 13-16 days
4 272-0543 Brush pressure decal 1 usually ships 1-5 days
5 272-9325 CRI tag 1 usually ships 13-16 days
6 997-2103 8 inch cable tie 1 usually ships 11-14 days
7 272-9324 CRI bronze decal 1 usually ships 13-16 days
