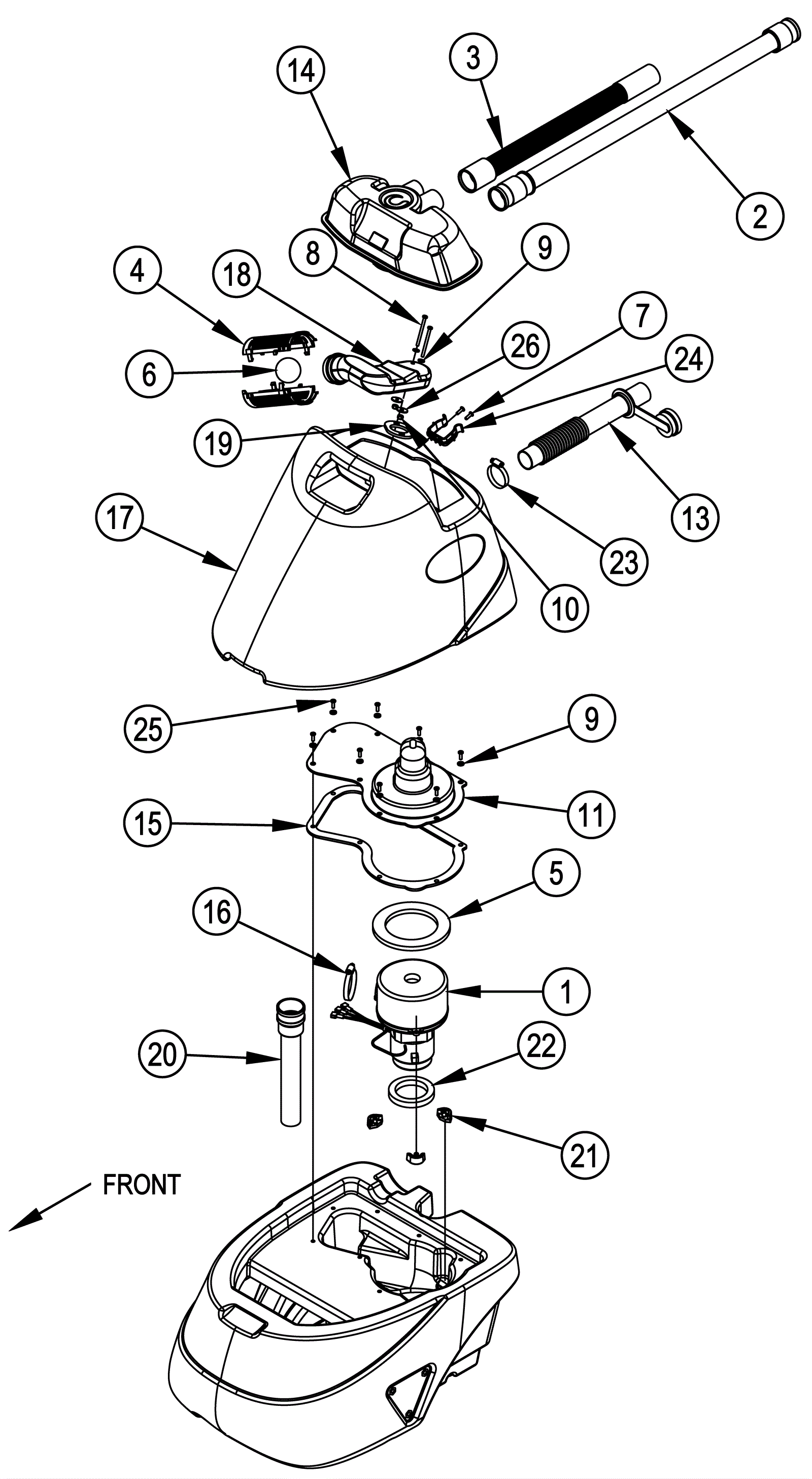

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
272-0544
|
120V 3 stage vacuum motor |
1 |
(OEM) |
|
1b |
991-1213
|
120V 3 stage vacuum motor tangential |
1 |
(NON-OEM) |
|
1c |
272-2666
|
Carbon brush (pkg of 2) |
1 |
|
|
2a |
272-1126
|
Vacuum hose 1 1/2 x 33 inch |
1 |
(16XP, 18FLX) |
|
2b |
272-0545
|
Vacuum hose 1 1/2 x 48 inch |
1 |
(16ST) |
|
2c |
272-0546
|
Vacuum hose (OBSOLETE) |
1 |
(18ST) |
|
3 |
272-1132
|
Vacuum hose |
1 |
(16XP, 18FLX) |
|
4 |
172-0517
|
Float cage half (2 required for full float cage) |
2 |
|
|
5a |
164-0881
|
Vacuum motor gasket |
1 |
(OEM) |
|
5b |
991-3029
|
Vacuum motor gasket |
1 |
(NON-OEM) |
|
6 |
172-0192
|
Float ball |
1 |
|
|
7 |
999-0332
|
Screw 10-24 x 5/8 pan head phillips stainless steel |
2 |
|
|
8 |
999-1688
|
Screw 10-24 x 2 hex head stainless steel |
2 |
|
|
9 |
999-0998
|
Washer #10 flat stainless steel |
10 |
|
|
10 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
2 |
|
|
11 |
272-0548
|
Vacuum motor cover with gasket |
1 |
|
|
13 |
272-0550
|
Drain hose |
1 |
|
|
14 |
272-0551
|
Recovery tank lid with gasket |
1 |
|
|
15 |
272-0552
|
Vacuum cover gasket |
1 |
|
|
16 |
272-9976
|
#32 hose clamp SAE |
1 |
|
|
17a |
272-1149
|
Recovery tank |
1 |
(18FLX, 18ST) |
|
17b |
272-1150
|
Recovery tank (OBSOLETE) |
1 |
(16XP, 16ST) |
|
18 |
272-0555
|
Float duct (OBSOLETE) |
1 |
|
|
19 |
272-0556
|
Gasket |
1 |
|
|
20 |
272-0557
|
Vacuum hose assembly (OBSOLETE) |
1 |
|
|
21 |
172-3351
|
Vibration mount |
3 |
|
|
22 |
272-0430
|
Vacuum duct gasket |
1 |
|
|
23 |
270-8636
|
Hose clamp 3/4 x 1 3/4 SS |
1 |
|
|
24 |
272-0547
|
Plastic clamp |
1 |
|
|
25 |
999-0333
|
Screw 10-24 x 1/2 pan head phillips stainless steel |
8 |
|
|
26 |
999-0588
|
Washer 7/8 flat stainless steel |
2 |
|
|
