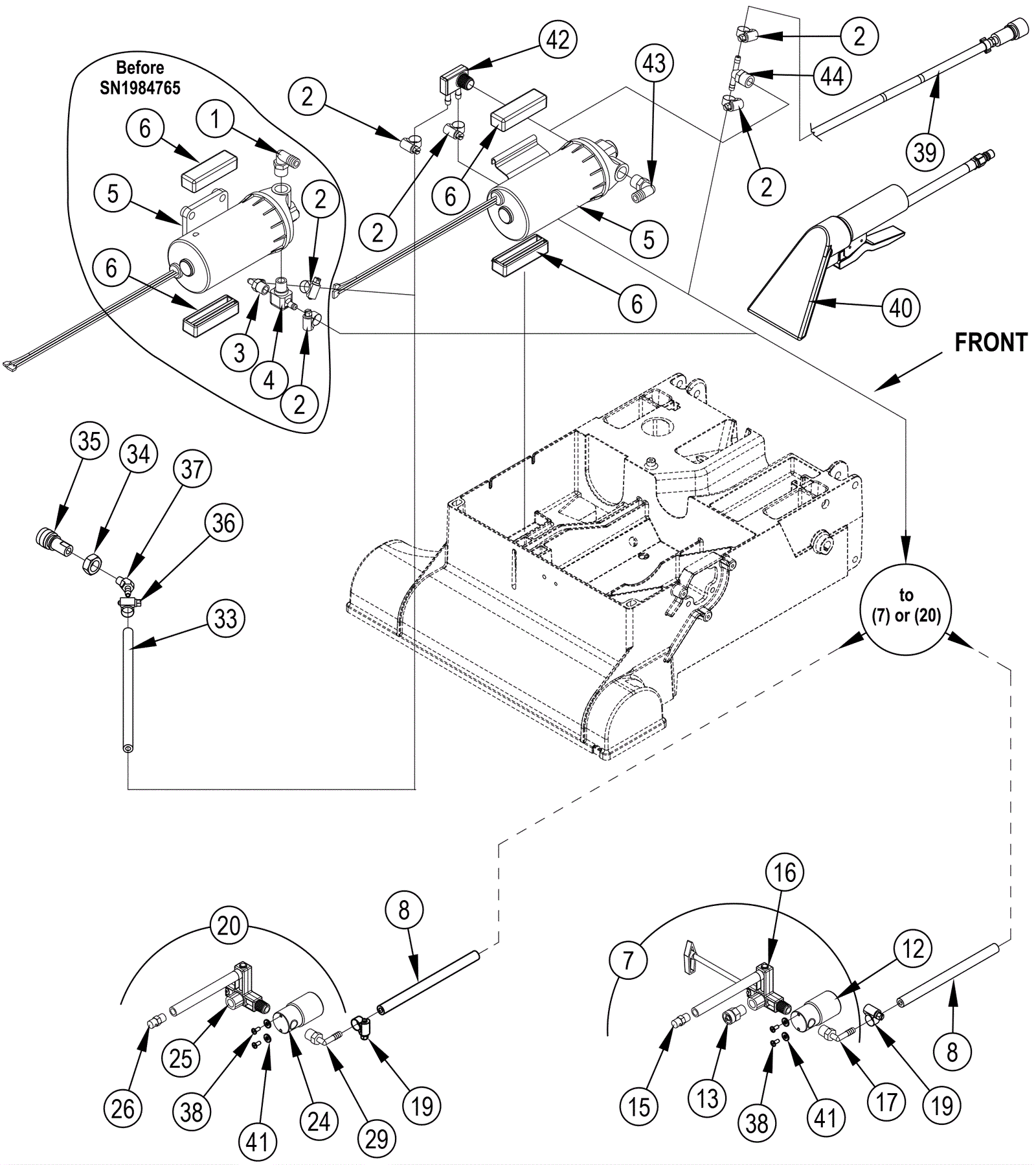

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
172-4056
|
90 degree barbed elbow |
1 |
(before SN 1984765) |
|
2 |
170-5169
|
Hose clamp SAE #4 |
2 |
|
|
3 |
172-1337
|
90 degree barb 1/4 |
1 |
|
|
4 |
172-4156
|
Barbed adapter |
1 |
|
|
5a |
272-0170
|
115V 60 PSI pump |
1 |
(OEM) (before SN 1984765) |
|
5b |
272-8143
|
115V 60 PSI pump (OBSOLETE) |
1 |
(OEM) (after SN 1984764) |
|
5c |
991-8547
|
115V 60 PSI pump |
1 |
(NON-OEM) |
|
6 |
272-0226
|
Pump mount |
2 |
|
|
7a |
272-0239
|
Nozzle and valve assembly |
1 |
(16XP) (includes 12-13, 15-17, and 272-1042) |
|
7b |
272-7295
|
Nozzle and valve assembly (OBSOLETE) |
1 |
(18FLX) (includes 12-13, 15-17, and 272-1042) |
|
8a |
272-0296
|
7 inch hose |
1 |
(before SN 1984765) |
|
8b |
172-1350
|
10 inch hose |
1 |
(after SN 1984764) |
|
12 |
272-0340
|
Solenoid valve |
1 |
(16XP, 18FLX) |
|
13 |
272-0353
|
Quick v-jet with body |
1 |
|
|
15 |
272-0578
|
Spray nozzle |
1 |
|
|
16a |
272-0593
|
3 way ball valve (OBSOLETE) |
1 |
(16XP) |
|
16b |
272-0599
|
3 way ball valve |
1 |
(18FLX) (ball valve design has changed but is a direct replacement) |
|
17 |
172-1337
|
90 degree barb 1/4 |
1 |
|
|
19 |
170-5169
|
Hose clamp SAE #4 |
1 |
|
|
20 |
272-0602
|
Nozzle and valve assembly (OBSOLETE) |
1 |
(16ST, 18ST) (includes 24-26, 29) |
|
24 |
272-0340
|
Solenoid valve |
1 |
|
|
25 |
N/A
|
Not available |
1 |
(valve) |
|
26 |
272-0578
|
Spray nozzle |
1 |
|
|
29 |
172-1337
|
90 degree barb 1/4 |
1 |
|
|
33a |
181-1108
|
Solution feed hose |
1 |
(before SN 1984765) |
|
33b |
172-1350
|
10 inch hose |
1 |
(after SN 1984764) |
|
34 |
999-0003
|
Nut 5/8-18 hex jam stainless steel |
1 |
|
|
35 |
272-0606
|
1/8 inch quick connect female |
1 |
|
|
36 |
170-5169
|
Hose clamp SAE #4 |
1 |
|
|
37 |
181-0009
|
45 degree male adapter barb |
1 |
|
|
38 |
999-1131
|
Screw 8-32 x 3/8 pan head phillips thread rolling SS |
2 |
|
|
39 |
272-0607
|
Solution hose assembly |
1 |
(16XP, 18FLX) |
|
40a |
991-8210
|
3-1/2 inch wide standard detailer KIT with fittings |
1 |
(16XP, 18FLX) |
|
40b |
991-8150
|
1/4 inch BH2-61 male nipple (mate to QD80) |
1 |
(for use with 40a) |
|
40c |
991-8177
|
1/4 inch x 1/8 inch male pipe fitting to female |
1 |
(for use with 40a) |
|
41 |
999-0266
|
Washer #8 SAE flat stainless steel |
2 |
|
|
43a |
172-4056
|
90 degree barbed elbow |
1 |
(after December 2007) |
|
43b |
172-4078
|
Barb adapter 1/2 X 3/8 NPT |
1 |
(before December 2007) |
|
44 |
272-8148
|
Barbed tee 3/8 NPT x 1/4 inch |
1 |
(after October 2007) |
|
