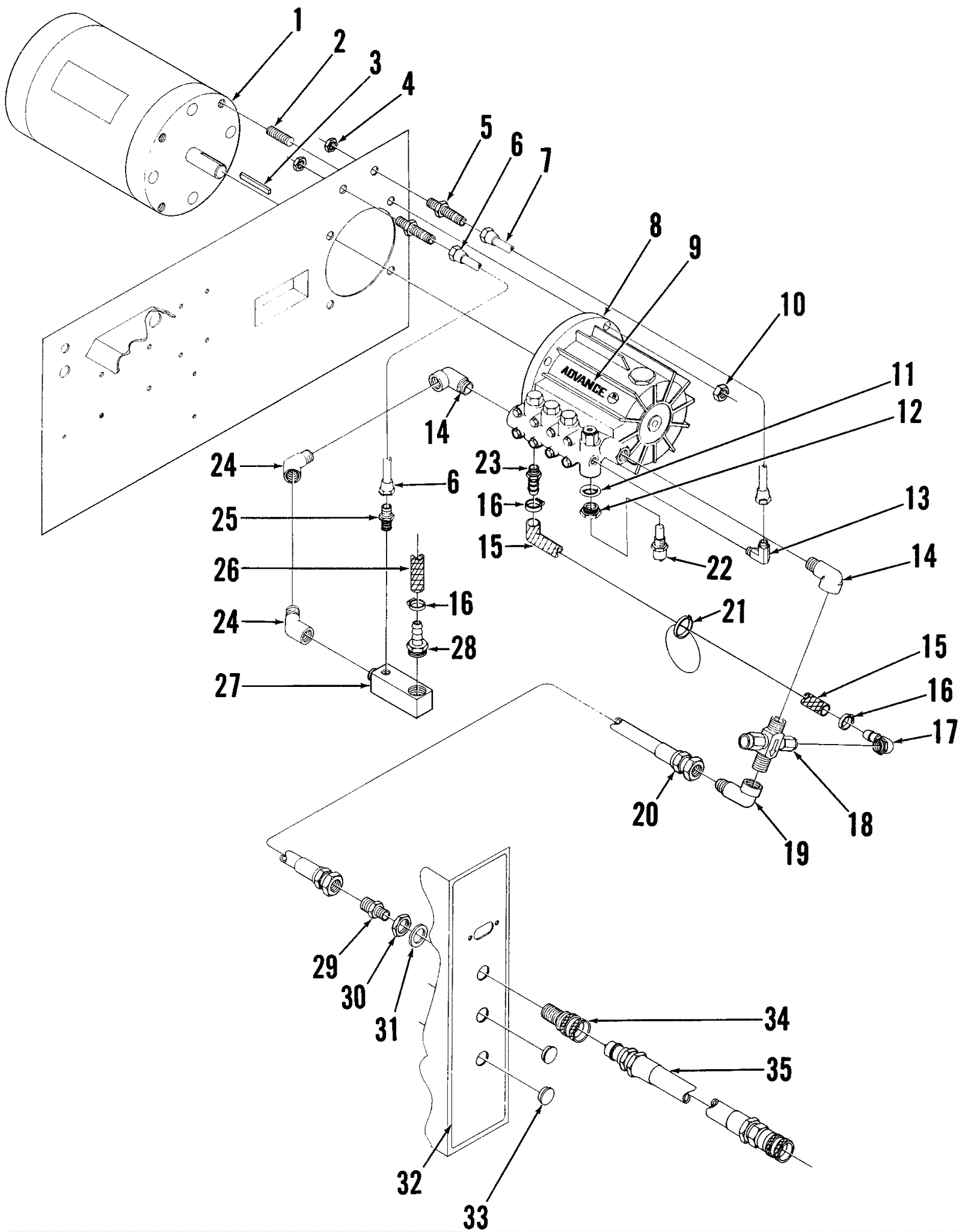

Pump Assembly - A20

#PartDescription ReqNotesAvailability
1 372-0795 Motor (OBSOLETE) 1
2 372-0796 Screw (OBSOLETE) 4
3 N/A Not available 1 (key)
4 372-0797 Nut (OBSOLETE) 2
5 372-0798 Bulkhead union (OBSOLETE) 2
6 372-0799 Tube assembly (OBSOLETE) 1
7 372-0800 Tube assembly (OBSOLETE) 1
8 372-0801 Pump (OBSOLETE) 1
9 372-0802 Advance decal (OBSOLETE) 1
10 272-1467 Nut 3/8-16 hex lock 4
11 372-0803 O-ring (OBSOLETE) 1
12 372-0804 Brass bushing (OBSOLETE) 1
13 170-5171 Male elbow 1
14 172-4075 90 degree street elbow 2
15 372-0805 Hose (OBSOLETE) 1
16 172-8494 #6 hose clamp SAE 4
17 372-0806 Elbow barb (OBSOLETE) 1
18 372-0807 Unloader valve (OBSOLETE) 1
19 372-0808 Female elbow (OBSOLETE) 1
20 372-0809 Pressure hose (OBSOLETE) 1
21 997-2102 Cable tie 1
22 372-0810 Thermostat (OBSOLETE) 1
23 272-0193 Barb adapter 1
24 372-0811 Street elbow (OBSOLETE) 2
25 372-0812 Male connector (OBSOLETE) 1
26 372-0738 Hose (OBSOLETE) 1
27 372-0813 Manifold block (OBSOLETE) 1
28 172-2749 Barb 1
29 372-0814 Male connector (OBSOLETE) 1
31 999-0630 Washer 3/4 SAE flat 1
32 372-0719 Plumbing and electrical decal (OBSOLETE) 1
33 172-1803 Plug 2
34 372-0816 Coupler (OBSOLETE) 3
35 372-0817 High pressure hose (OBSOLETE) 1
